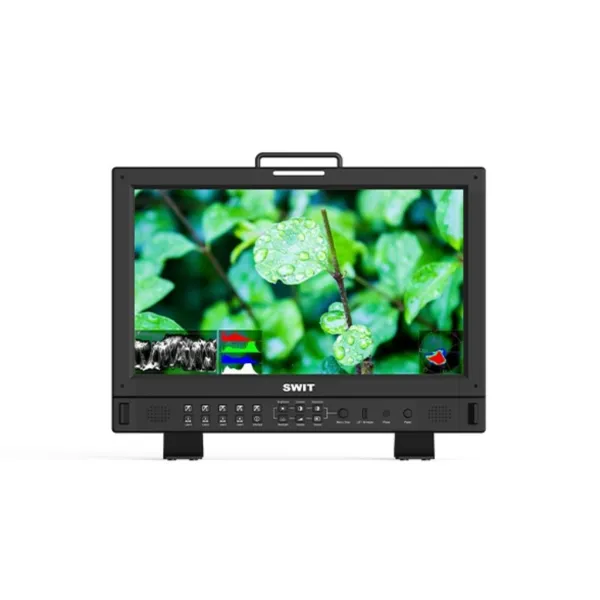

BM-U175EAN  6948193507873

17.3 inch LCD panel, 3840x2160 resolution
12GSDI 4-in 4-out, 8K ready input, HDMI2.0 input
12GSDI via SFP fiber input (optional)
ST2110 IP via SFP fiber input (optional)
3DLUT Self-calibration without PC
Audio / Video 0 latency for lip sync
EOTF HDR HLG / PQ / S-log3
Automatic setting of payload ID
Integrated Delog LUT multi-camera
User 3DLUT upload via USB
Waveform / Vector / Histogram
Focus Assist / False Color / Zebra
16-channel / Lissajous audio meters
Remote control of the IP web server
TSL UMD display and TALLY text
USB firmware update
19 inch rack mountable, 7U height

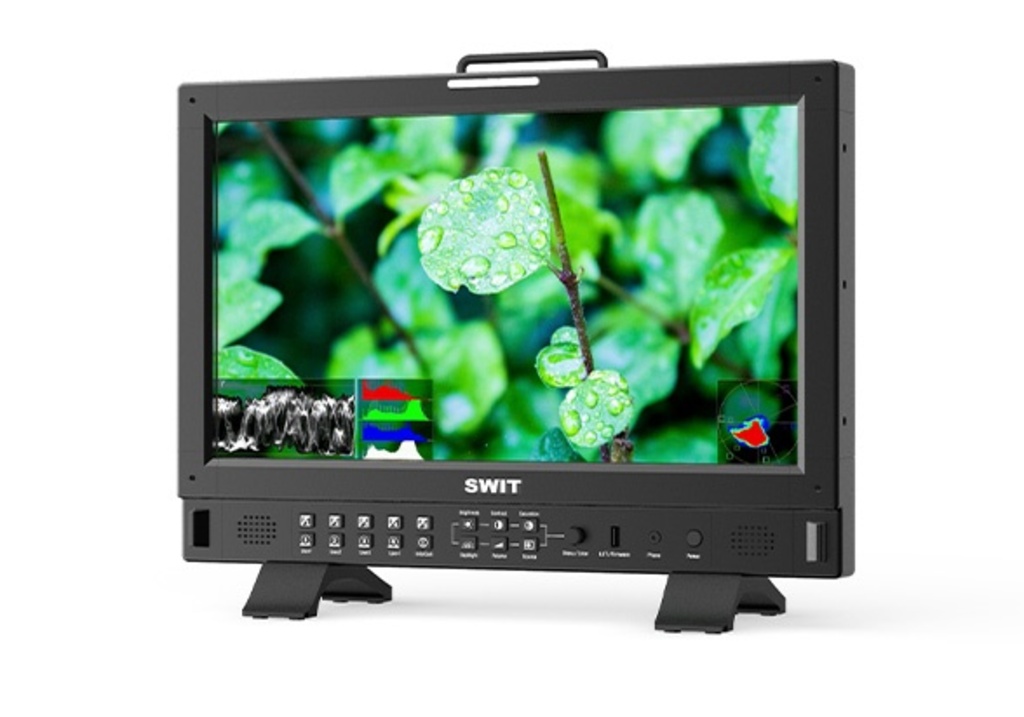

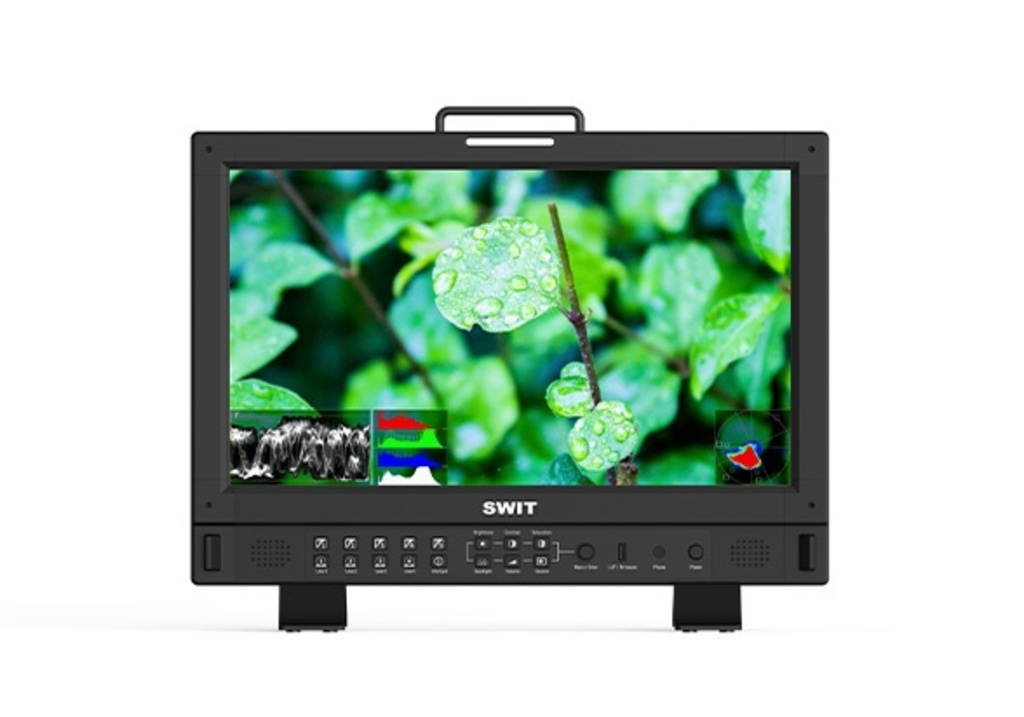

BM-U175 adopts 17.3 inch 8bit + 2FRC LCD panel, 3840 × 2160 UHD resolution, 300 nit LED backlight, 800: 1 contrast, DCI-P3 91.5% color gamut. The viewing angle is H178 ° / V178 °.

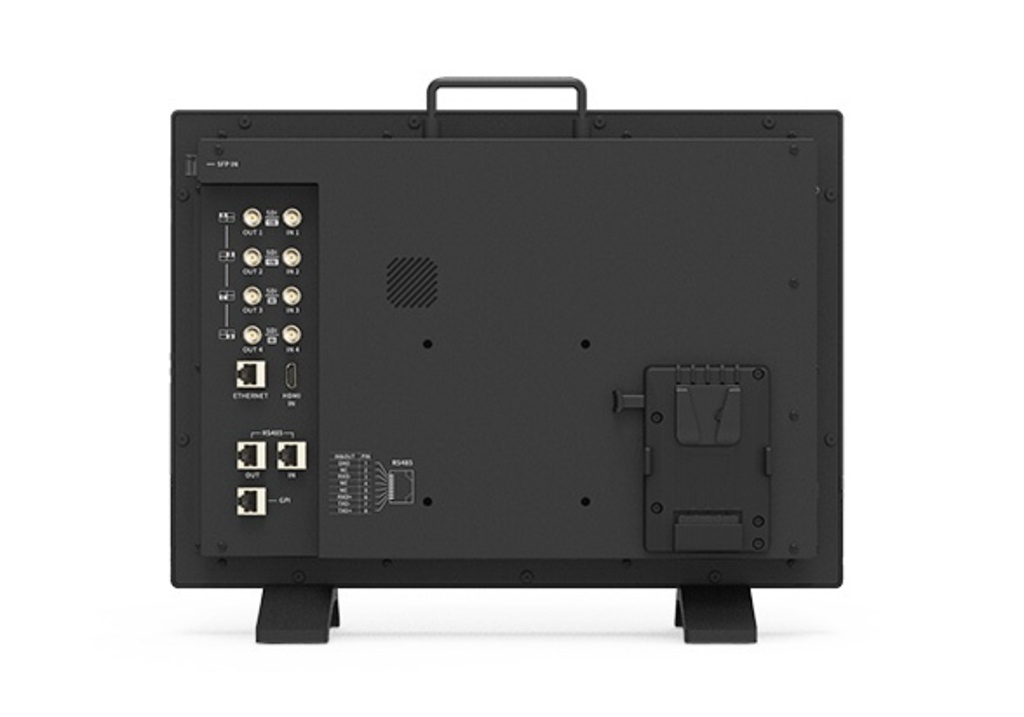

Multiple 4K / 8K interfaces

12GSDI 4-in 4-out, supports:
Single link 4K, Quad link 4K and Quad link 8K
HDMI 2.0 (4K60P)
12GSDI via SFP fiber (optional)
ST2110 IP via SFP fiber (optional)

* Quadlink 4K / 8K supports both Quad mode and 2SI interleave mode,
* SFP Fiber Optic Adapter is optional purchased.

Viewing Modes

Supports single link 4K inputs including 12GSDI, HDMI2.0 or 12GSDI via SFP and Quad link 4x 3GSDI 4K or Quad link 4x 12GSDI 8K inputs. You can also input 4 independent 4K videos for multiview, supports 12G / 6G / 3G / HD- SDI and HDMI 2.0 / 1.4 / 1.3 mixed format input and waveform selection, vector, audio meters, EOTF, color gamut for each entrance.

4K single link inputs - 12GSDI, HDMI2.0, SFP
Quad link 4K inputs - 4x 3GSDI (SQD or 2SI) Inputs
quad link 8K - 4x 12GSDI (SQD or 2SI)
Multiview mixed inputs - 4 independent video inputs of 12G / 6G / 3G / HD-SDI or mixed HDMI
EOTF HDR / SDR

BM-U175 provides HLG (Hybrid Log Gamma), Dolby Vision PQ, SONY S-Log3 HDR and Gamma 1.0 / 1.8 / 2.2 / 2.4 / 2.6 SDR EOTF and color gamut selection from native LCD, BT.709, DCI-P3 and BT.2020.

Automatic payload ID setting

It supports input video payload ID identification, and the monitor will automatically set EOTF H
