VITTORIA 64 DD - Glensound
Audio over IP > DANTE
₦ 9,467,293.88
VAT Included
VAT Included
Adcom - Glensound
New
Available in 17 days
The Vittoria provides a bridge between two internal and separate Dante networks. These networks are completely isolated from each other with 100% network security, providing a complete network firewall. Vittoria links 32 channels from each network directly in DSP, allowing the passing of bi-directional audio but with complete isolation and security from each separate network.
As each network is isolated, they can operate asynchronously and at different sample rates from each other without any problems. Each network can operate at sample rates from 44.1 kHz up to 192kHz.

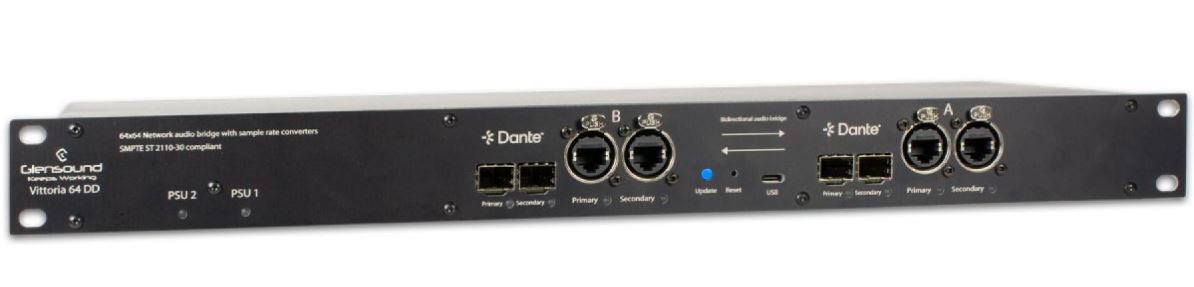

Two Dante Interfaces
The Vittoria has two Dante network audio interfaces. Each interface has:
- Primary connection using copper Ethernet via RJ45 EtherCON socket
- Secondary connection using copper Ethernet via RJ45 EtherCON socket
- Primary fibre connection via SFP module slot
- Secondary fibre connection via SFP module slot
The two network interfaces will typically be connected onto different networks and the Vittoria will ‘bridge' between them.
Independently Operated Networks
As each side of the Vittoria is independent and not connected across a network, they can have independent settings.
For example, if the Vittoria is in OB truck running its own network connection at 48kHz to sync with the other devices on board the truck, but needs to link with an external network in a local studio that is operating at 192kHz, then that is no problem for the Vittoria. It will bridge the two network settings and audio will flow!
If you have a work flow that includes AES67 and separate Dante networks, then the Vittoria can be used to bridge between them, with one network interface operating in Dante mode, and the other operating in AES67 mode.
Each network on the Vittoria will operate between sample rates of 44.1-192kHz.
32 Channels
The Vittoria features a Dante Brooklyn II module in each interface and has 32 channels. Whatever you input on the primary interface is output on the secondary interface, and vice versa, up to 32 channels.
Network
As each network is isolated, they can operate asynchronously and at different sample rates from each other without any problems. Each network can operate at sample rates from 44.1 kHz up to 192kHz.
Two Dante Interfaces
The Vittoria has two Dante network audio interfaces. Each interface has:
- Primary connection using copper Ethernet via RJ45 EtherCON socket
- Secondary connection using copper Ethernet via RJ45 EtherCON socket
- Primary fibre connection via SFP module slot
- Secondary fibre connection via SFP module slot
The two network interfaces will typically be connected onto different networks and the Vittoria will ‘bridge' between them.
Independently Operated Networks
As each side of the Vittoria is independent and not connected across a network, they can have independent settings.
For example, if the Vittoria is in OB truck running its own network connection at 48kHz to sync with the other devices on board the truck, but needs to link with an external network in a local studio that is operating at 192kHz, then that is no problem for the Vittoria. It will bridge the two network settings and audio will flow!
If you have a work flow that includes AES67 and separate Dante networks, then the Vittoria can be used to bridge between them, with one network interface operating in Dante mode, and the other operating in AES67 mode.
Each network on the Vittoria will operate between sample rates of 44.1-192kHz.
32 Channels
The Vittoria features a Dante Brooklyn II module in each interface and has 32 channels. Whatever you input on the primary interface is output on the secondary interface, and vice versa, up to 32 channels.
Network
