Model 5482-02 Dante Bridge - Generic

Audio over IP > DANTE
₦ 6,292,258.80
VAT Included
Adcom -
New
Available in 10 days
QUOTE
BUY
The Model 5482 Dante Bridge provides a high-performance means of interconnecting ("bridging") Dante® audio-over-Ethernet channels associated with two independent local-area-networks (LANs) or Dante domains. The unit is compatible with the Dante Domain Manager™ (DDM) software application and is complaint with the AES67 technical standard. The Model 5482 is available in two versions: the Model 5482-01 allows up to 32 audio channels to pass in each direction, while the Model 5482-02 allows up to 64 audio channels. Internal sample rate conversion (SRC) capability provides sample rate, bit-depth, and timing conversion to ensure that audio signal integrity is maintained.

Key Features

Dante audio-over-Ethernet technology with AES67 and DDM support
Two versions available: one with up to 32 channels and one with up to 64 channels in each direction
44.1, 48, 88.2, and 96 kHz sample rate support
Integrated Sample-Rate-Conversion (SRC) capability
Multiple Gigabit Ethernet interfaces allow Switched or Redundant Dante operation
AC mains and DC powering

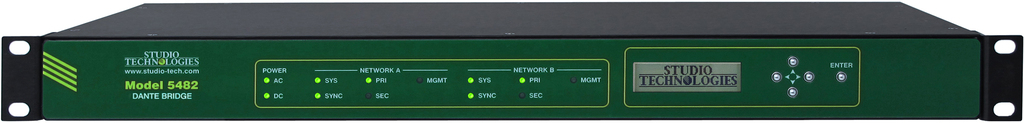

Multiple status LEDs and graphics display
Lightweight enclosure, single rack-space (1U) mounting
Applications:
Interconnects up to 64 channels in each direction between two independent Dante audio-over-Ethernet networks. Also supports AES67-2018 applications. Integrated sample-rate-conversion (SRC) functions ensure that timing of independent networks is maintained.

Versions Available:
Model 5482-01: supports up to 32 channels (44.1 or 48 kHz sample rates) and 16 channels (88.2 or 96 kHz sample rates)
Model 5482-02: supports up to 64 channels (44.1 or 48 kHz sample rates) and 32 channels (88.2 or 96 kHz sample rates)

Network Audio Technology (each Network Interface):
Type: Dante audio-over-Ethernet
AES67-2018 Support: yes
Dante Domain Manager (DDM) Support: yes
Ethernet Interface Configuration: switched or redundant
Sample Rates: 44.1, 48, 88.2, or 96 kHz
Pull-Up/Down Support: yes
Bit Depth: up to 24 bits
Number of Transmitter (Output) Channels-M5482-01: 32 (44.1 or 48 kHz sample rates), 16 (88.2 or 96 kHz sample rates)
Number of Transmitter (Output) Channels-M5482-02: 64 (44.1 or 48 kHz sample rates), 32 (88.2 or 96 kHz sample rates)
Number of Receiver (Input) Channels-M5482-01: 32 (44.1 or 48 kHz sample rates), 16 (88.2 or 96 kHz sample rates)
Number of Receiver (Input) Channels-M5482-02: 64 (44.1 or 48 kHz sample rates), 32 (88.2 or 96 kHz sample rates)
Dante Audio Flows: 32 transmitter, 32 receiver

Network Interfaces: 2

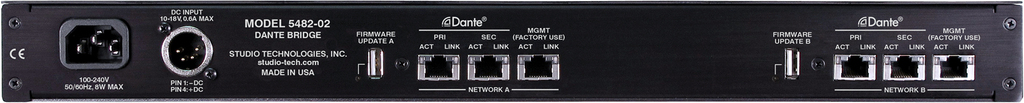

Physical Ethernet Connections per Interface: 3, Dante Primary, Dante Secondary, and Management
Ethernet Connection Type: 1000BASE-T Gigabit Ethernet (GigE) per IEEE 802.3ab (10 and 100 Mb/s not supported)
Ethernet Connection NIC Status LEDs: one link and one activity for each Ethernet connection

Audio Performance:
Type: fully digital paths between network interfaces (by way of sample-rate-converter (SRC) functions)
Dynamic Range: 147 dB at 48 kHz sample rate, 148 at 96 kHz sample rate, A-weighted
Distortion (THD+N): -140 dB at 48 kHz sample rate, -143 dB at 96 kHz sample rate, measured at -1 dBFS, 1 kHz
Internal Digital Audio Processing: 32 bits
Input-to-
