Intercoms > DANTE Intercom
₦ 5,570,051.76
VAT Included
VAT Included
Adcom - Glensound
New
Available in 10 days

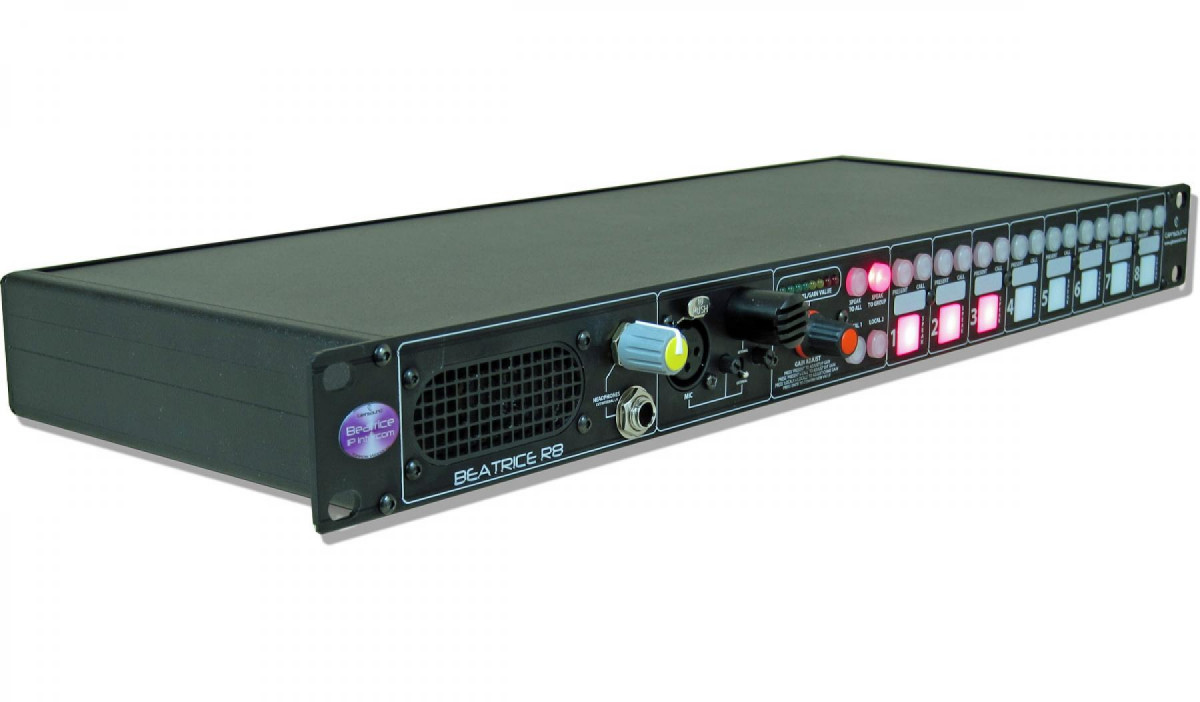

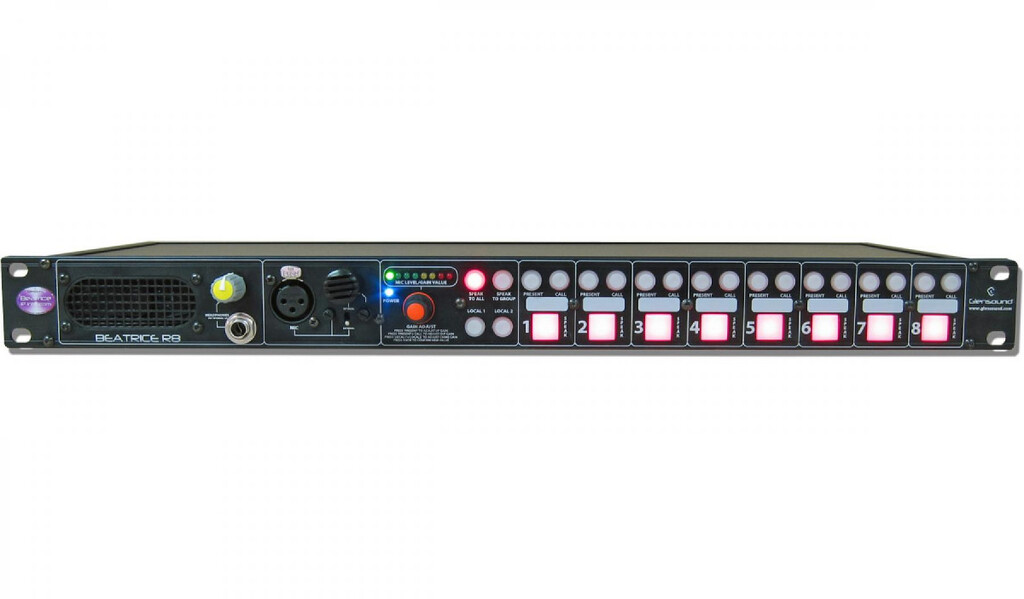

Glensound 8 Channel Network Audio Rackmount Intercom
8 Channels Of Intercom
One single user connected to the unit can listen to and communicate with 8 separate locations on the network.
Depending upon how the Dante network has been routed the incoming audio circuits and outgoing circuits can be different locations.
2 Racks make 16 Channels
Two Beatrice R8 racks can be joined together by just a pair of digital S/PDIF cables making a fully featured 2RU 16 channel intercom unit, with groups, mics, speakers and other resources shared between the 2 units.
Dante Routing & Partyline
Audio routing to/ from other devices is set up using Dante controller which allows for point to multipoint routing on outgoing circuits (but only 1 single incoming circuit for each of the 8 channels).
Therefore we've included an inbuilt fixed ratio 14 input 19 output mixer matrix with inputs and outputs connected directly to the Dante / AES67 network which allows for setting up partyline and complex group circuits.
Onboard Mic & External Mic Input
A good quality, clear sounding microphone amplifier, designed for communication purposes, is fitted which also has the benefit of a compressor/ limiter circuit to help keep levels and intelligibility consistent even when the operator gets overly excited.
This microphone amp has two microphone sources, either the inbuilt front panel mounted electret capsule which provides good voice intelligibility from normal working distances, or a balanced XLR input for connecting external gooseneck microphones.
Twelve Volt Phantom power is also available and can be turned on/ off as required via an internal link.
Mains or PoE Powered
An inbuilt wide range switch mode mains power supply is fitted for powering the Beatrice R8.
It is terminated with a standard IEC plug, making it easy to plug in wherever you are in the World.
The unit can also be powered via the Ethernet cable by standard PoE (Power over Ethernet) on either of the copper Ethernet po
