ATW-1702 - AudiotechnicaEAN  4961310127688

Microphones Wireless > Body Handheld
EAN:4961310127688
₦ 557,105.61
VAT Included
Adcom - Audiotechnica
New
Available in 10 days
The Audio-Technica System 10 ATW-1702 is a digital wireless microphone system specifically engineered to meet the audio needs of vloggers, mobile journalists, and videographers. It provides an easy-to-operate solution with sophisticated technology to ensure reliability and high-quality audio for projects ranging from YouTube and wedding videos to corporate spots and interviews.

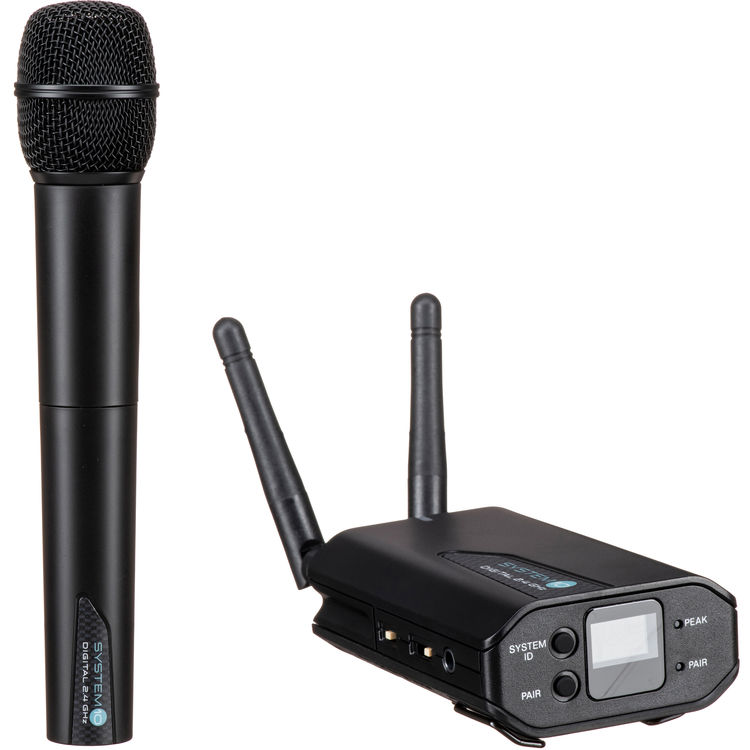

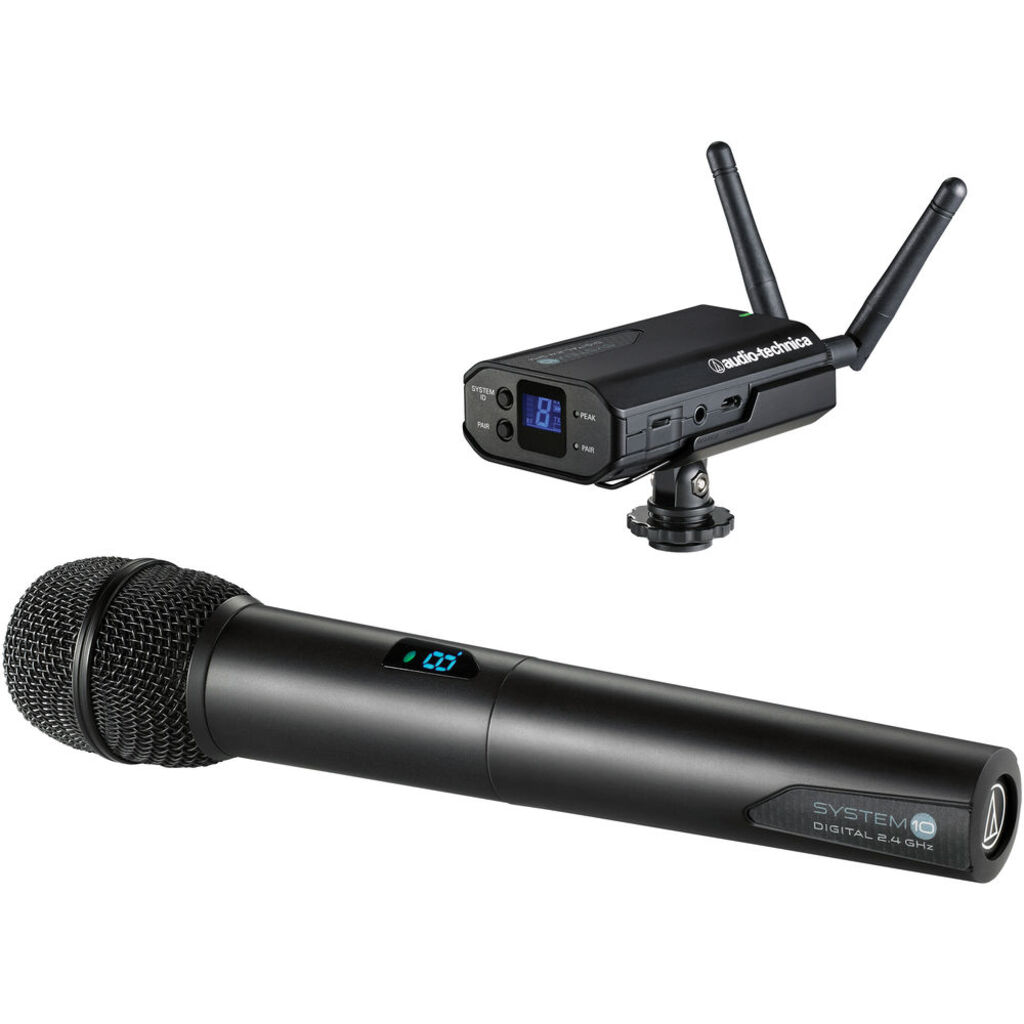

The ATW-1702 features a dynamic handheld transmitter/microphone with a hypercardioid pickup pattern for man-on-the-street interviews in noisy environments, along with a camera-mount receiver that connects to your DSLR or mirrorless camera via the included 3.5mm output cable. It operates anywhere in the world, transmitting 24-bit/48 kHz audio in the 2.4 GHz spectrum, well away from potential TV and radio interference.

This peer-to-peer system delivers three levels of diversity assurance—frequency, time, and space—for optimal performance at a range up to 100'. Just power up the components, and the receiver automatically seeks out a clean frequency and pairs up with the transmitter, saving you the hassle of scanning and syncing before a shoot. Up to eight wireless mics may be used on set at once.

Triple Diversity Technology for Reliable Performance
Space Diversity: The receiver compares the signal showing up at its two antennas and chooses the strongest one.
Time Diversity: The transmitter sends the digital signal in two imperceptibly different time slots and compares the two.
Frequency Diversity: The digital audio is sent over two different frequencies at the same time and the system chooses the cleaner one.
For optimal performance, users are encouraged to maintain as direct a line of sight as possible between the transmitter and receiver.
Rich with Features and Ready for Action
The ATW-T1002 dynamic handheld microphone delivers a natural, broadcast-quality sound optimized for speech intelligibility. Its hypercardioid polar pattern helps to reject unwanted background sound, making it ideal in loud environments such as trade-
System
Wireless Transmission : Digital 2.4 GHz
Included Transmitters : 1 x Handheld
Diversity Frequency, Time & Space Diversity
RF Frequency Band 2400 to 2483.5 MHz
Max Operating Range 100' / 30.5 m (Line of Sight)
Max Systems per Setup 8
Sample Rate/Resolution 48 kHz / 24-Bit
Dynamic Range >109 dBA

Receiver
Form Factor Camera-Mount
Mounting Options Belt Clip, Shoe-Mount (with Included Hardware)
Antenna 2 x External, Detachable
Number of Audio Channels 1
Audio I/O 1 x 1/8" / 3.5 mm TRS Female Balanced/Unbalanced Output
1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output
Audio Output Level 1/8" / 3.5 mm Output:
+6 dBV (Balanced)
1/8" / 3.5 mm Output:
0 dBV (Unbalanced)
Frequency Response 20 Hz to 20 kHz (Dependent on Mic)
USB Port 1 x Micro-USB (Bus Power, Charging)
Power Requirements Battery, USB Bus Power
Battery Type 1 x Built-In Rechargeable (Not Replaceable)
Internal Battery Capacity 1460 mAh
Battery Charging Time 4 Hours
Approx. Battery Life 12 Hours (Lithium Rechargeable)
Display & Indicators 1 x LCD (Battery Status, Channel, Mute, RF Level)
Housing: Plastic
Operating Temperature: 32 to 104°F / 0 to 40°C
Dimensions : 2.2 x 3.6 x 1.1" / 55.9 x 91.4 x 27.9 mm
Weight : 3.7 oz / 105.0 g

Transmitter
Form Factor : Handheld
RF Output Power 10 mW
Audio I/O: None
Muting: Off/On Switch
Frequency Response: 20 Hz to 20 kHz
Antenna : 1 x Internal, Fixed (Handheld)
Power Requirements : Battery
Battery Type : 2 x AA (Not Included)
Approx. Battery Life: 7 Hours (Alkaline)
Display & Indicators: 1 x LCD (Channel)
Housing : Plastic
Dimensions 10.0 x 2.0" / 254.8 x 50.0 mm
Weight 9.9 oz / 281.0 g

Microphone
Form Factor Handheld Capsule
Sound Field Mono
Transducer Dynamic
Polar Pattern Hypercardioid
Packaging Info
Package Weight 2.075 lb
Box Dimensions (LxWxH) 14.0 x 7.05 x 3.3"
