EW-DX SK/SKM-S BASE SET (Q1-9) - SennheiserEAN  4044155266849

Microphones Wireless > Table Dual Channel
EAN:4044155266849
₦ 4,042,697.68
VAT Included
Adcom - Sennheiser
New
Available in 15 days
Sennheiser SET Dual-Channel Digital Wireless System with Bodypack & Handheld Transmitters, No Mics (Q1-9: 470 to 550 MHz) - 509462

Rigorously engineered to meet the needs of demanding professionals working in business and educational settings, houses of worship, or on stage, the Sennheiser EW-DX SK-SKM-S BASE SET is a dual-channel digital UHF wireless system with an impressive feature set designed to simplify your workflow while delivering uncompromising audio quality.

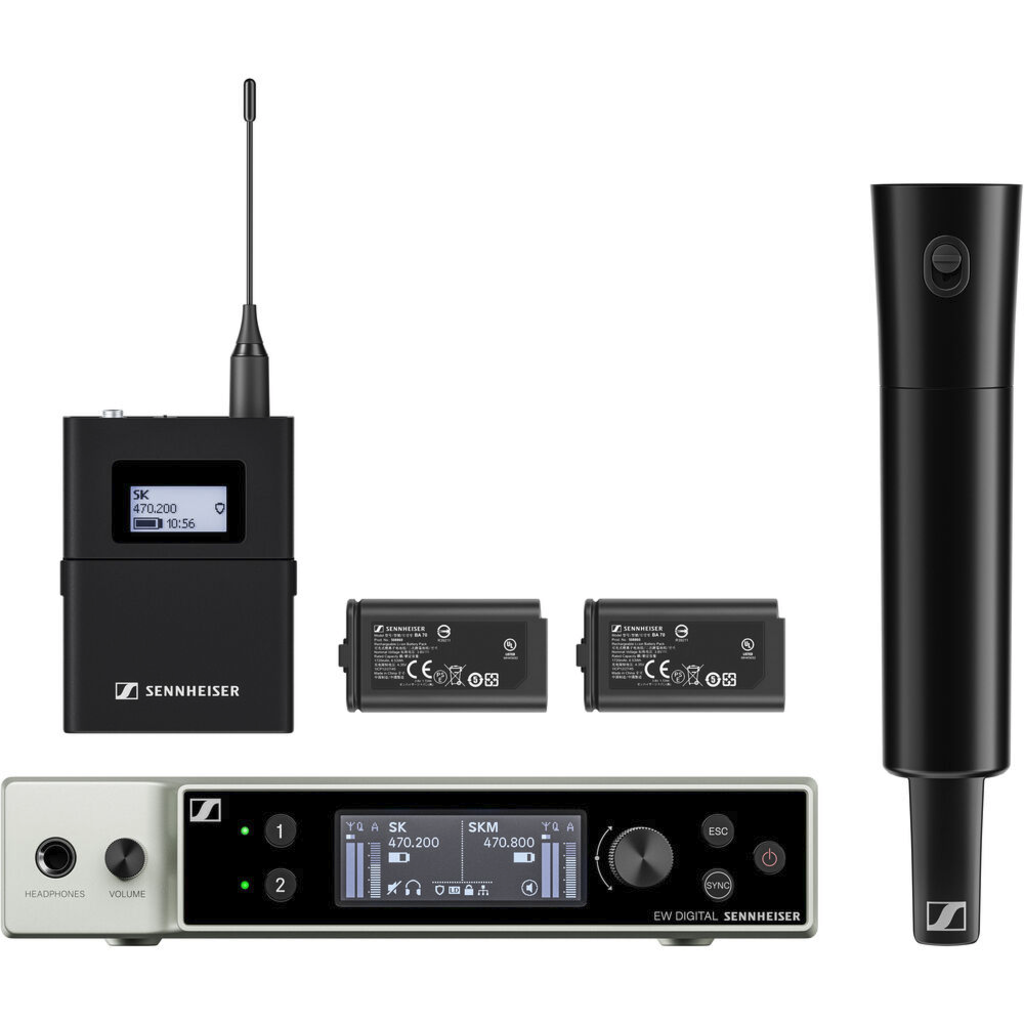

This configuration includes a 1/2-rack, dual-channel receiver, one bodypack transmitter without a lavalier, and one handheld transmitter without a mic capsule, so you can choose your preferred lav mic and mic capsule for the application.

With a remarkable 134 dB dynamic range, the transmitters can handle just about any input level you throw at them.
The wide 80 MHz tuning range, intelligent switching diversity, auto-scan, equidistant tuning grid, and Link Density mode work to provide rock-solid wireless performance and massive channel counts, even in challenging RF environments.
Bluetooth capabilities allow you to remotely sync components and change settings from your phone using the Smart Assist app, while Sennheiser's Control Cockpit and Wireless Systems Manager software provide computer-based control for more extensive networked setups.
The EW-DX is backward-compatible with EW-D components.

° Rock-Solid Wireless Audio with Professional Digital Sound & More Mic Channels
- The UHF transmission greatly enhances range (up to 330') and the wide 80 MHz bandwidth gives you the ability to find a clean channel from 3200 available frequencies.
- Intelligent Switching Diversity compares incoming signals on two independent antennas and receiver circuits to ensure optimal wireless quality. The receiver switches between antennas only during header data as to never affect the audio information.
- The equidistant tuning grid removes the need for frequency coordination and enables you to operate up to 134 mic channels simultaneously.
System
Wireless Technology: Digital UHF
Number of RF Channel Frequencies: 3200
Included Transmitters:
- 1 x Bodypack
- 1 x Handheld
Diversity: Intelligent Switching Diversity
RF Frequency Band: Q1-9: 470.2 to 550 MHz
RF Bandwidth: 80 MHz
Frequency Step Size: 25 kHz
RF Channel Scanning: Auto-Scan
Max Operating Range: 328.1' / 100 m (Line of Sight)
Max Transmitters per Band: 269
Built-In Recorder: No
Mobile App Compatible:
Yes: Android & iOS
*As of September, 2022: Check with manufacturer for the most up-to-date compatibility
Bluetooth: 5.1 LE
Bluetooth Operating Distance: 120' / 36.6 m (Transmitter Sync, App Control)
Sample Rate/Resolution: 24-Bit
Latency: 1.9 ms
Dynamic Range: 134 dB
Encryption: AES 256

Receiver
Receiver Type: Tabletop / Rackmount
Mounting Options: Rackmount (with Included Hardware)
Rackmount Size: 1 RU (1/2 Rack)
Antenna: 2 x 1/4 Wave Rod, BNC (Rear-Mount)
Number of Audio Channels: 2

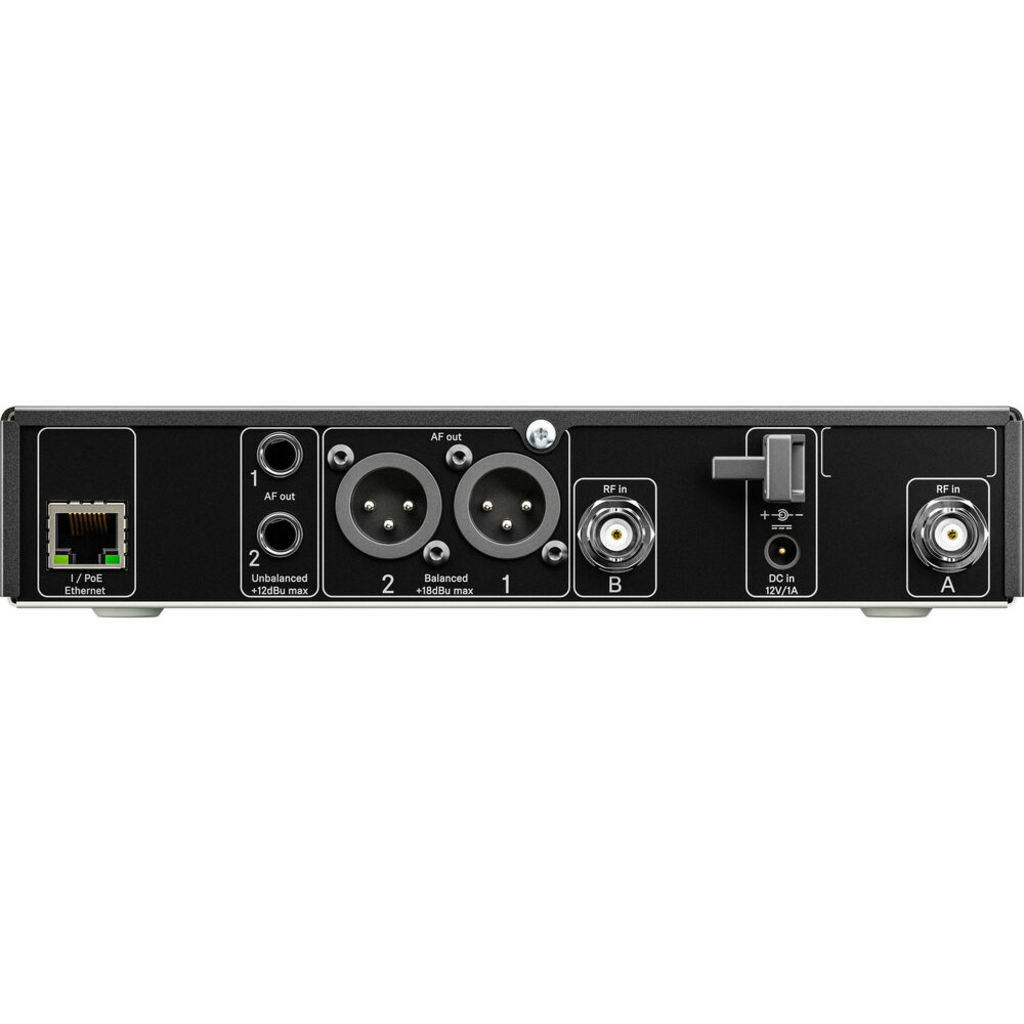

Audio I/O:
- 2 x XLR 3-Pin Male Balanced Output
- 2 x 1/4" TS Female Unbalanced Output
Audio Output Level:
° +18 dBu (Max)
° +12 dBu (Max)
Frequency Response: 20 Hz to 20 kHz +3 dB
Network I/O: 1 x RJ45
Word Clock I/O: No
USB/Lightning Connectivity: No
Standalone Audio Interface Capable: No
RF Output Power: 10 mW (EIRP)
Power Requirements: AC/DC Power Adapter, PoE
AC/DC Power Adapter: 11 to 13 VDC (Included)
DC Input Power: 12 VDC
AC Input Power: 100 to 240 VAC, 50 / 60 Hz
Display & Indicators: 1 x OLED (AF Level, Channel, Frequency, Output Level, RF Level, Transmitter Battery Status)
Housing: Metal
Operating Temperature: 14 to 131°F / -10 to 55°C
Operating Humidity: 5 to 95%
Dimensions: 8.3 x 1.7 x 7.4" / 212 x 44 x 189 mm
Weight: 2.2 lb / 1 kg (without Antenna)

Sennheiser EW-DX SK-SKM-S BASE SET Dual-Channel Digital Wireless System with Bodypack & Handheld Transmitters, No Mics (Q1-9: 470 to 550 MHz)

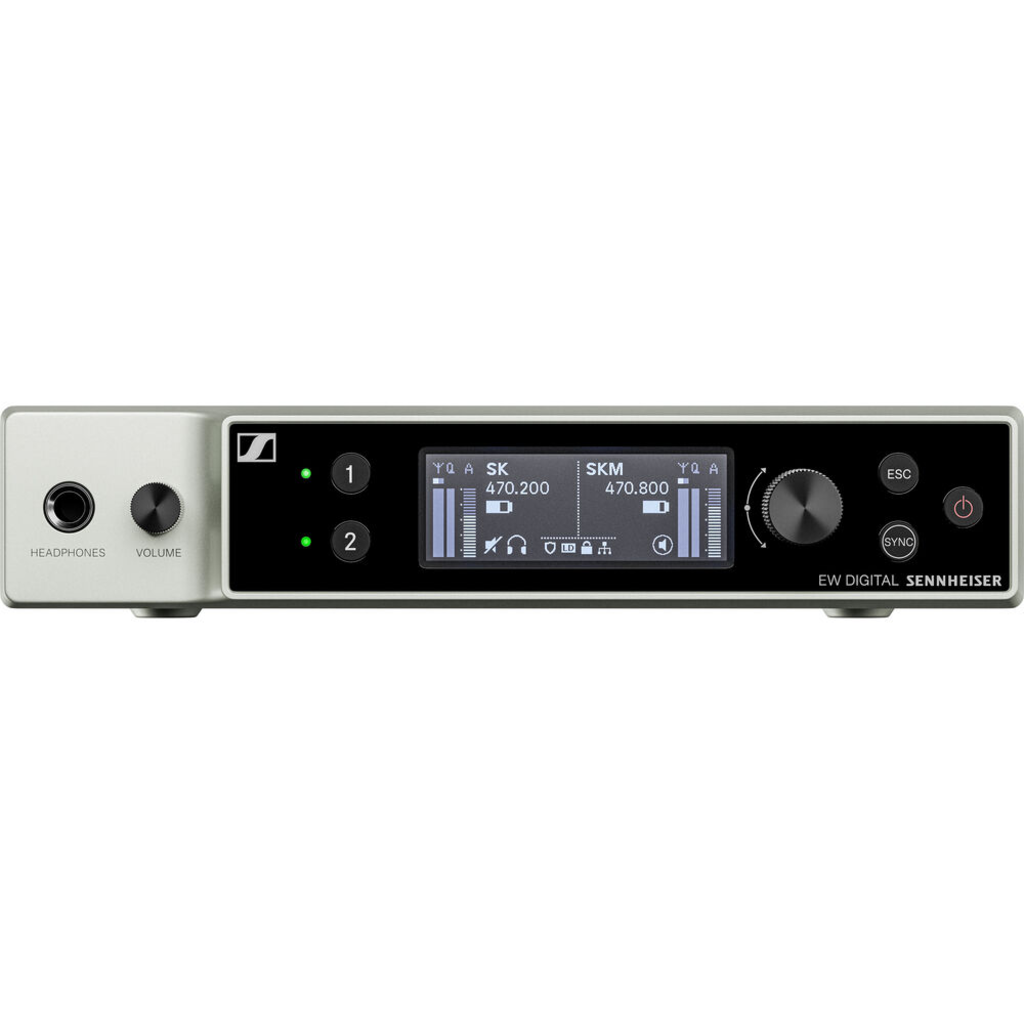

Sennheiser EW-DX EM 2 Two-Channel Digital Rackmount Receiver (Q1-9: 470 to 550 MHz)

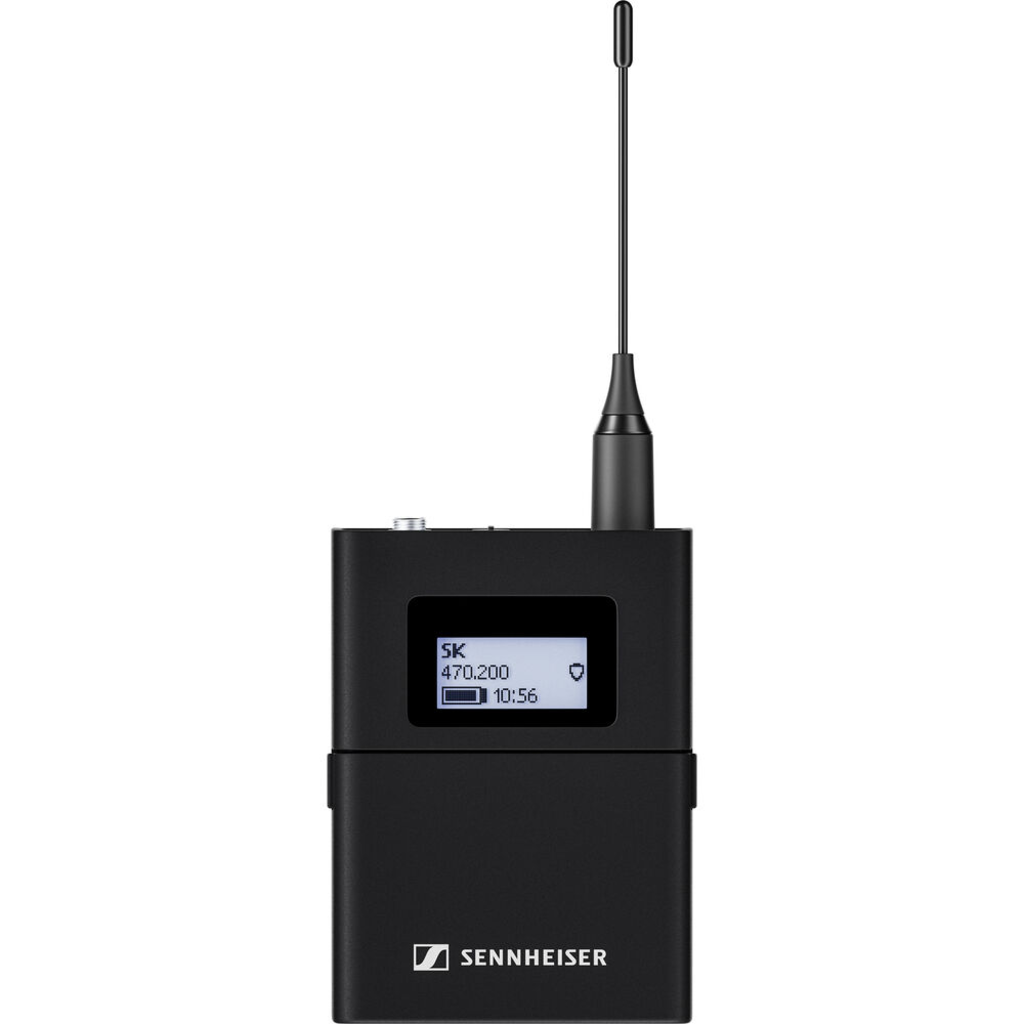

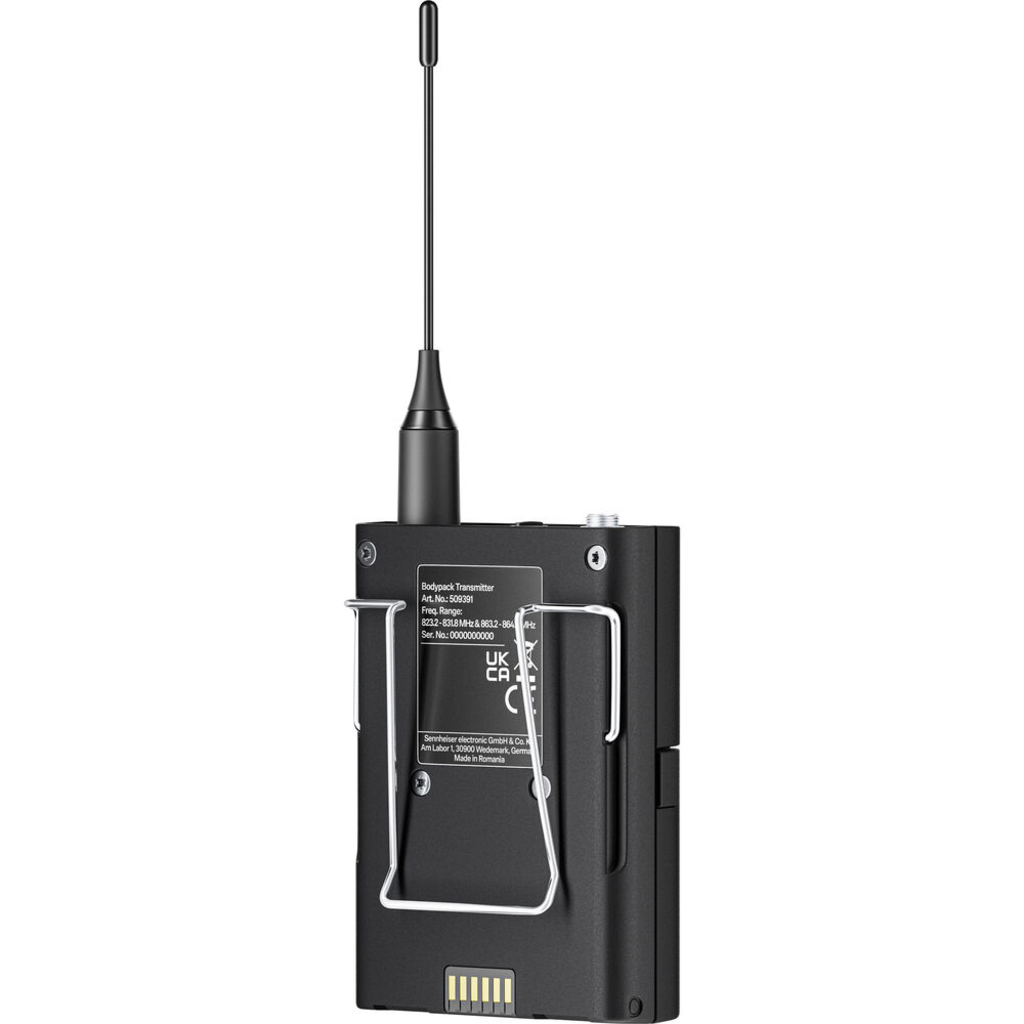

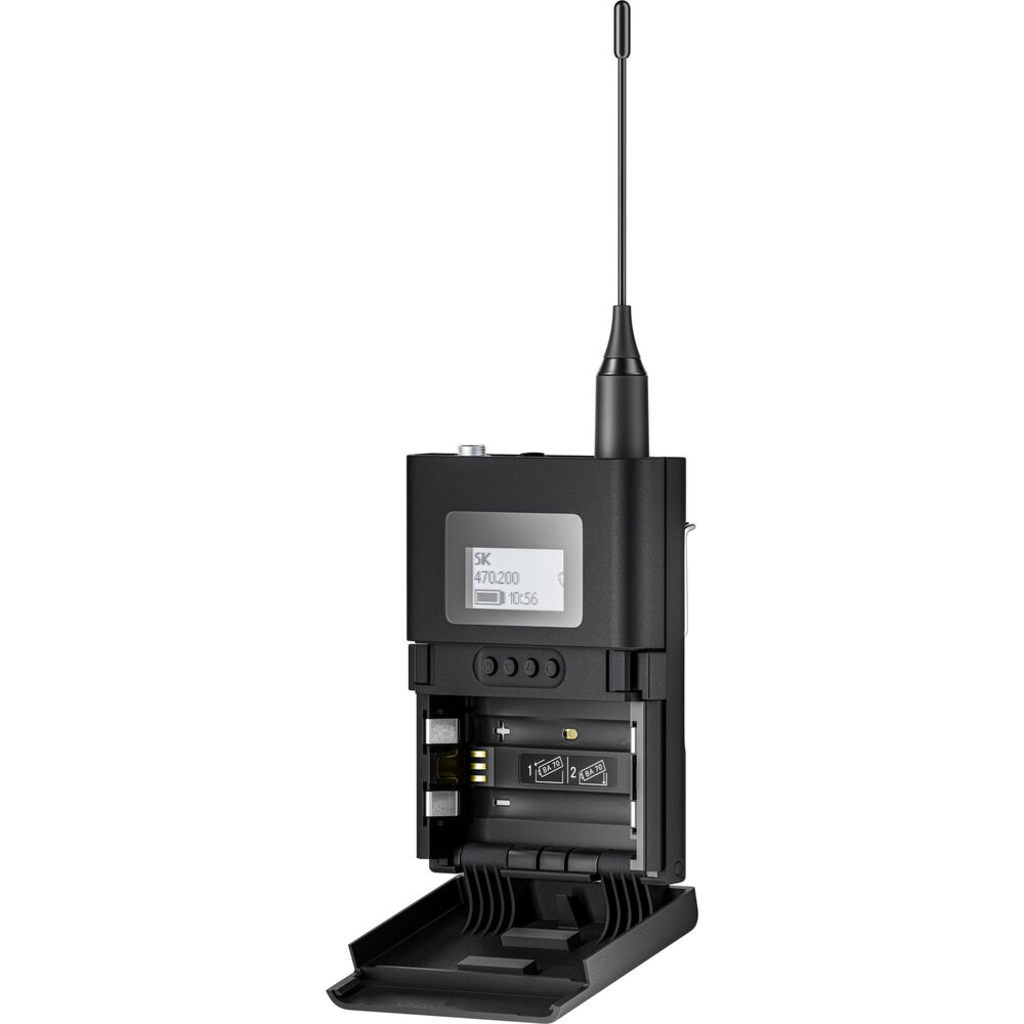

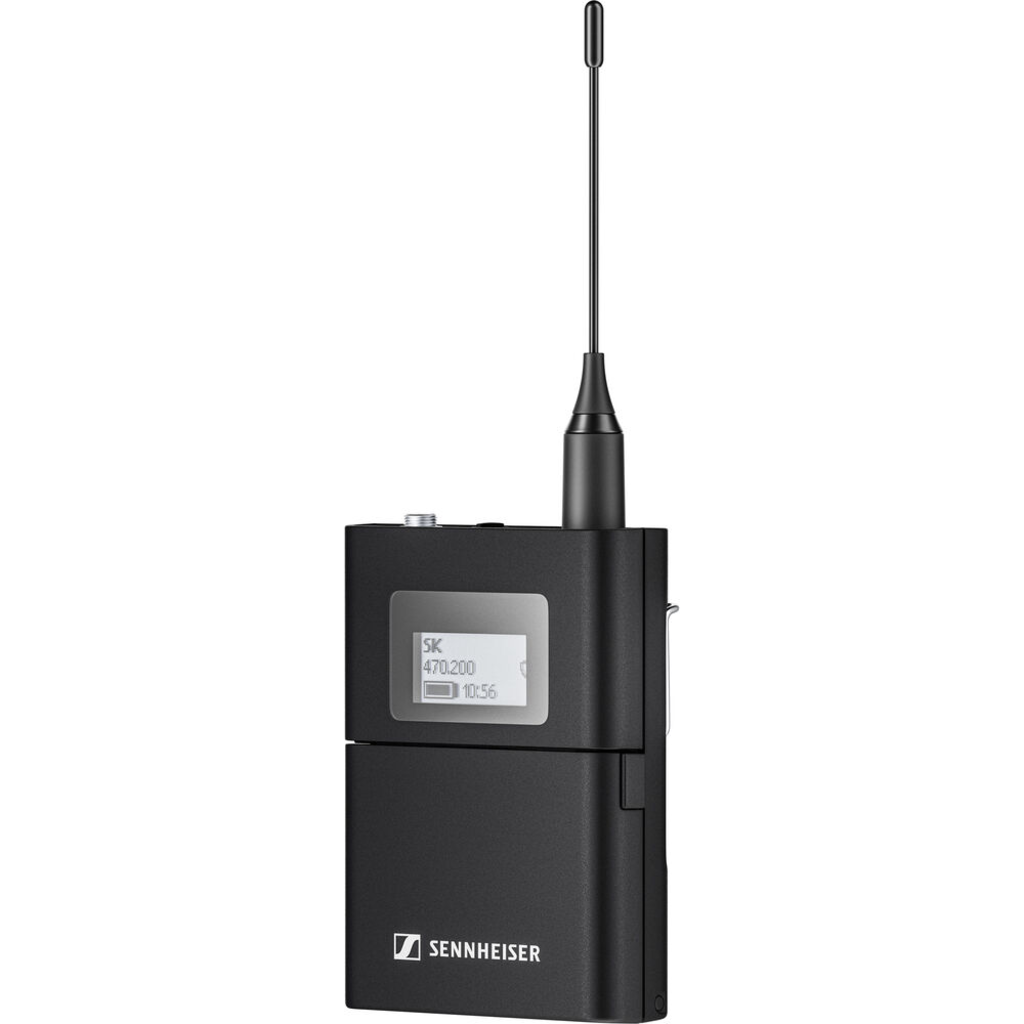

Sennheiser EW-DX SK Digital Wireless Bodypack Transmitter with Locking 3.5mm Connector (Q1-9: 470 to 550 MHz)

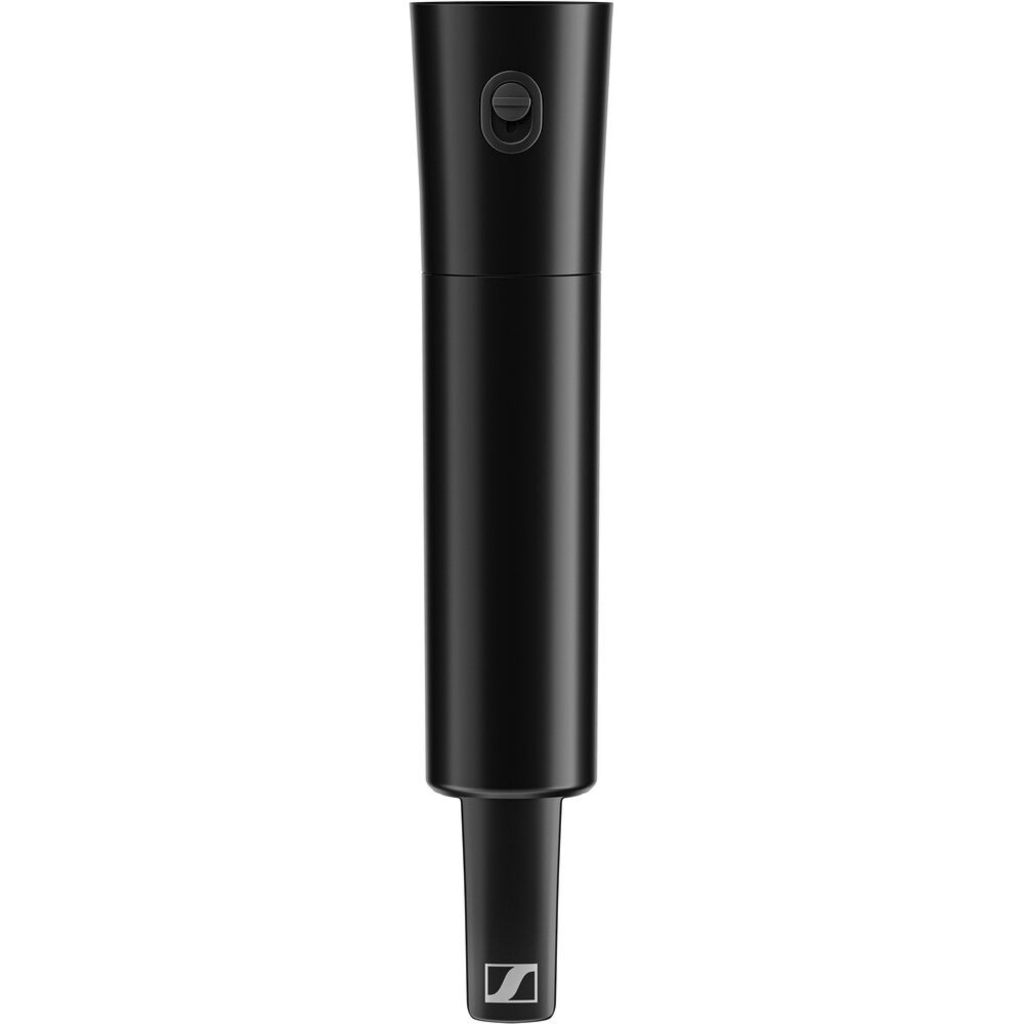

Sennheiser EW-DX SKM-S Digital Wireless Handheld Transmitter with Mute Switch, No Mic Capsule (Q1-9: 470 to 550 MHz)
Sennheiser MZQ 1 Clip for SKM Wireless Handheld Microphones

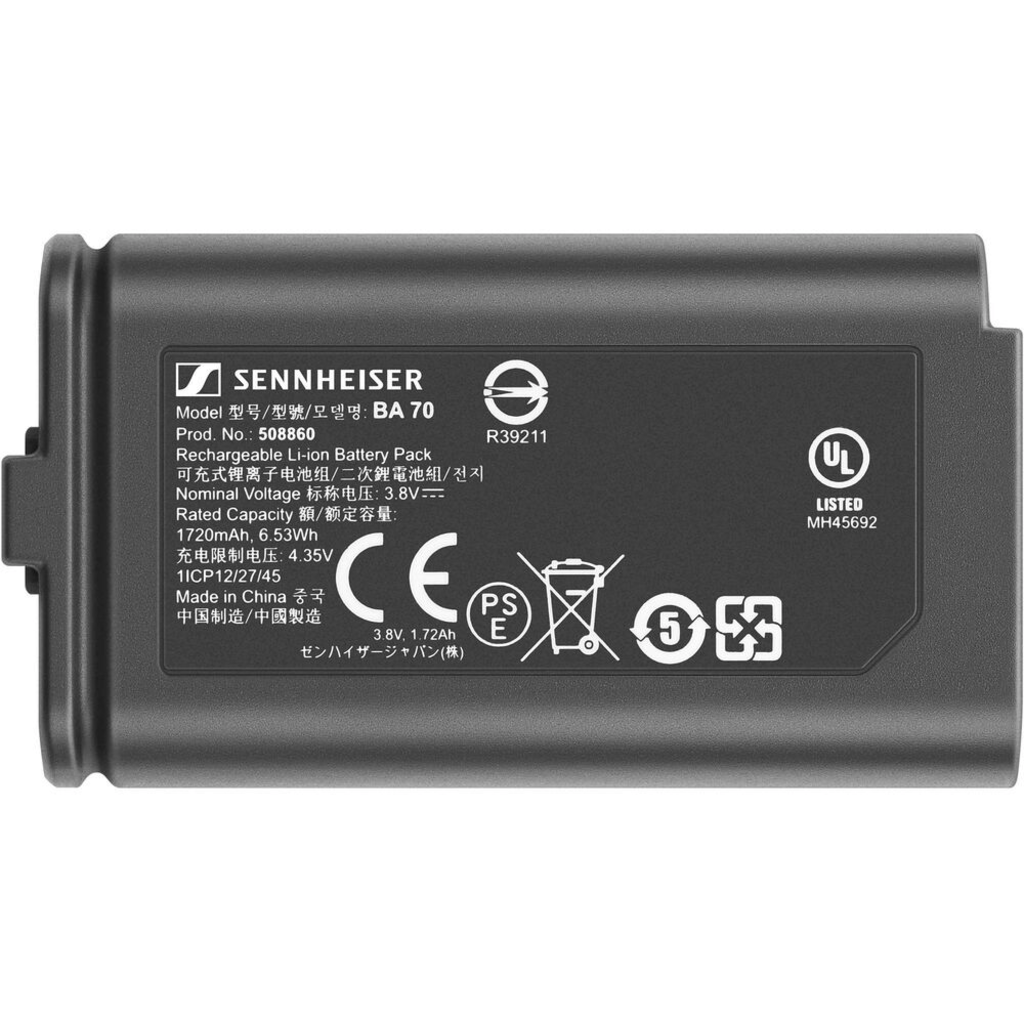

2x Sennheiser BA 70 Rechargeable Battery Pack for EW-D Bodypack and Handheld Transmitters
2x Rod Antenna
GA 3 Rackmount Set
4x Rubber Feet
Sennheiser NT 12-5 CW+ Universal Power Supply for EW-D EM Wireless Receiver
