DWM-30L.CE7 - Sony

Microphones Wireless > Trasmitters
₦ 2,849,813.71
VAT Included
Adcom - Sony
New
Available in 19 days
Sony DWX Series Handheld Transmitter Gen3, interchangeable head, TV channel 21-38, 470,025MHz - 614,000MHz

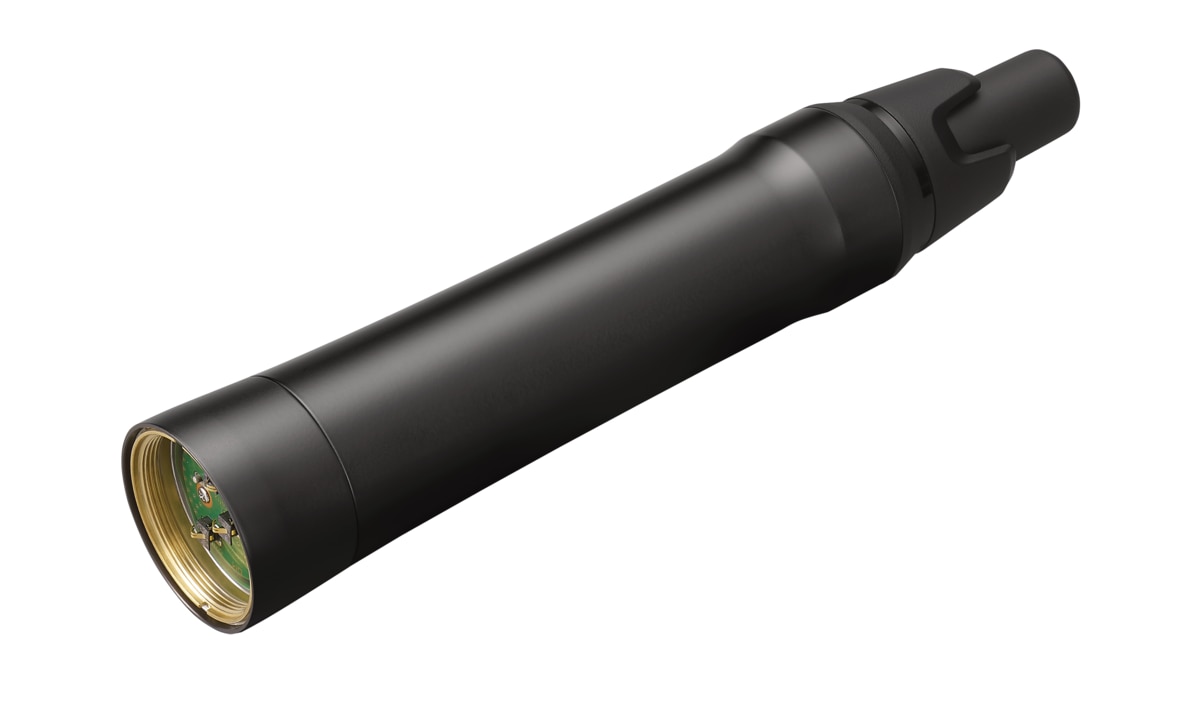

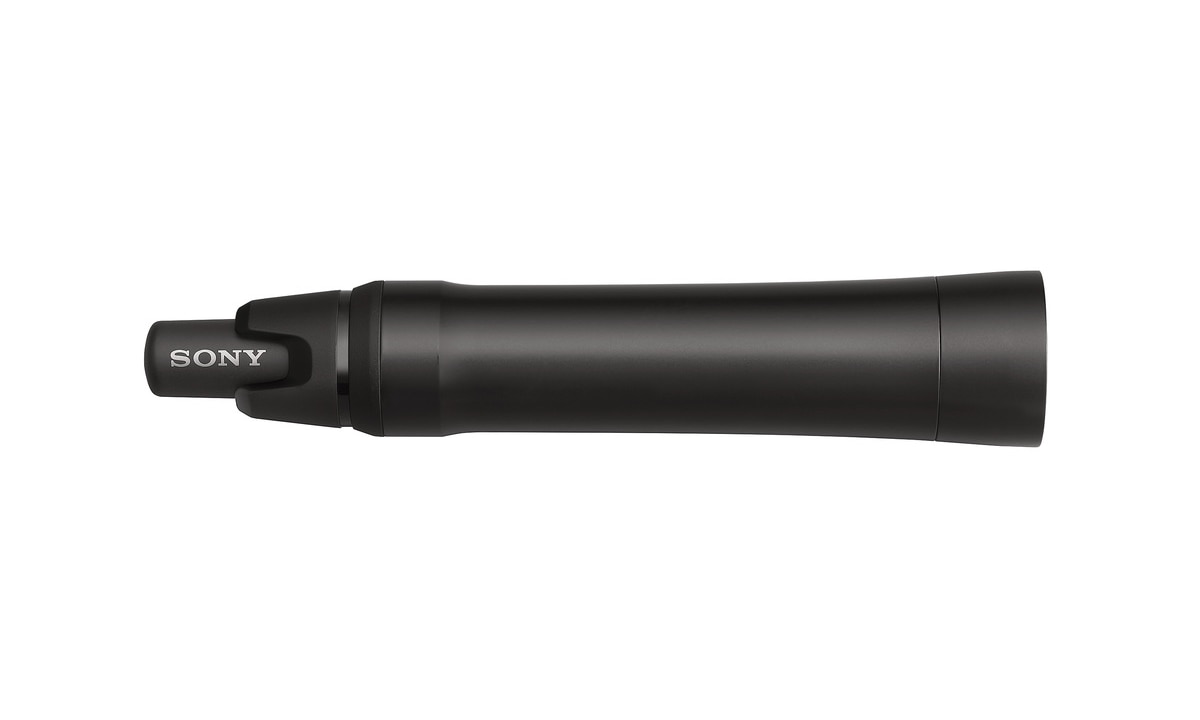

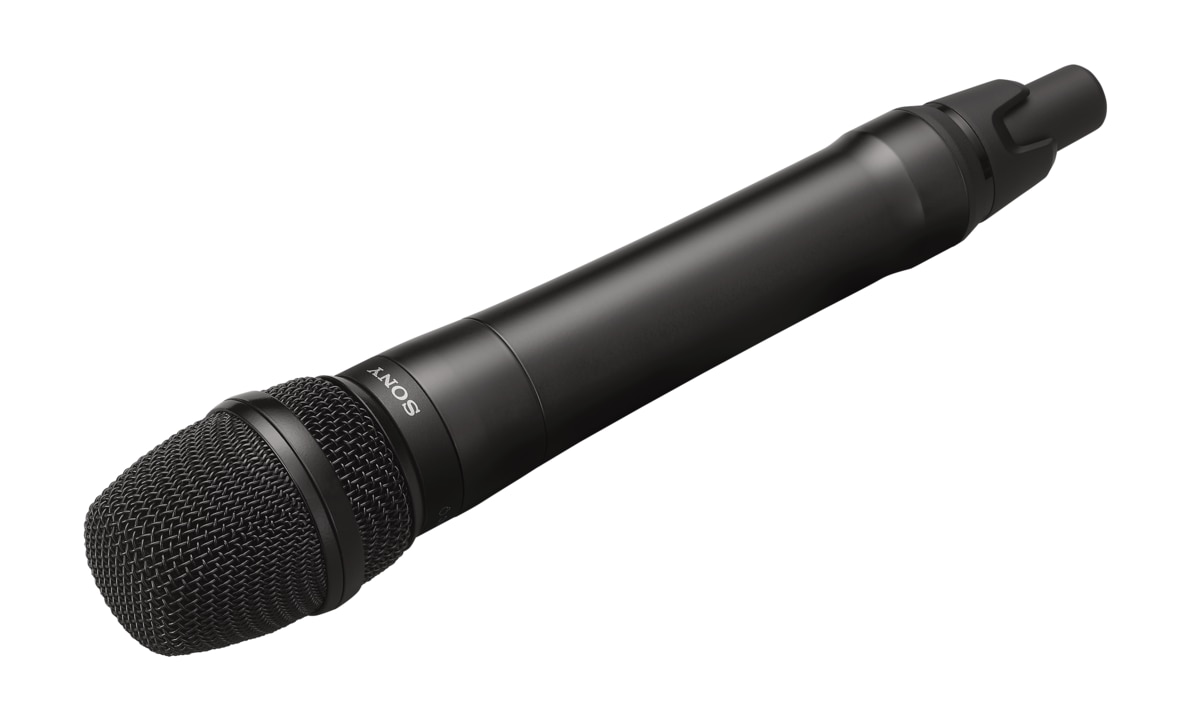

The DWM-30 digital wireless microphone is part of the DWX series system, which offers high-quality digital operation, lower audio latency, and more reliable RF transmission—ideal for a variety of high-quality applications, including studio broadcasting, theater, and live music events.
Designed for maximum user flexibility, the DWM-30 does not come with a microphone capsule, as the DWM-30's interchangeable head mechanism supports Sony and third-party capsules.
Sony offers three microphone heads, the CU-C31, CU-F31, and CU-F32, plus, there's a wide variety of third-party capsules to choose from, so no matter your needs, the DWM-30 handheld wireless microphone is the ideal choice.

Wireless transmission and reception of the highest audio quality
High-quality 24-bit digital audio is transmitted and received within a specific frequency band that meets the wireless communication standards of each country. Using Sony's original codec design, the result of years of audio engineering experience, the DWX system delivers a wide dynamic range of over 106 dB, a wide frequency response of 20 Hz to 22 kHz, and excellent response.

Lightweight, easy-to-hold design
The optimized mechanical structure offers an easy-to-hold design and is approximately 10% lighter than the previous model.

Wide bandwidth
A bandwidth of up to 148 MHz (depending on region) enables flexible operation with a wide channel selection.

High-Density Multi-Channel Operation
Ideal for large-scale productions, the DWM-30 supports high-density simultaneous multi-channel operation.
The 375 kHz spacing accommodates up to 21 channels per 8 MHz TV band, or up to 16 channels simultaneously per 6 MHz TV band.

Four Codec Modes for a Wide Range of Applications
MODE1: Compatible with first-generation DWX series devices.
MODE2: Prioritizes low latency while maintaining transmission stability and high audio qu
Wireless Interface: WiDIF-HP
Oscillator Type: High-quality PLL Synthesizer
Emitter Type: G1E or G1D
Carrier Frequencies - UC: 470.125 MHz to 607.875 MHz, 614.125 MHz to 615.875 MHz, 25 kHz steps
Carrier Frequencies - CE7: L: 470.025 MHz to 614.000 MHz, 25 kHz steps | H: 566.025 MHz to 714.000 MHz, 25 kHz steps
Carrier Frequencies - J:
- L: 470.150 MHz to 614.000 MHz, 25 kHz steps
- MH: 566.025 MHz to 713.850 MHz, 25 kHz steps
- G: 1240.150 MHz to 1251.825 MHz, 1253.175 MHz to 1259.850 MHz, 25 kHz steps
- B: 806.125 MHz to 809.750 MHz, 125 kHz steps
RF Power: 2 mW/10 mW/25 mW (ERP) selectable
Input Impedance: 4.7 kOhms or more
Maximum input level: -16 dBu (with 0 dB attenuator)
Audio adjustment range: High gain: +18/+12/+6 dB selectable, attenuator: 0 dB to 42 dB (in 3 dB increments)
Frequency response: Transmission: 20 Hz to 22 kHz (typical)
Distortion (T.H.D.): MODE1, MODE2, MODE4: 0.03% or less MODE3: 0.3% or less
Audio delay: MODE1: 0.8 msec / MODE2: 0.7 msec / MODE3: 1.8 msec / MODE4: 0.8 msec
Wireless remote control: Cross Remote (2.4 GHz compliant with IEEE802.15.4)
Display: OLED
Power supply: 3 V DC (with two AA alkaline batteries) LR6)
Battery operating time:
Approximately 6 hours with AA (LR6) alkaline batteries at 25°C (77°F) with a power output of 10 mW
(with wireless remote control turned off and DIMMER FUNCTION set to AUTO OFF)
Operating temperature: 0°C to 50°C / 32°F to 122°F
Transport/storage temperature: -20°C to +60°C / -4°F to +140°F
Dimensions: F37.1 x 189 mm
Weight: Approximately 207 g (7.2 oz.) (with batteries)
Identification ring (1 set)
1x Microphone holder
1x Stand adapter
