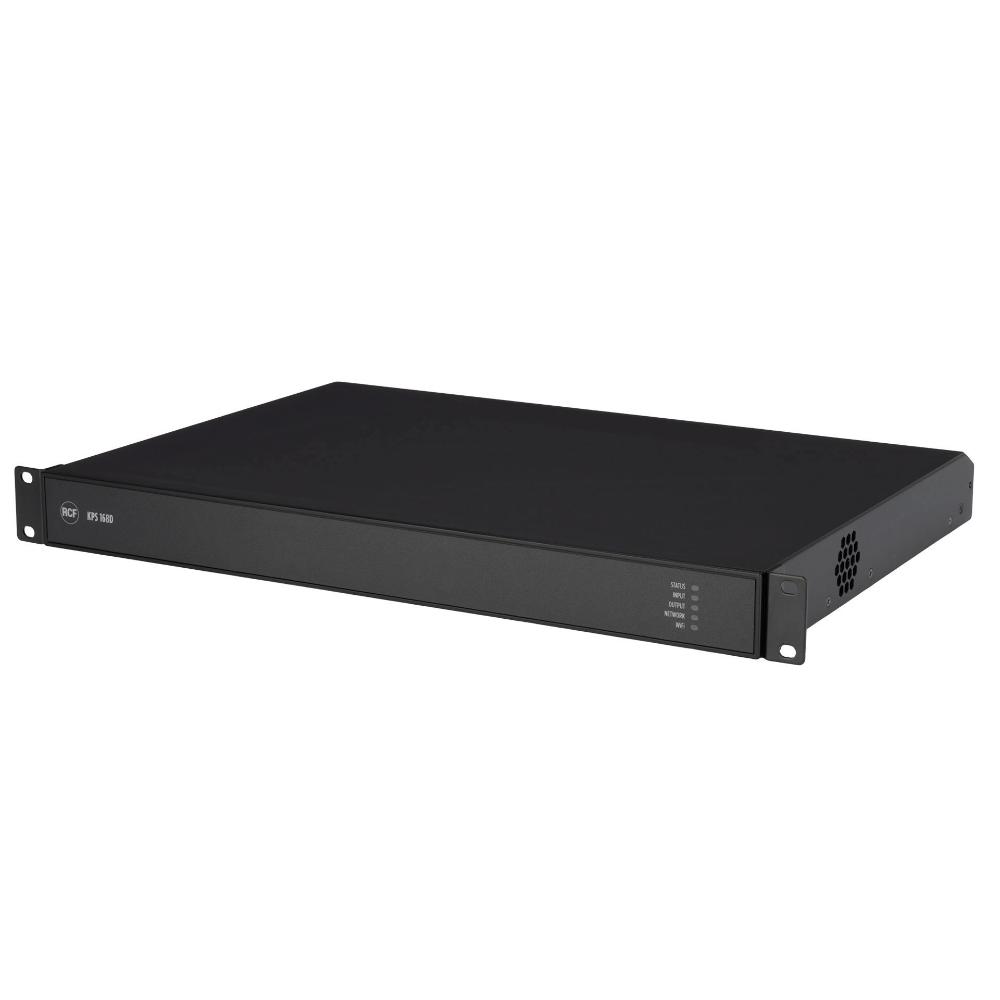

KPS 168D - RCFEAN  8024530023775

Amplifier
Amplifier Class: D
Output Power:
- 8 x 160 W @ 4 ohms
- 8 x 160 W @ 8 ohms
- 4 x 320 W @ 8 ohms (bridged)
Output Power @ 100 V: 4 x 320 W @ 100 V
Output Power @ 70 V: 4 x 320 W @ 70 V
Frequency Response (-3dB): 20 Hz - 20,000 Hz
SNR Analog Inputs ("A" Weighted): >106 dB
SNR Digital Inputs ("A" Weighted): >106 dB
Distortion (THD+N) (20 Hz - 20,000 Hz, 160 W @ 8 ohms): <0.05%

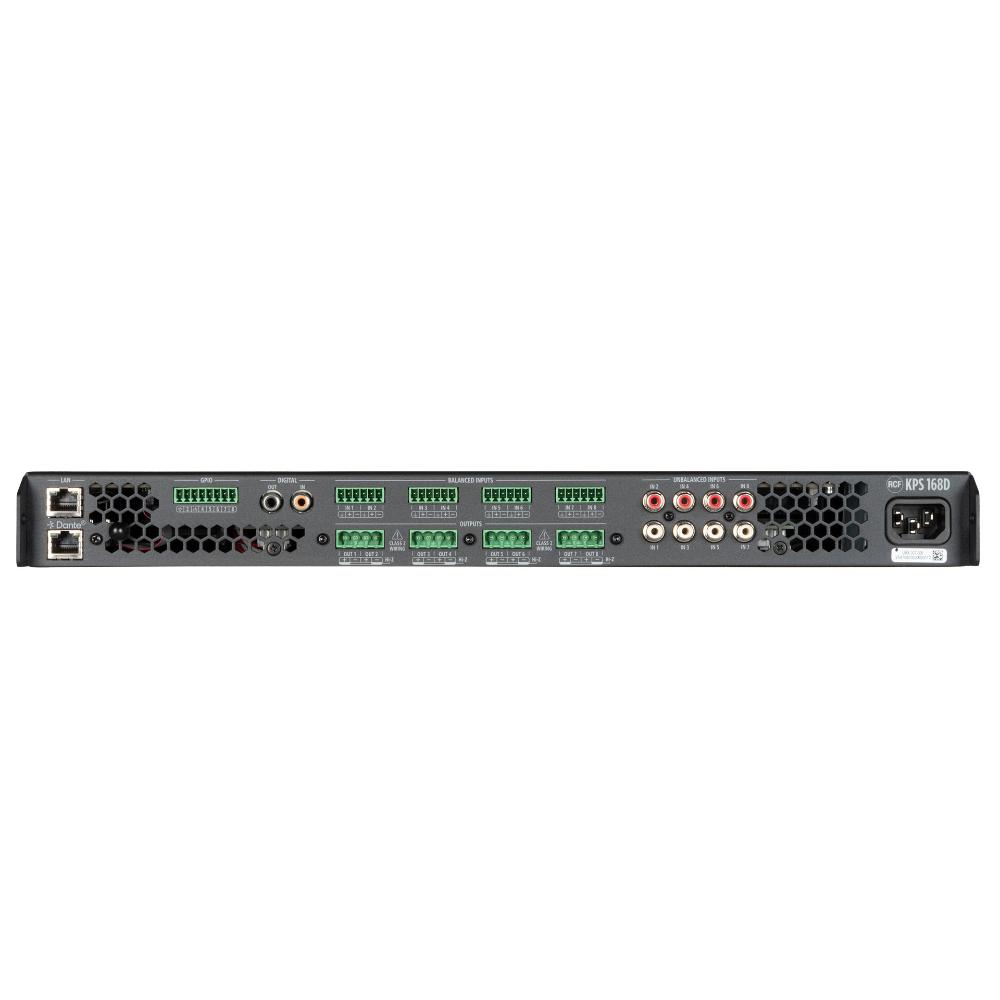

Input Section
Number of Inputs Total: 13
Mic + Line Inputs: 8
Mic + Line Connections: Euroblock, RCA
Digital Inputs: 5
Digital Connections: RCA, RJ45
Digital Type: DANTE, S/PDIF
General Purpose Inputs (GPI): 5
Programmable GPI: Yes

Output Section
Number of Signal Outputs: 1
Output Signal Connections: RCA
Euroblock: Power Connections
General Purpose Outputs (GPO): 5
Programmable GPO: Yes

Power Supply
Operating Voltage (V - Hz): 90-240 V~ 50/60Hz
Power Consumption (MAX) (W): 300 W

Dimensions and Weight
Height: 44 mm / 1.73 inches
Width: 482 mm / 18.98 inches
Depth: 319 mm / 12.56 inches
Weight: 3.8 kg / 8.38 lbs
