DZR 315-D

Name: DZR 315-D - Speaker 2000W Power Handling, 15" LF Driver, 8" MF Driver Dante-Equipped Powered
Brand: Yamaha
SKU: DZR 315-D
Price: 4473665.18 NGN
Availability: OutOfStock

₦ 4,473,665.18
VAT Included

Adcom - Yamaha

New

Available in 10 days

QUOTE

BUY

The DZR315-D is a Dante-equipped three-way bi-amped powered loudspeaker and is the most powerful model in the DZR Series producing a maximum 143dB SPL with supreme clarity. Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency sound reproduction - the DZR315 delivers on all fronts realising a truly professional sound delivered with a level of power that belies its compact, lightweight design. Ideal for use in a front of house main PA, it also includes integrated M10 rigging points for suspended applications.

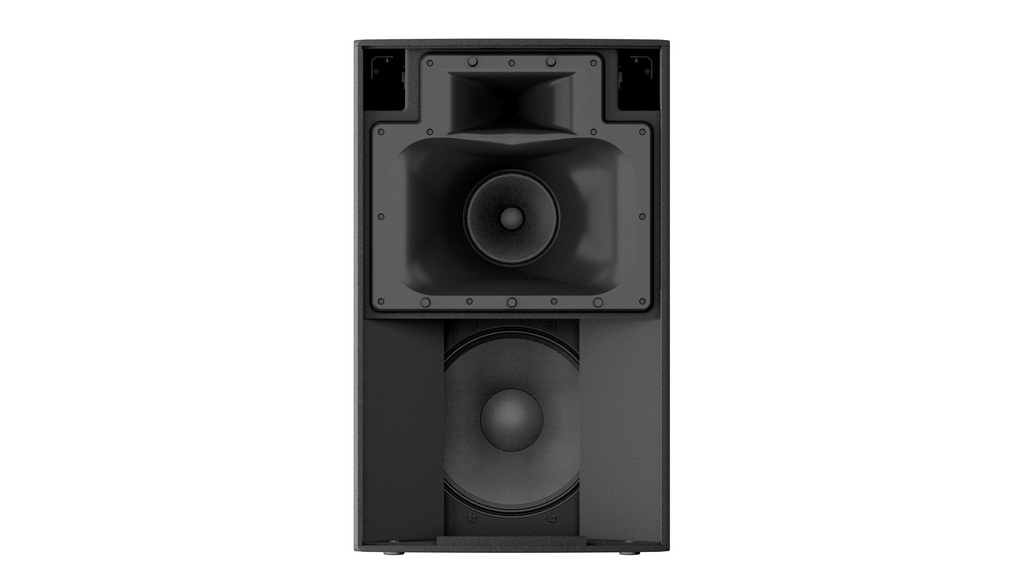

3-way powered loudspeaker with a 2" HF, an 8 " MF and a 15" LF
Maximum 143dB SPL and 31Hz-20kHz frequency range is ideal for FOH main PA
High power 2000W Class-D amplifier module
96kHz DSP and FIR filter for true high-resolution sound with super low latency
Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
D-Contour and highly reliable protection circuits
Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
Optional speaker cover (SPCVR-DZR315)

Power and Performance. Integrated.

Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency bass sound reproduction - the new DZR delivers on all fronts realising a truly professional sound delivered with a level of power that belies its compact, lightweight design.
Sign of the Times

The culmination of all Yamaha's accrued sound reinforcement, acoustics, and signal processing technology expertise - particularly with the introduction of our Dante-enabled models - DZR represents Yamaha's first fully-integrated, smart/editable speaker range of professional, powered loudspeakers.
Yamaha DSP: Intelligent Processing for Consistent Clarity and Power
Advanced FIR-X Tuning

96kHz DSP processors help focus the considerable power output of the DZR into truly high-resolution sound with super-low latency. Our newly developed Advanced FIR-X tuning improves significantly on our proprietary FIR-X tuning technology which utilizes linear phase FIR filters for the crossover network and correct EQ. Using FIR filters, we are able to realize very smooth frequency response for stunning clarity and sound imaging without phase distortion. Accurate EQ filtering is also provided for pinpoint adjustment to realize ideal clarity and best-in-class SPL without signal degradation.

An onboard LCD screen allows users to easily navigate the variety of DSP functions, load presets, and make precise adjustments to PEQ, delay, and routing. Store up to 8 user presets to save your own parameter adjustments, or use the optimized dedicated factory presets for using DZR and DXS XLF Series in combination. Users can easily transfer saved settings to a USB flash drive.
D-CONTOUR

D-CONTOUR is an intelligent multi-band compressor that ensures your DZR's sound stays consistent and clear no matter how hard you drive them. By constantly monitoring the output of multiple frequency bands and applying the optimum EQ adjustments for each, even the highest output levels maintain outstanding clarity and musicality.

A perf
