EVO Max 4N - GenericEAN  6924991124184

Aerial Imaging > Professionale Drones
EAN:6924991124184
₦ 18,097,698.10
VAT Included
Adcom -
New
Available in 15 days
Autel Robotics Drone with sensor Size-Unspecified CMOS, resolution 2.3 Megapixel, digital zoom 1 to 8x

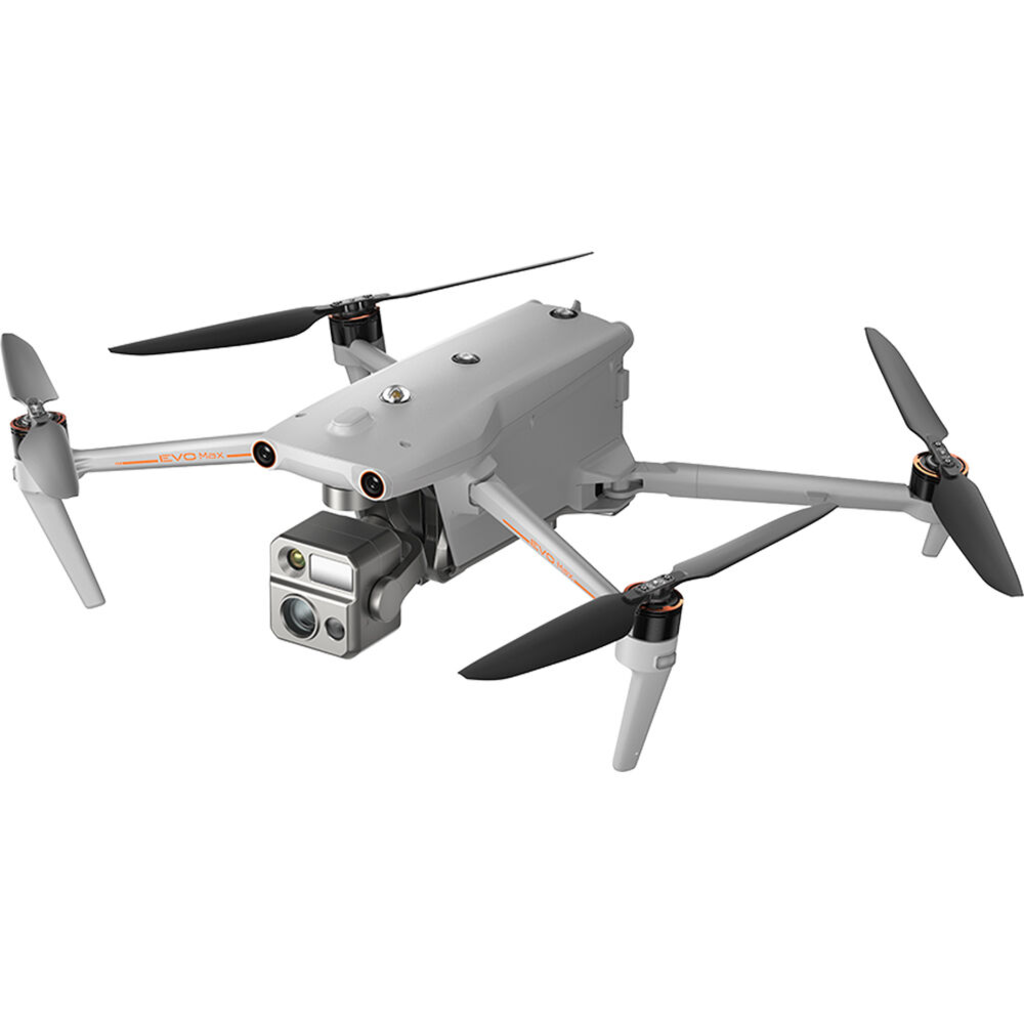

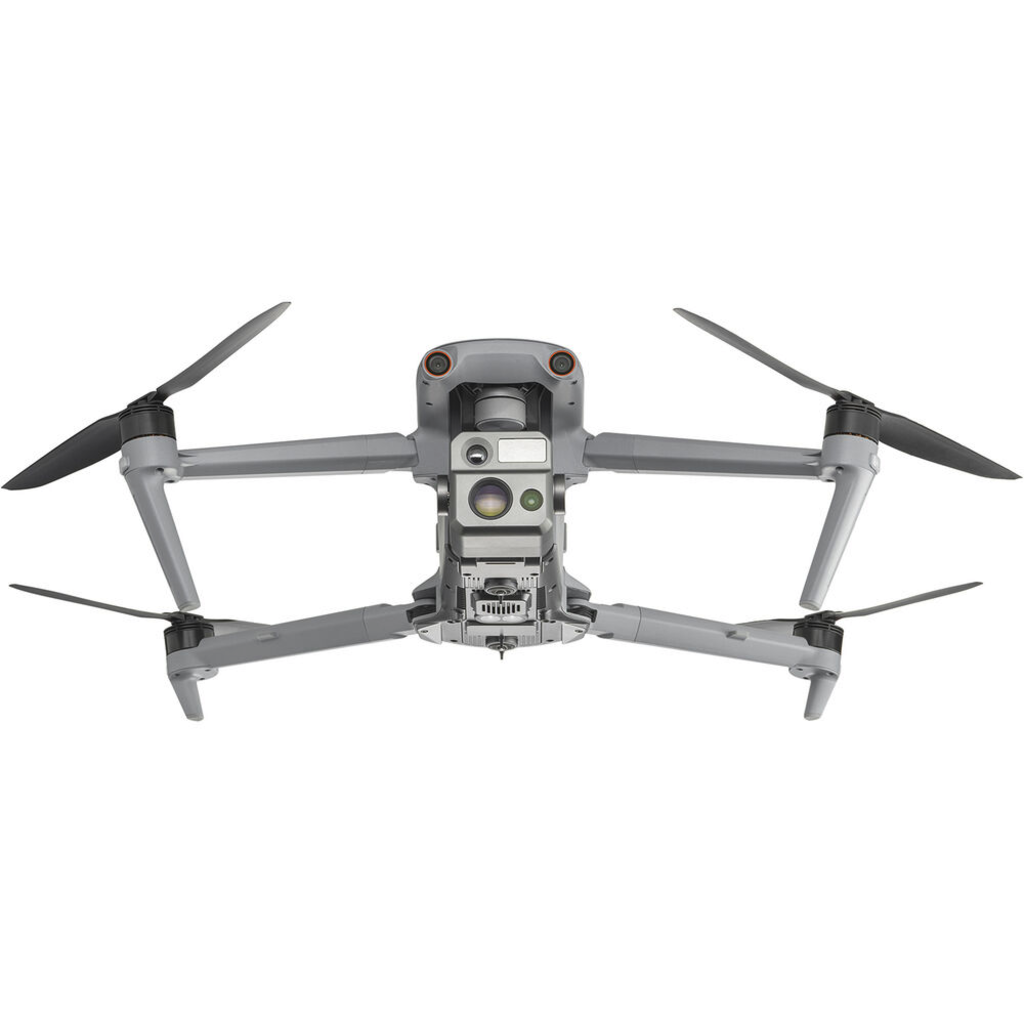

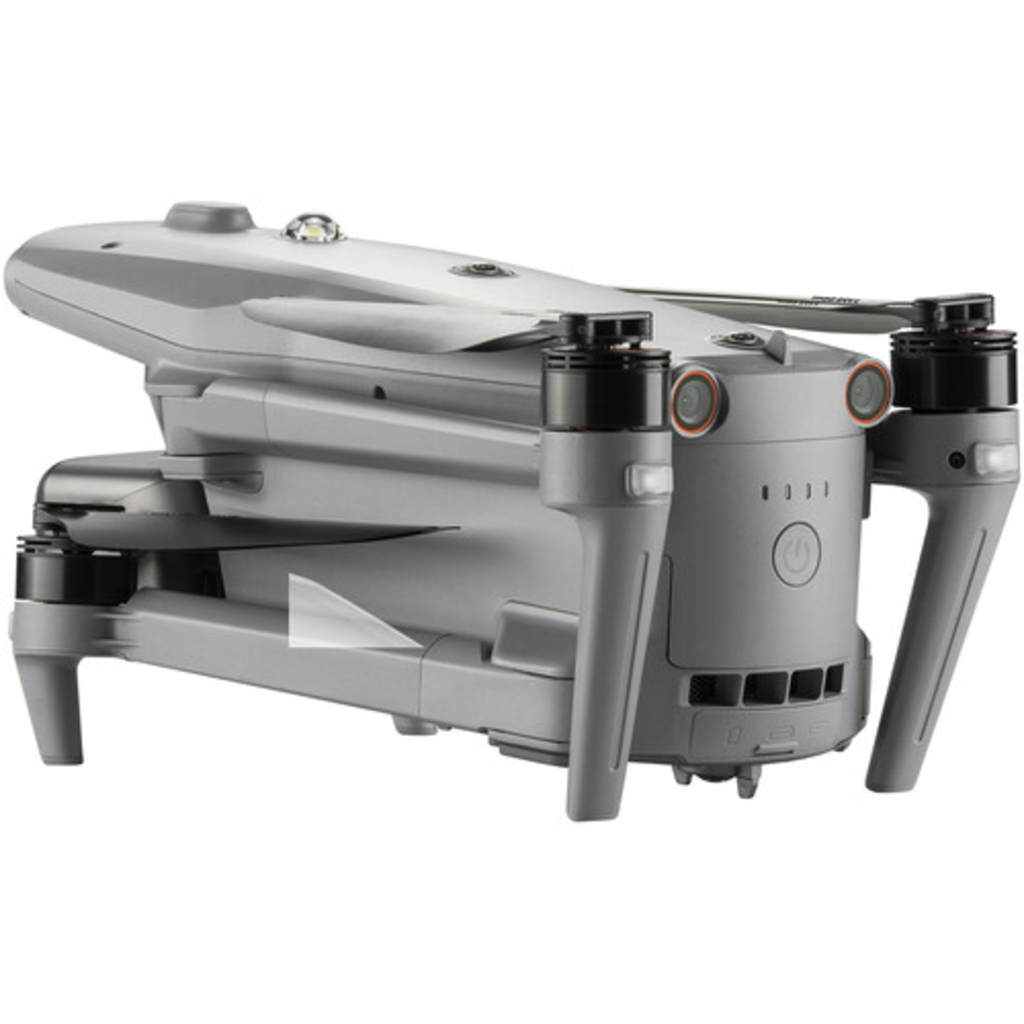

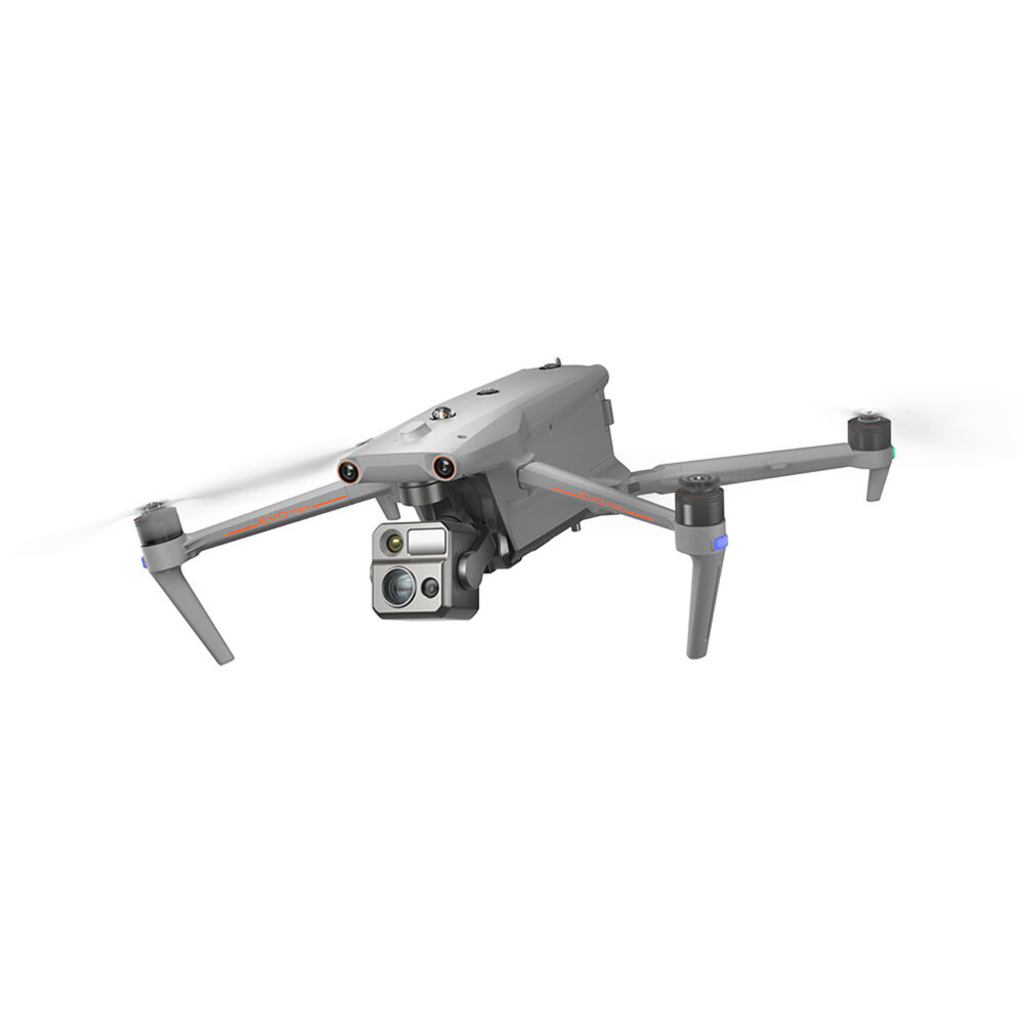

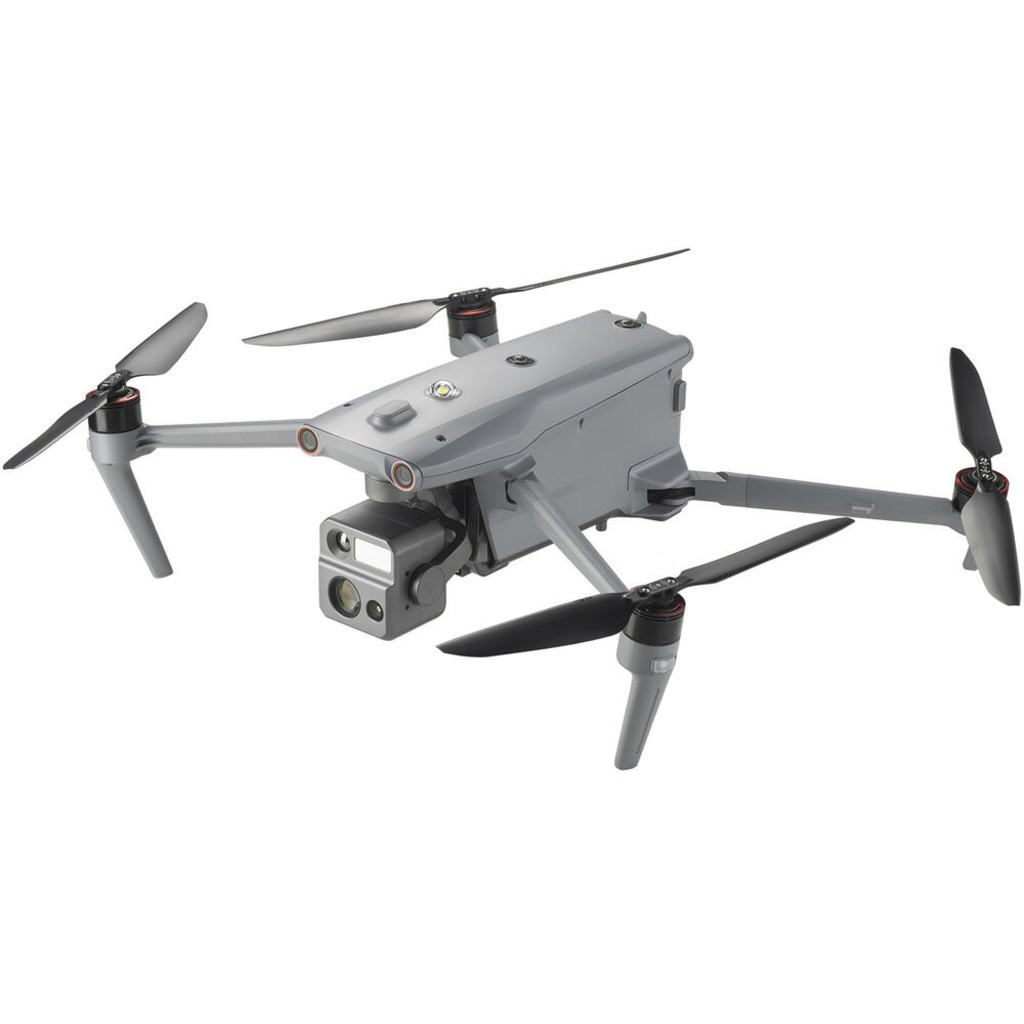

For critical industrial and first responder missions, the EVO Max 4N Industrial Drone from Autel is an ideal tool, providing a robust set of technologies for the efficient handling of a wide variety of scenarios.
The primary payload offers a Starlight nighttime, 4K low-light wide-angle, and thermal camera, along with a laser rangefinder.
Together they make quick work of inspections, search and rescue, security overwatch, land surveying, and many other operations.

The drone itself can get to locations and perform tasks quickly, even in adverse conditions.
Flown by a pilot with the included Smart Controller V3, or allowing the EVO Max 4N to take advantage of a host of advanced navigation and obstacle avoid technologies to fly semi or fully autonomously, alone or together as a fleet or swarm of drones.

° Eliminate Blind Spots
With eight different cameras and 720° of coverage, the EVO Max 4N effectively eliminates blind spots when it comes to obstacle avoidance during flight.
A combination of a binocular vision system and millimeter wave radar is used by the onboard Autel Autonomy Engine to perceive objects down to 0.5" in size and facilitate autonomous pathfinding, even in low-light and rainy conditions.
You can also use the system to collect data on your environment to create 3D flight paths through mountains, forests, and buildings.

° Mission-Ready Payload

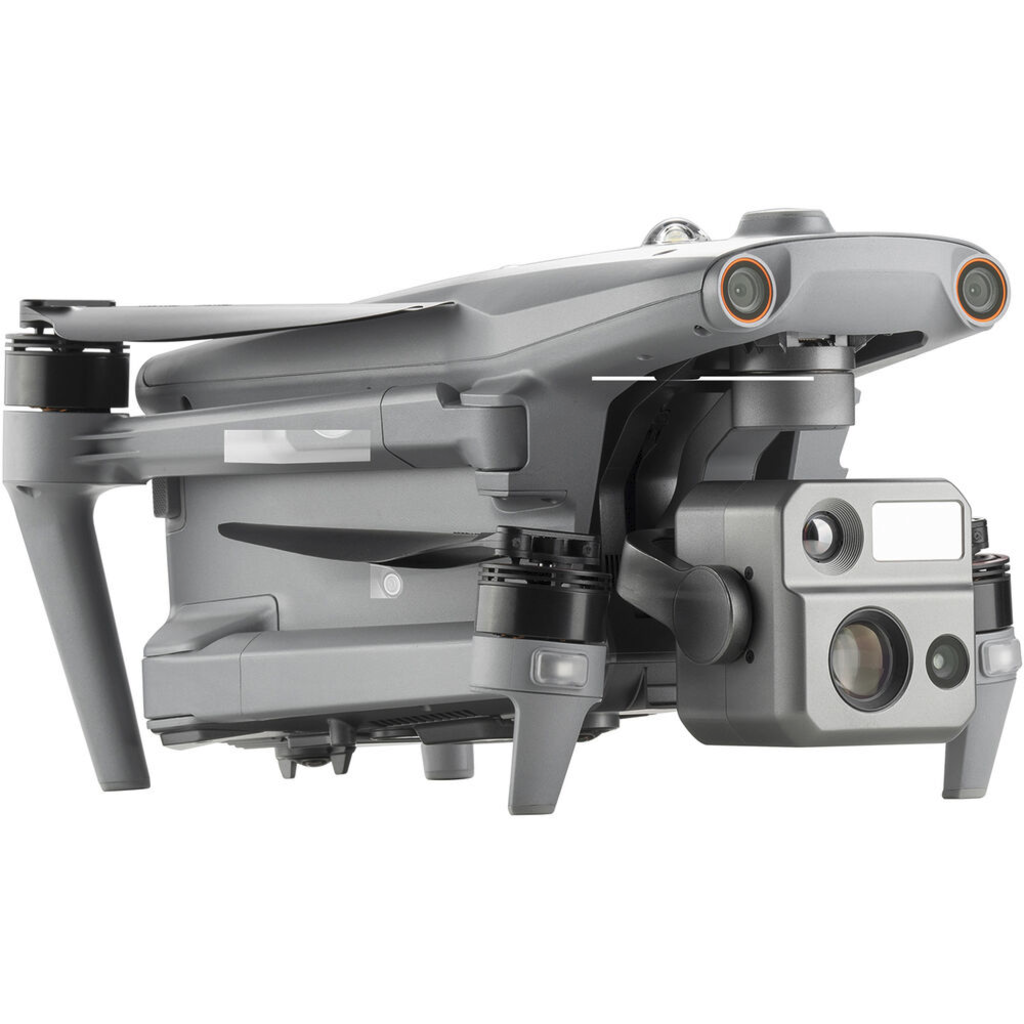

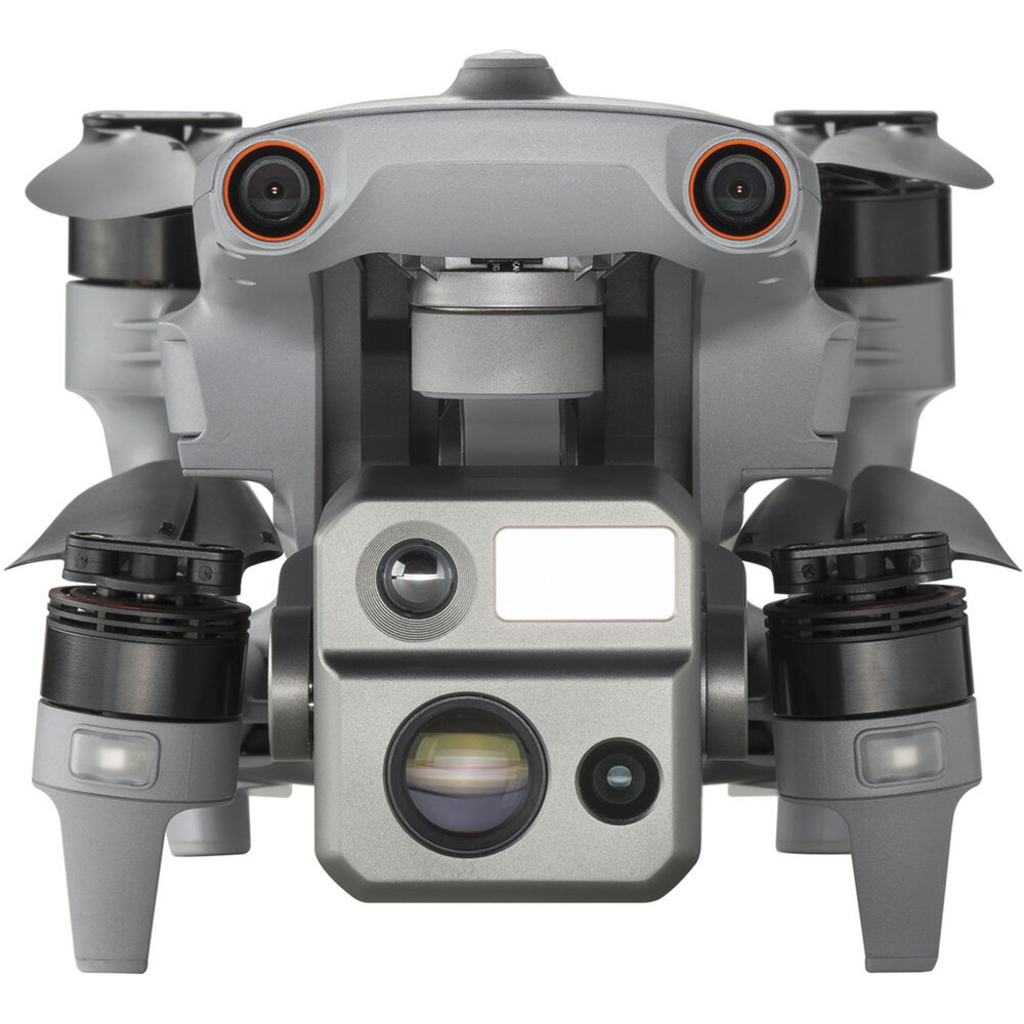

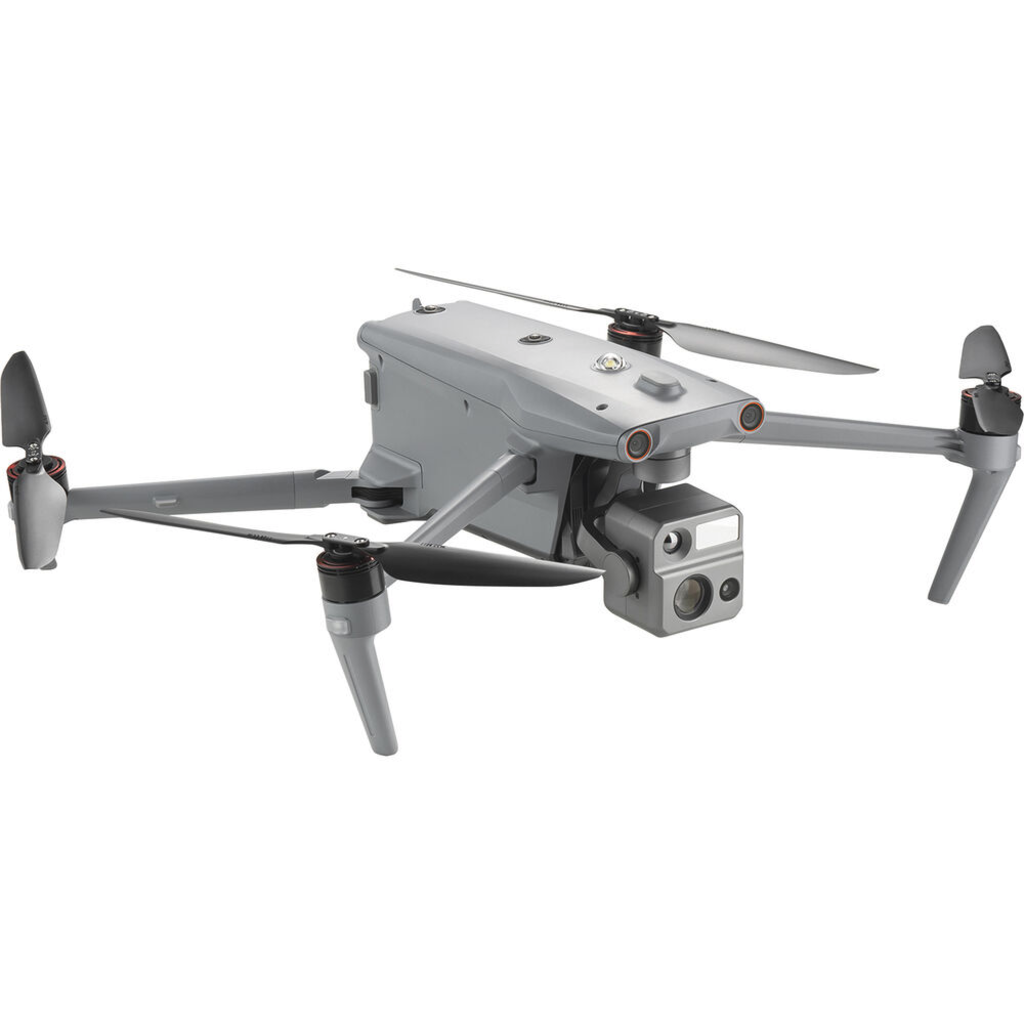

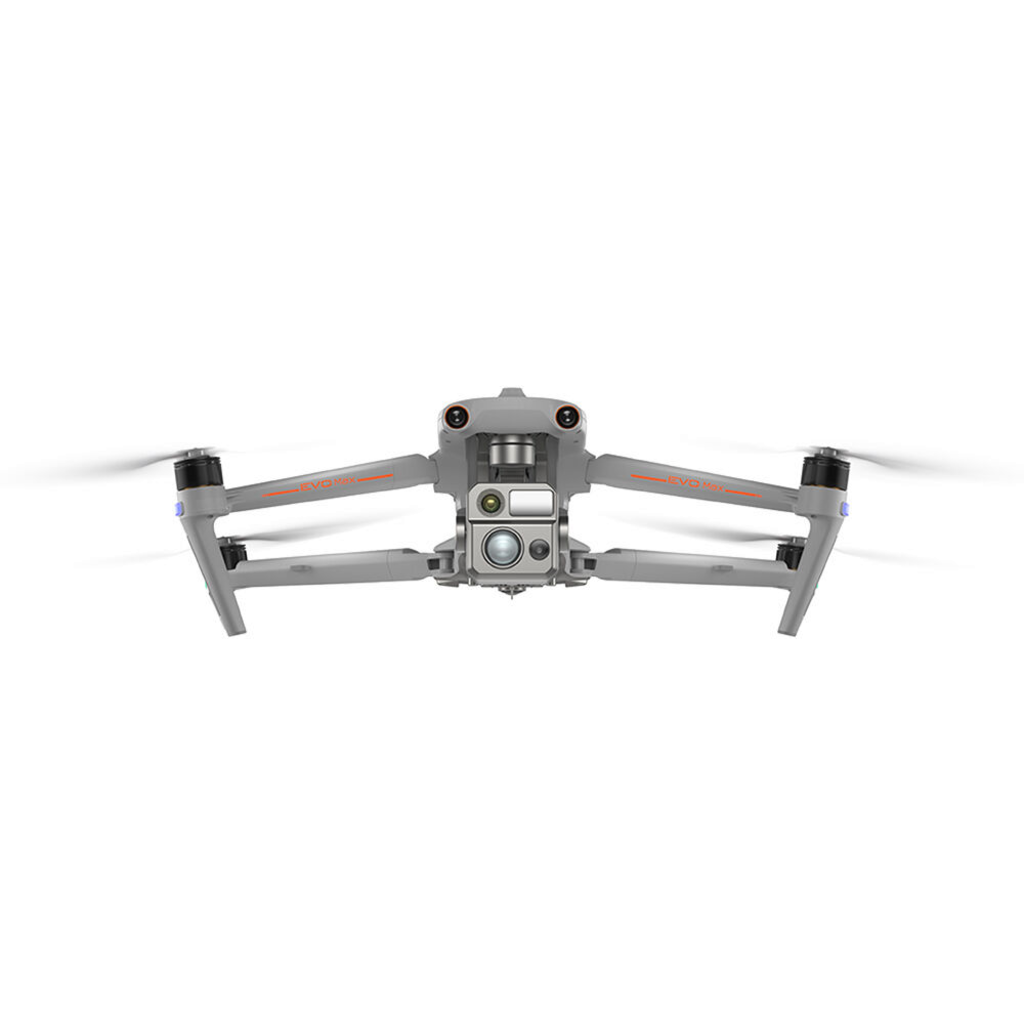

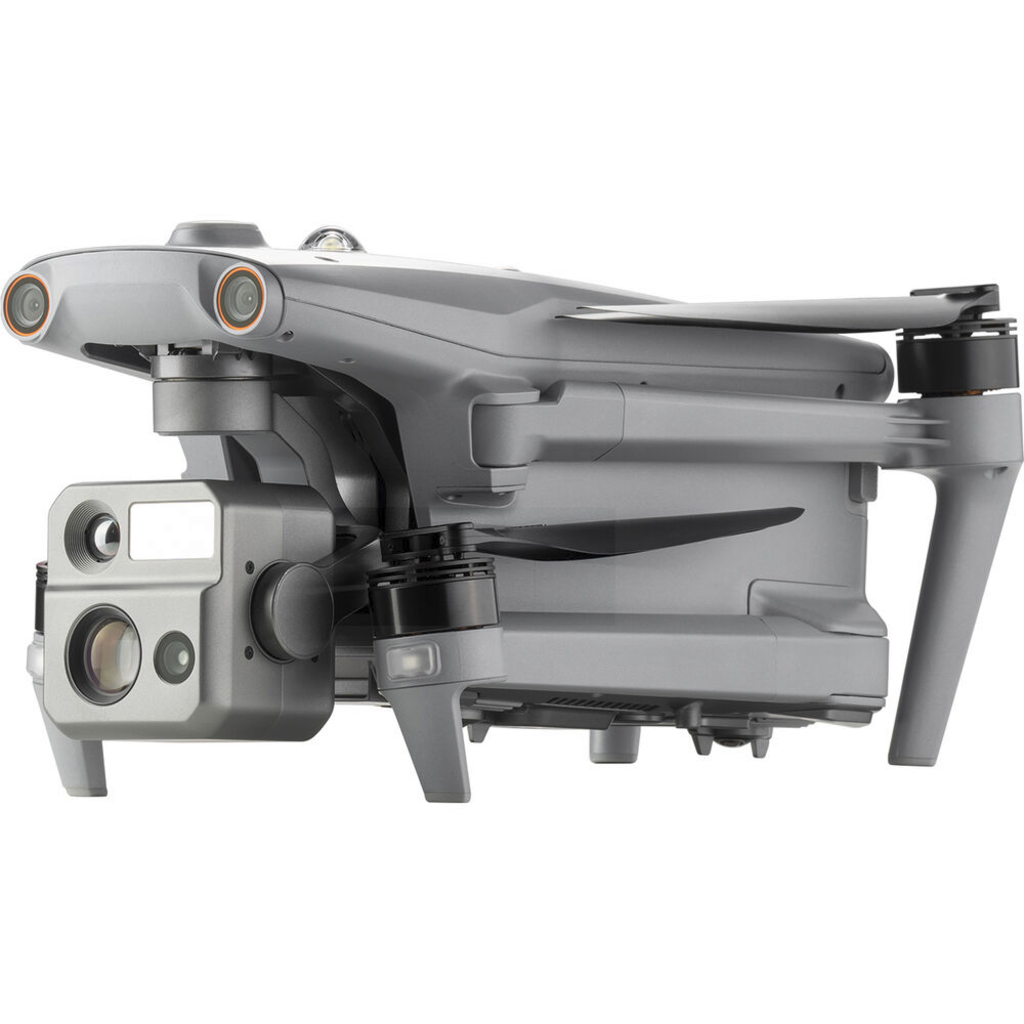

Regardless of the challenge in front of you, the integrated 3-axis gimbal and payload of the EVO Max 4N can likely handle it.
It features a Starlight camera, wide-angle RGB camera, thermal camera, and laser rangefinder.

- Starlight Camera: This greyscale camera is made specifically for nighttime flights, capturing a clear view with crisp detail that lets you more easily locate and track subjects./LI>
- Wide-Angle Camera: 85° FOV with the ability to record up to 4K/30 video and low-light images with Moonlight Mode, which reduces nois
Performance
Maximum Horizontal Speed: 51.4 mph / 23 m/s
Maximum Ascent Speed: 17.9 mph / 8 m/s
Maximum Descent Speed: 13.4 mph / 6 m/s
Maximum Wind Resistance: 27 mph / 12.1 m/s
Flight Ceiling: 4.3 Miles / 7000 m
Maximum Flight Time: 42 Minutes
Maximum Hover Time: 38 Minutes
Maximum Tilt Angle: 35°
Hovering Accuracy:
- Vision Positioning: Vertical: ±0.3' / 0.1 m | Horizontal: ±0.49' / 0.15 m
- GNSS: Vertical: ±1.0' / 0.3 m | Horizontal: ±1.0' / 0.3 m
- RTK: Vertical: ±0.49' / 0.15 m | Horizontal: ±0.3' / 0.1 m
Maximum Angular Velocity:
- 300°/s (Pitch)
- 120°/s (Yaw)
Rotor Configuration: 4
Media/Memory Card Slot: No
Operating Temperature: -4 to 122°F / -20 to 50°C

Camera
Image Sensor: Size-Unspecified CMOS
Sensor Resolution: Effective: 2.3 Megapixel
Focal Length: 41.4mm (35mm Equivalent)
Field of View: 52°
Digital Zoom: 1 to 8x
ISO Sensitivity Range: Photo/Video: 100 to 450,000 in Auto Mode
Internal Recording Modes: MP4: 1920 x 1200 at 30.00 fps [20 Mb/s]
Still Image Support: JPEG (1920 x 2001)
Photo Modes: Burst Shooting, Single Shot

Gimbal
Number of Axes: 3-Axis (Pitch (Tilt), Roll, Yaw (Pan))
Rotation Range:
Mechanical Range: Yaw (Pan): 180° (-135 to 45°) | Pitch (Tilt): 90° (-45 to 45°) | Roll: 90° (-45 to 45°)
Controllable Range: Pitch (Tilt): 120° (-90 to 30°)
Follow Speed: Tilt: 200°/s
Stabilization Accuracy: ±0.005°

Vision/Sensing System
Vision System: Downward / Upward / Forward / Backward / Left / Right
Sensing System Capabilities:
- Forward: Measurement Range: 0.7 to 164.0' / 0.2 to 50 m | Field of View: 60° (Horizontal) / 80° (Vertical)
- Backward: Measurement Range: 0.7 to 164.0' / 0.2 to 50 m | Field of View: 60° (Horizontal) / 80° (Vertical)
- Lateral: Measurement Range: 0.7 to 164.0' / 0.2 to 50 m | Field of View: 60° (Horizontal) / 80° (Vertical)
- Upward: Measurement Range: 0.7 to 164.0' / 0.2 to 50 m | Field of View: 360° (Horizontal) / 190° (Vertical)
- Downward: Measurement Range: 0.7 to 164.0' / 0.2 to 50 m | Field of

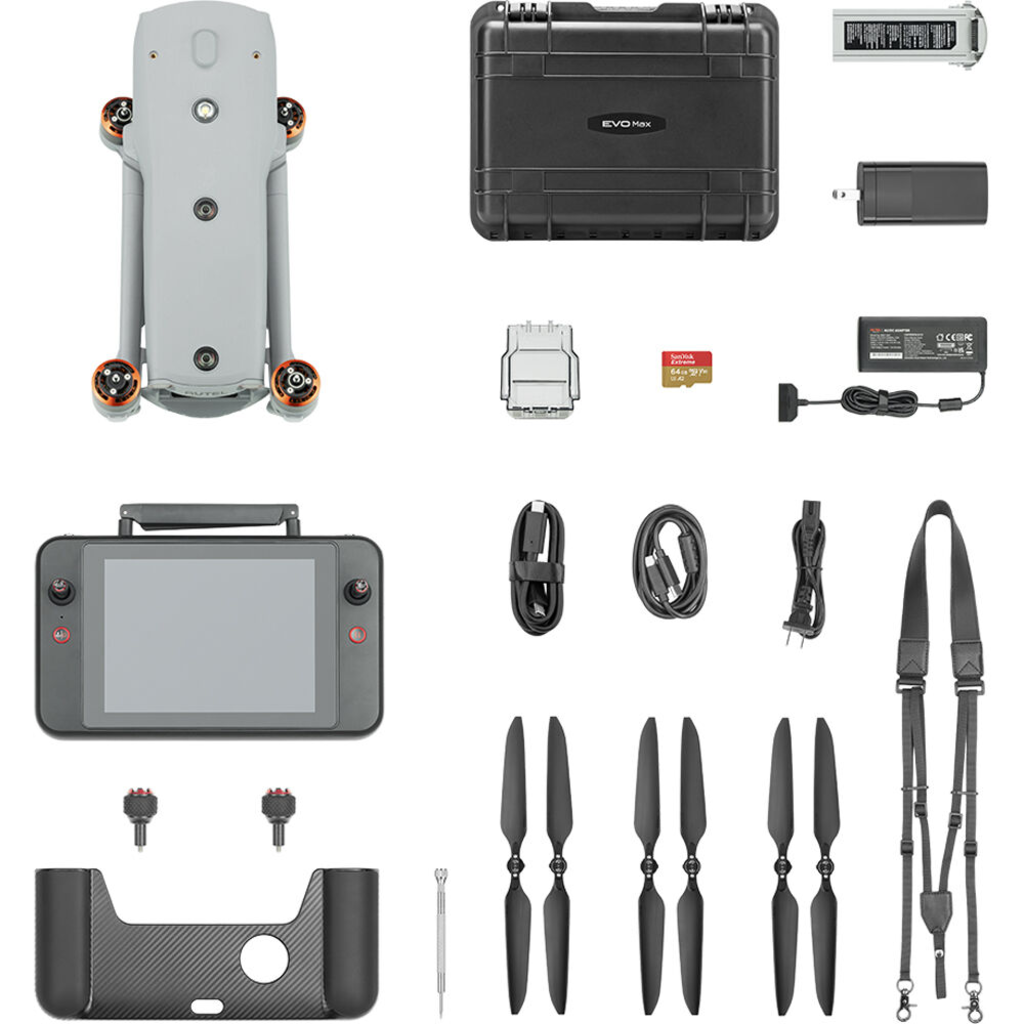

1x EVO Max 4N Industrial Drone
1x EVO MAX Battery
1x Smart Controller V3 for EVO II V3 Drones
1x Rugged Case
1x 64GB SD Card
1x Propellers for EVO Max Drones (Pair)
1x EVO Max Flight Battery Charger
1x Smart Controller Lanyard
1x Smart Controller Cover
1x Spare Joystick for Smart Controller
1x RC Charger
1x RC Charger Cable
1x Gimbal Cover for EVO Max 4N/4T Drones
1x Data Cable
1x Screwdriver
