V-RAPTOR XE RF Cine essential - Red Camera

Digital Cinema Cameras > Full Frame sensor
₦ 35,646,085.18
VAT Included
Adcom - Red Camera
New
Available in 14 days

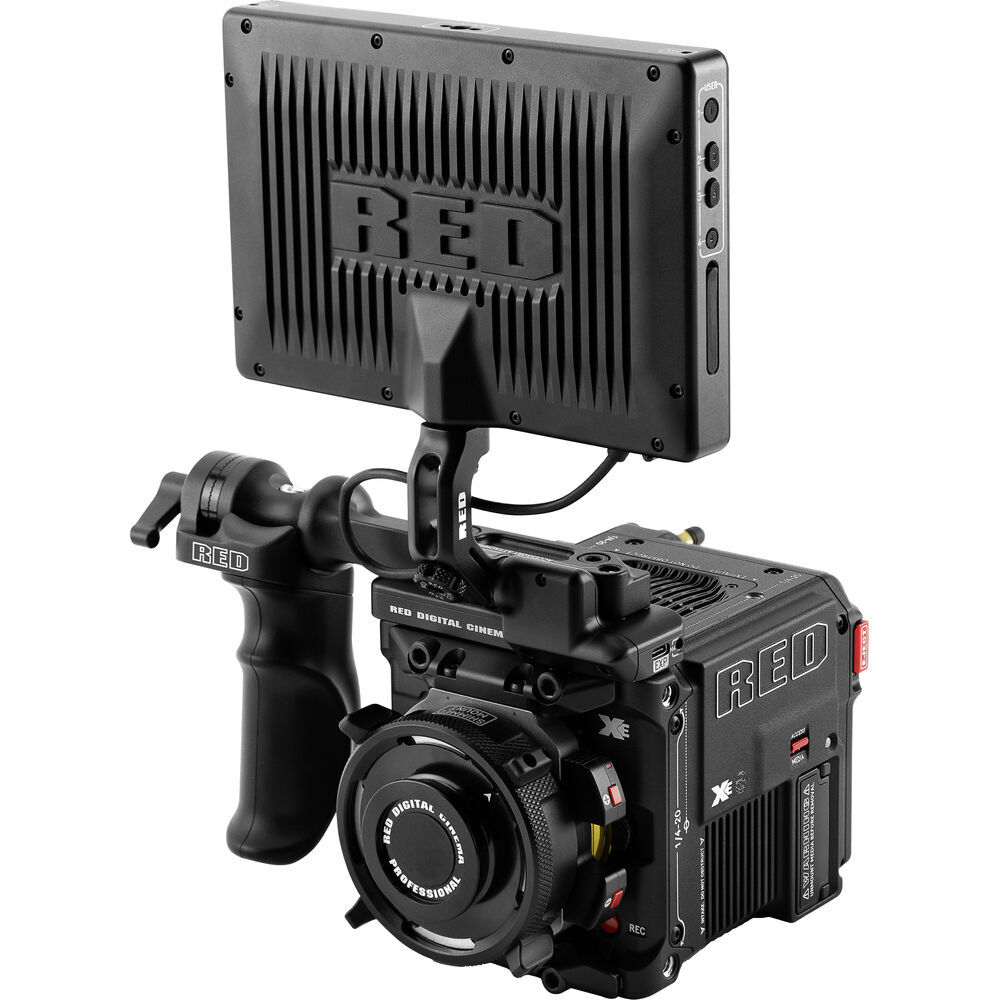

RED DIGITAL CINEMA V-RAPTOR XE Cine Essentials Pack (Canon RF) 710-0450

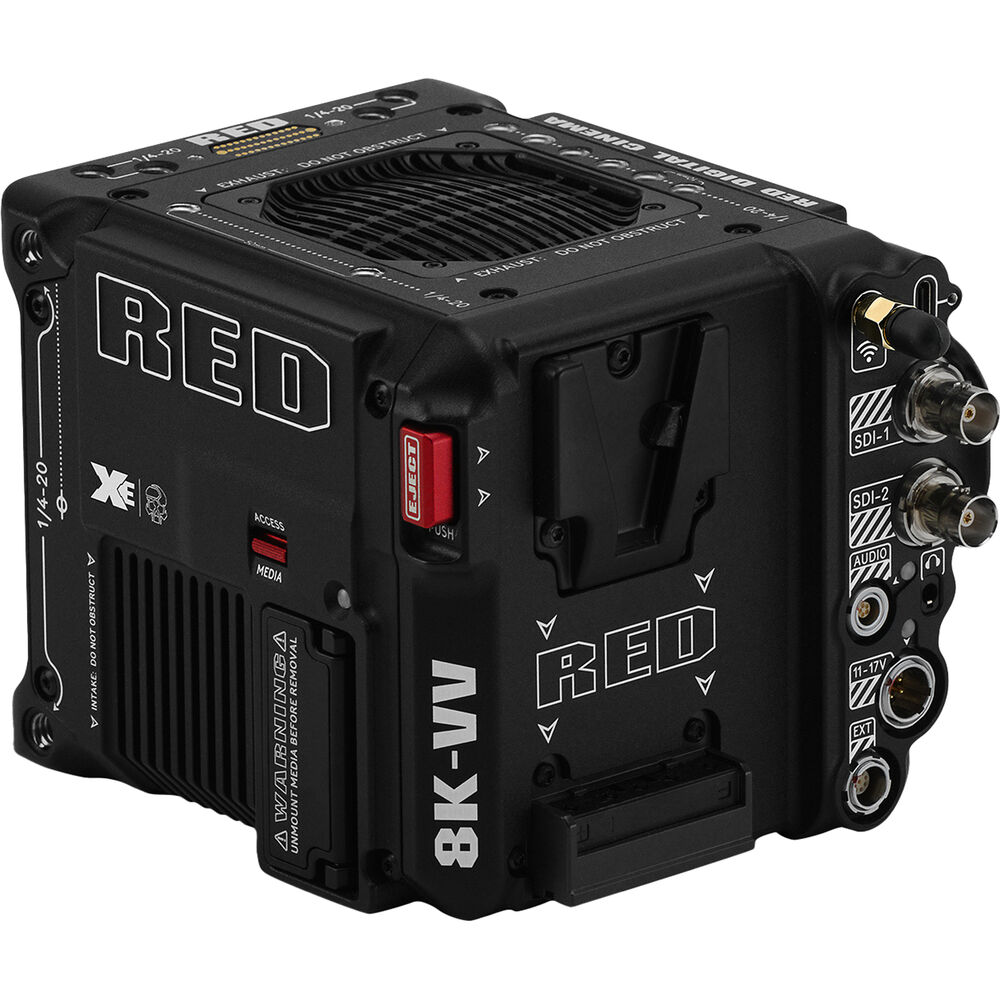

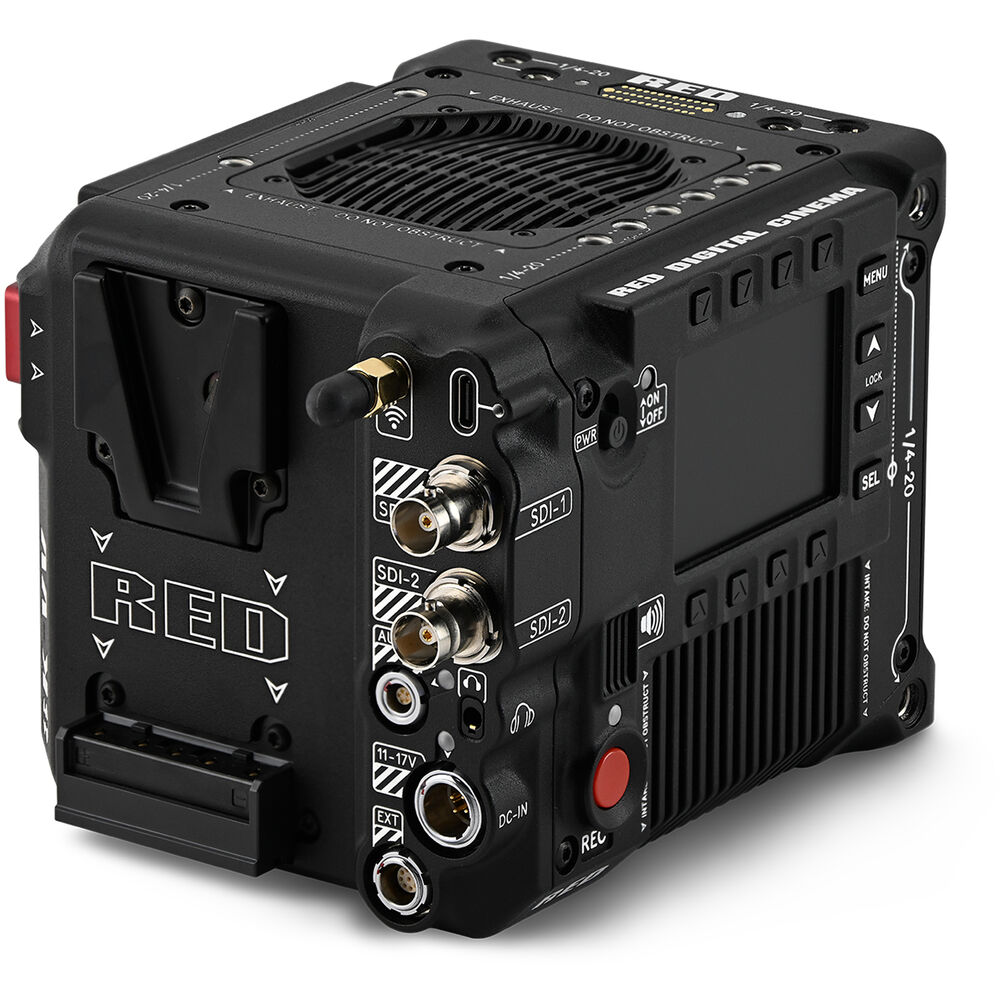

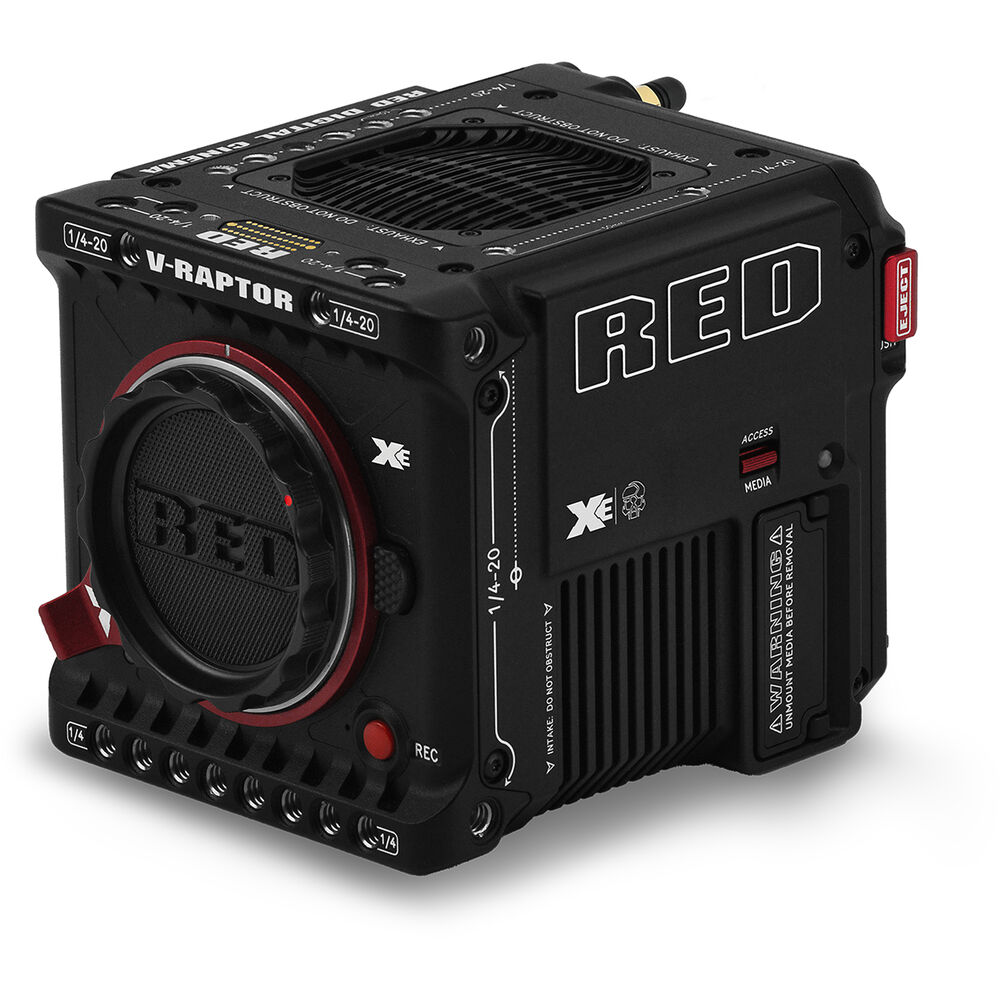

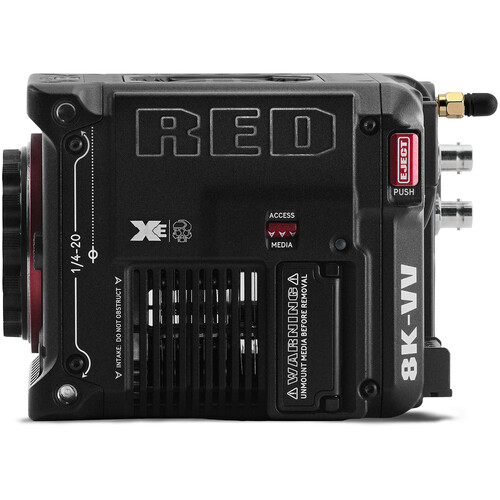

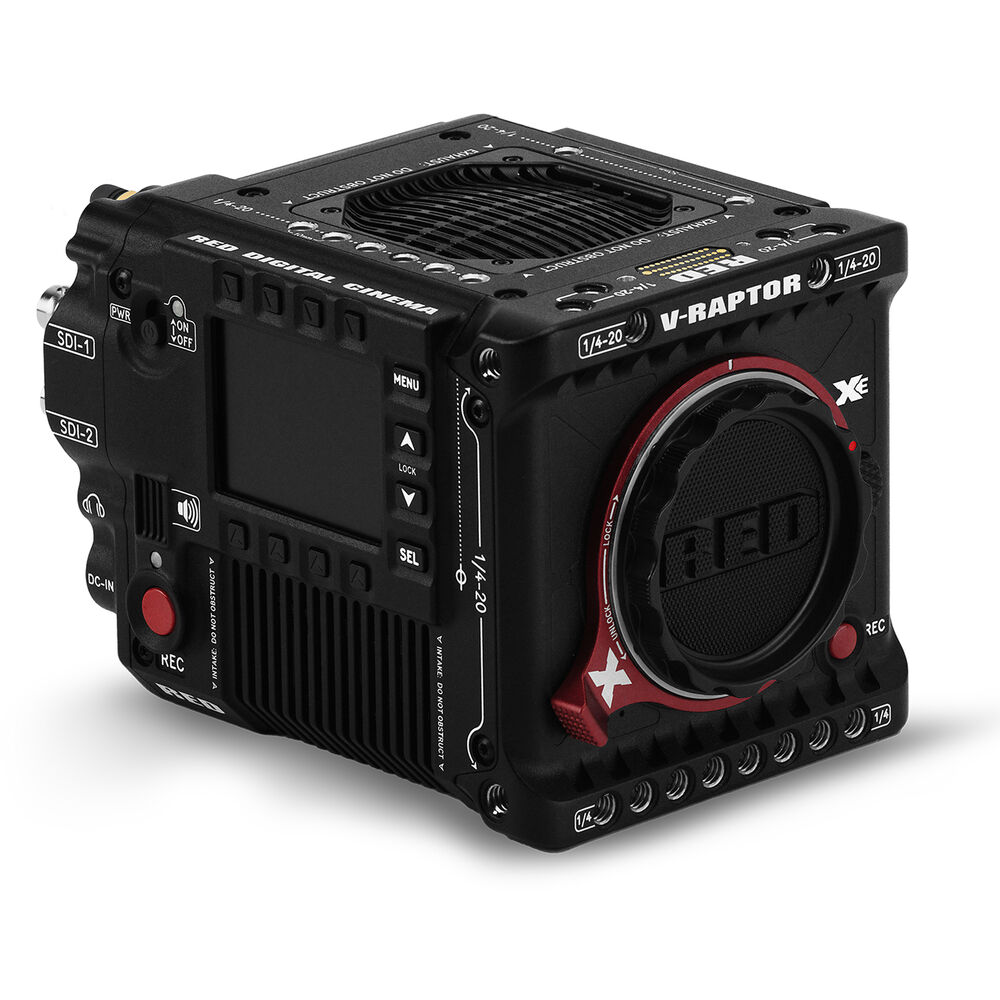

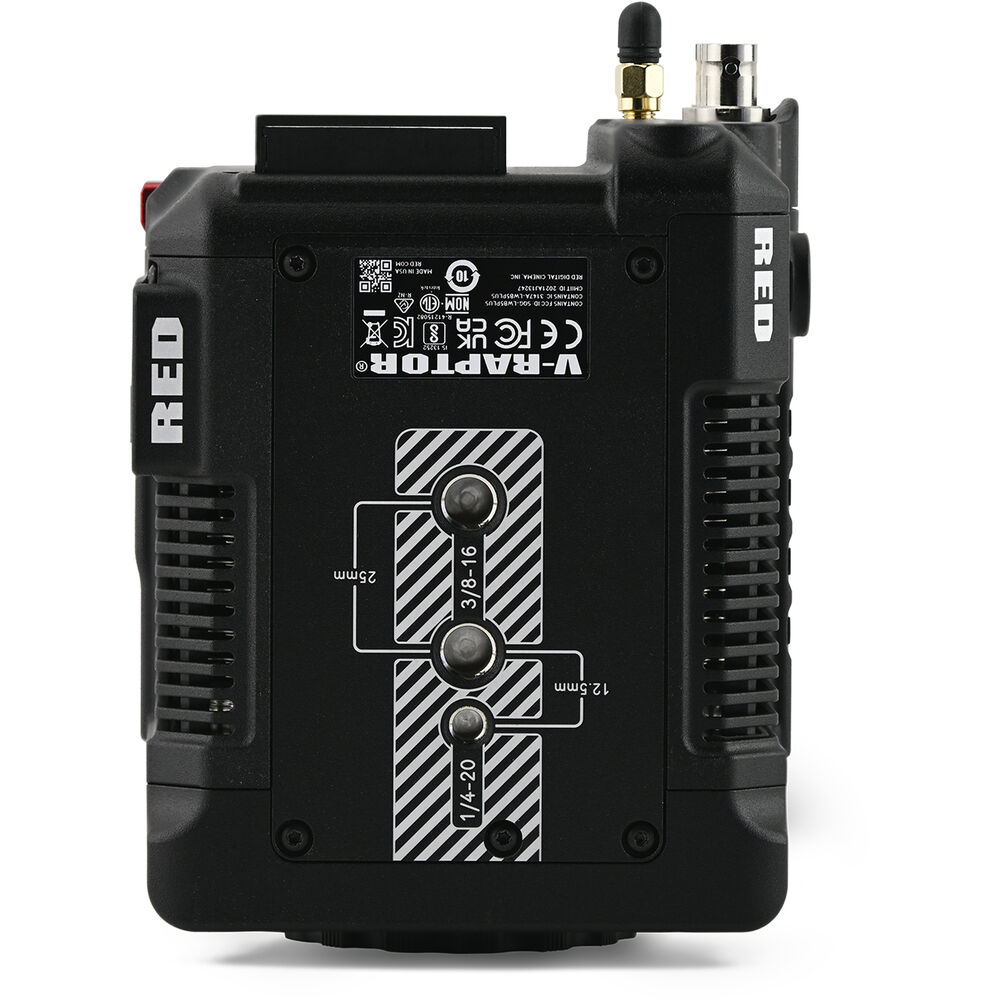

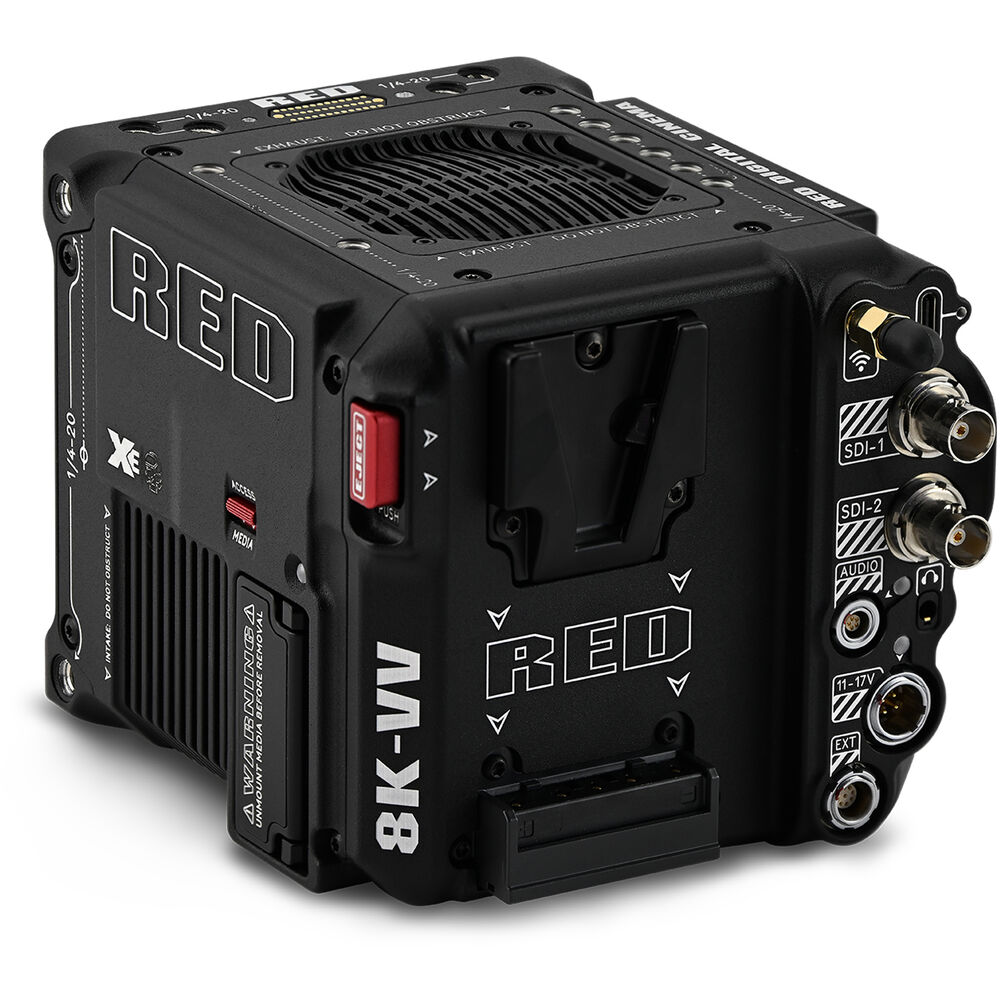

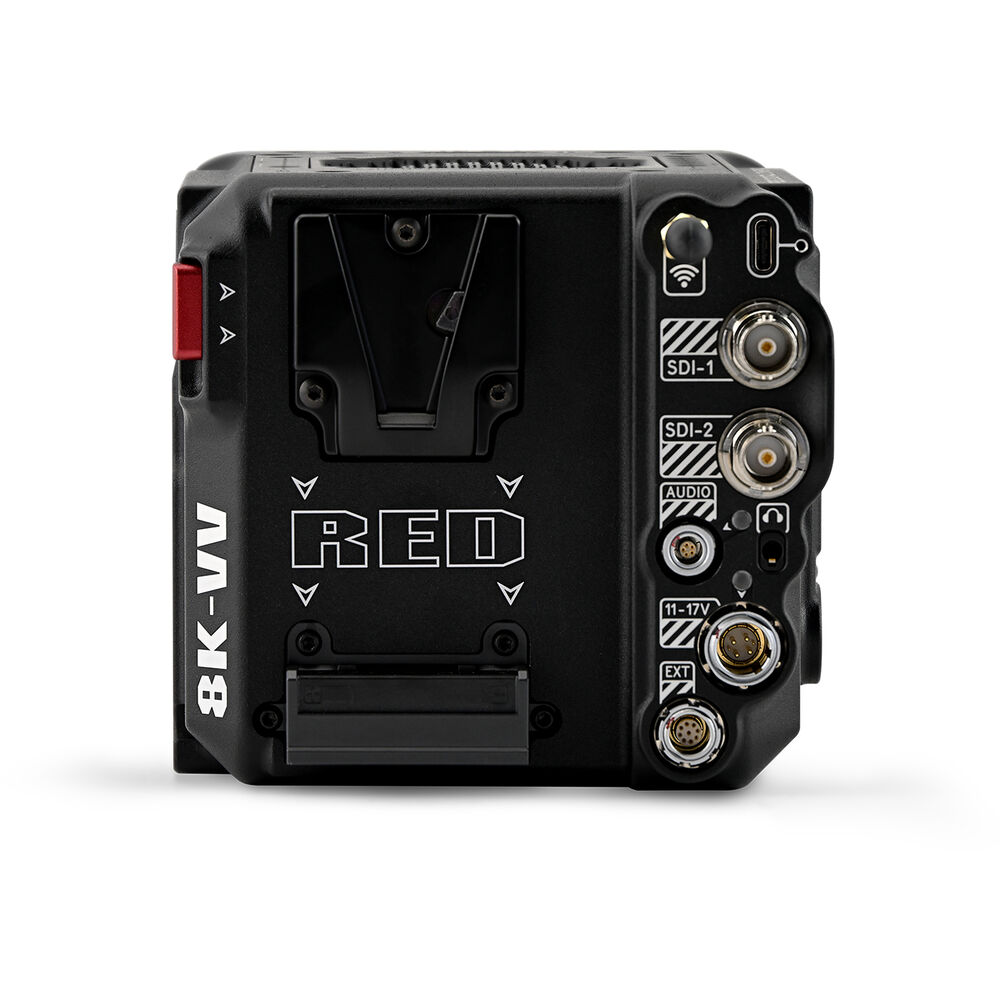

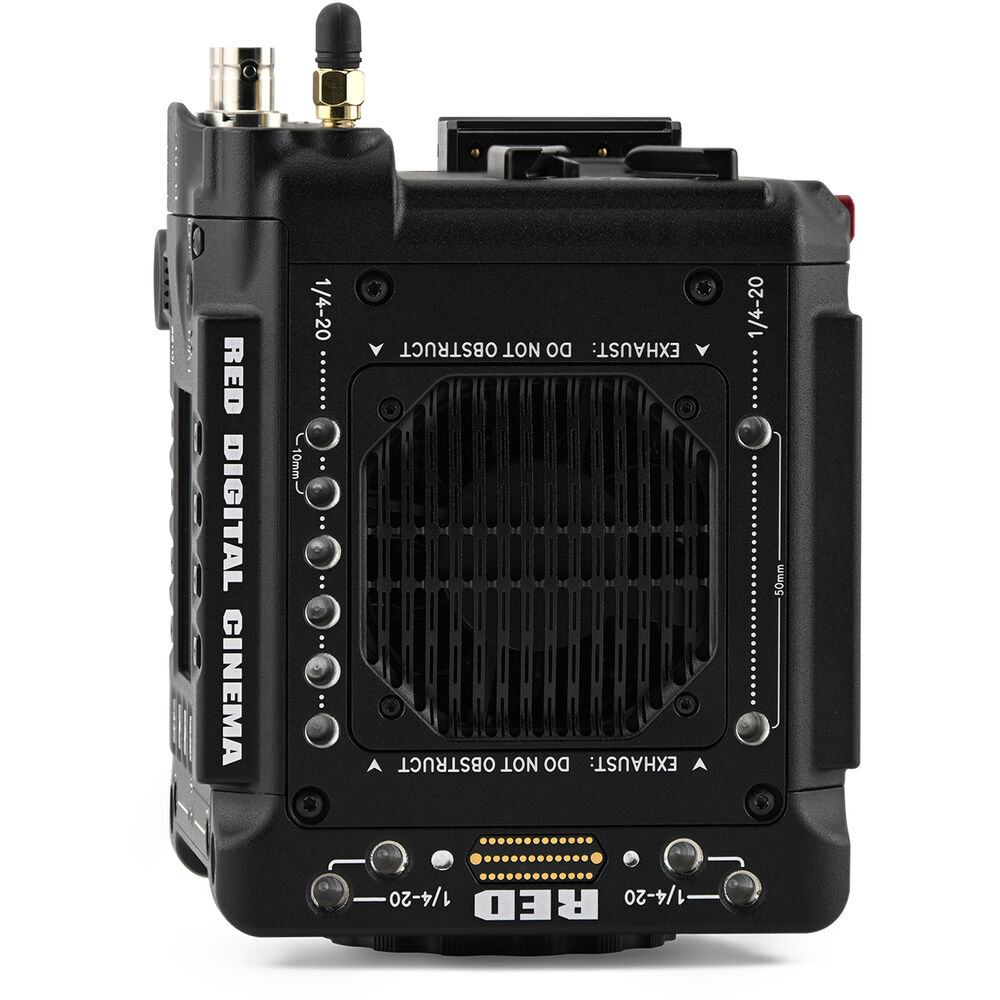

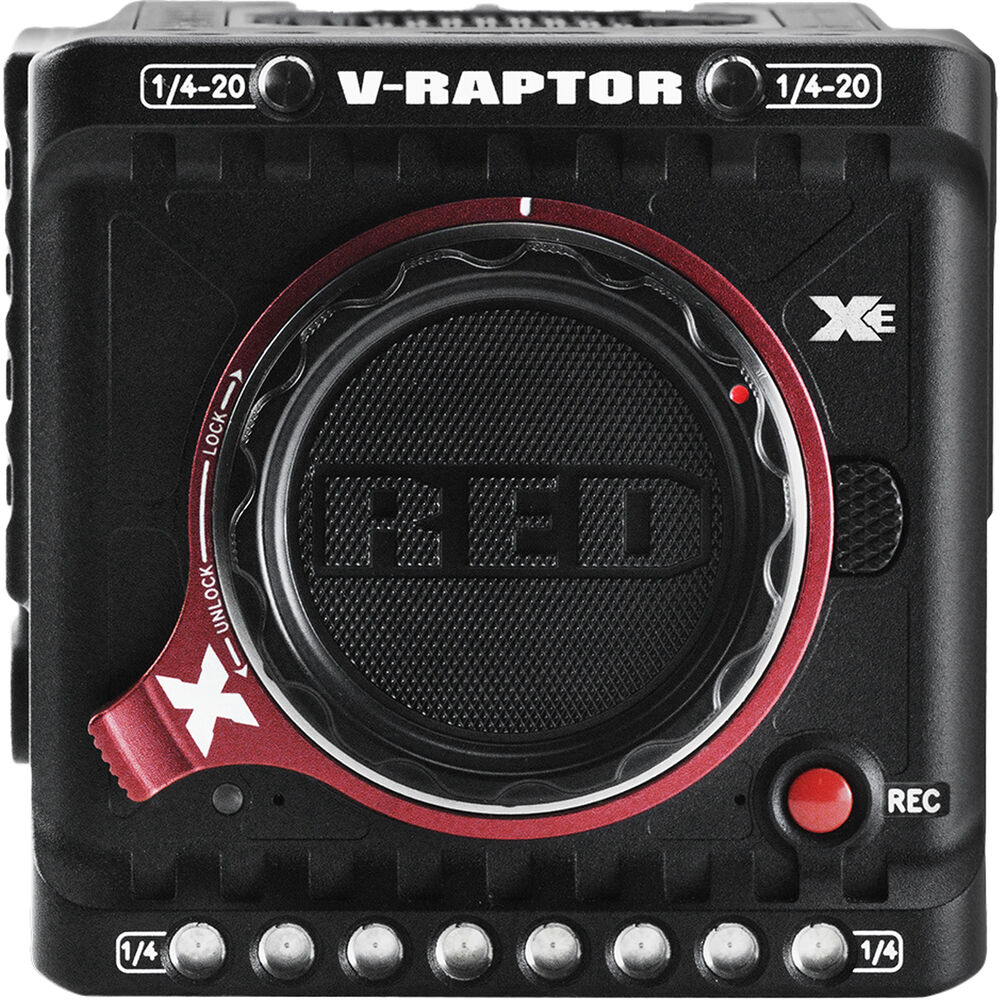

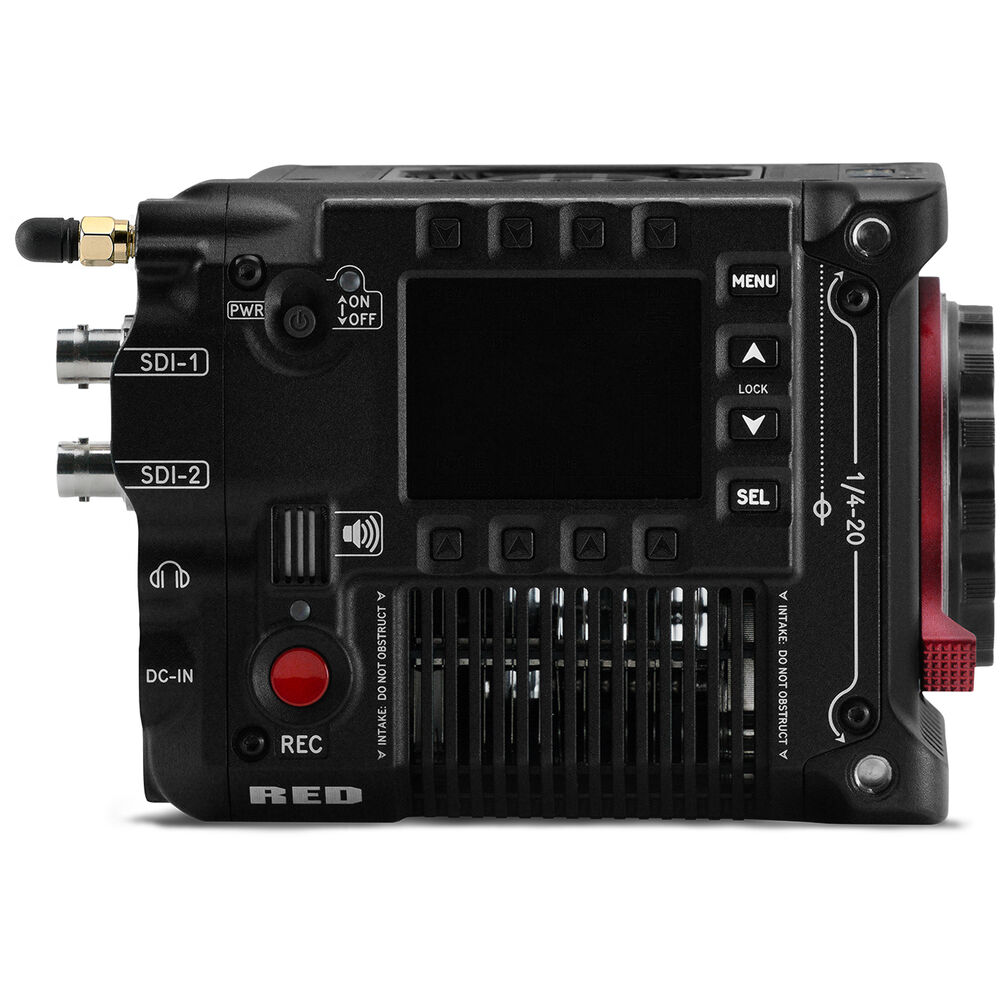

V-RAPTOR XE 8K VV DSMC3 Camera
RF to PL Adapter | Electronic ND Filter
DSMC3 RED Touch 7.0" LCD Monitor
Global Shutter Full-Frame VV Sensor
Supports up to 8K60, 800 MB/s Video
17+ Stops of Dynamic Range
Right-Side Assistant's User Interface
REDCODE Raw HQ & ProRes 4444 XQ Options
8 ms Shutter Scan Time | Advanced AF
Simultaneous ProRes Proxy Recording

The V-RAPTOR XE 8K VV Camera from RED DIGITAL CINEMA delivers the 8K global shutter and compact design of the V-RAPTOR X, while focusing on the core features essential to modern filmmaking. Built on RED's DSMC3 platform, the XE provides a large-format VV sensor in a lightweight 4 lb body, capturing 8K video in up to 60 fps with 17+ stops of dynamic range. Balancing high-end performance with class-leading value, the XE omits advanced Global Vision features like Phantom Track and Extended Highlights, but retains the same image quality, workflow flexibility, and robust connectivity that define RED's V-RAPTOR line.

Filmmakers benefit from the global shutter's 8 ms shutter scan time, advanced autofocus with face detection, simultaneous ProRes proxy recording, and dual 12G-SDI outputs for discrete monitoring. Compact, rugged, and ready for a variety of rig configurations, the XE is a cost-effective solution for productions requiring RED's flagship sensor technology.

Filmmakers benefit from the global shutter's 8 ms shutter scan time, advanced autofocus with face detection, simultaneous ProRes proxy recording, and dual 12G-SDI outputs for discrete monitoring. Compact, rugged, and ready for a variety of rig configurations, the XE is a cost-effective solution for productions requiring RED's flagship sensor technology.

8K VV Sensor with Global Shutter
The 35.4MP large-format VV sensor features a global shutter, eliminating the artifacts produced by rolling shutters in scenes with rapid motion or flashing lights. With a scan time of just 8 ms
Lens Mount
Canon RF
Image Sensor
40.96 x 21.6 mm (VistaVision) CMOS
Sensor Resolution
Effective: 35.4 Megapixel (8192 x 4320)
Image Stabilization
No
Internal Recording
REDCODE RAW
8192 x 4320 up to 60.00 fps
6144 x 3240 up to 80 fps
4096 x 2160 up to 120 fps
2048 x 1080 up to 240 fps
*Sensor Crops Video
ProRes 422/ProRes 422 HQ/ProRes 422LT/ProRes 4444/ProRes 4444XQ
DCI 4K (4096 x 2160) up to 120 fps
*Sensor Crops Video
ProRes 422 HQ Proxy
2048 x 1080 up to 60.00 fps
*Sensor Crops Video
REDCODE HQ
8192 x 4320 up to 60.00 fps
6144 x 3240 up to 80 fps
4096 x 2160 up to 120 fps
2048 x 1080 up to 240 fps
*Sensor Crops Video
Video Output
SDI/BNC
4096 x 2160 up to 60.00 fps
2048 x 1080p up to 60.00 fps
Media/Memory Card Slot
Single Slot: CFexpress Type B (CFast 2.0)
Video I/O
2x BNC (12G-SDI) Output
Mobile App Compatible
No
Battery Type
Micro V-Mount
Imaging
Lens Mount
Canon RF
Lens Communication
Yes
Image Sensor
40.96 x 21.6 mm (VistaVision) CMOS
Sensor Resolution
Effective: 35.4 Megapixel (8192 x 4320)
Image Stabilization
No
Built-In ND Filter
No
Built-In CC Filter
No
Internal Filter Holder
No
Capture Type
Stills & Video
Exposure Control
Shutter Type
Electronic Global Shutter
Signal-to-Noise Ratio
Not Specified by Manufacturer
Advertised Dynamic Range
17 Stops
Focus
Focus Modes
Automatic, Continuous-Servo AF, Manual Focus, Single-Servo AF
Video Capture
Internal Recording
REDCODE RAW
8192 x 4320 up to 60.00 fps
6144 x 3240 up to 80 fps
4096 x 2160 up to 120 fps
2048 x 1080 up to 240 fps
*Sensor Crops Video
ProRes 422/ProRes 422 HQ/ProRes 422LT/ProRes 4444/ProRes 4444XQ
DCI 4K (4096 x 2160) up to 120 fps
*Sensor Crops Video
ProRes 422 HQ Proxy
2048 x 1080 up to 60.00 fps
*Sensor Crops Video
REDCODE HQ
8192 x 4320 up to 60.00 fps
6144 x 3240 up to 80 fps
4096 x 2160 up to 120 fps
2048 x 1080 up to 240 fps
*Sensor Crops Video
Video Output
SDI/BNC
4096 x 2160 up to 60.00 fps
2048 x 1080p up to 60.00 fps
Fa
RED DIGITAL CINEMA V-RAPTOR XE 8K VV Camera (Canon RF)
DSMC 150W AC Power Adapter

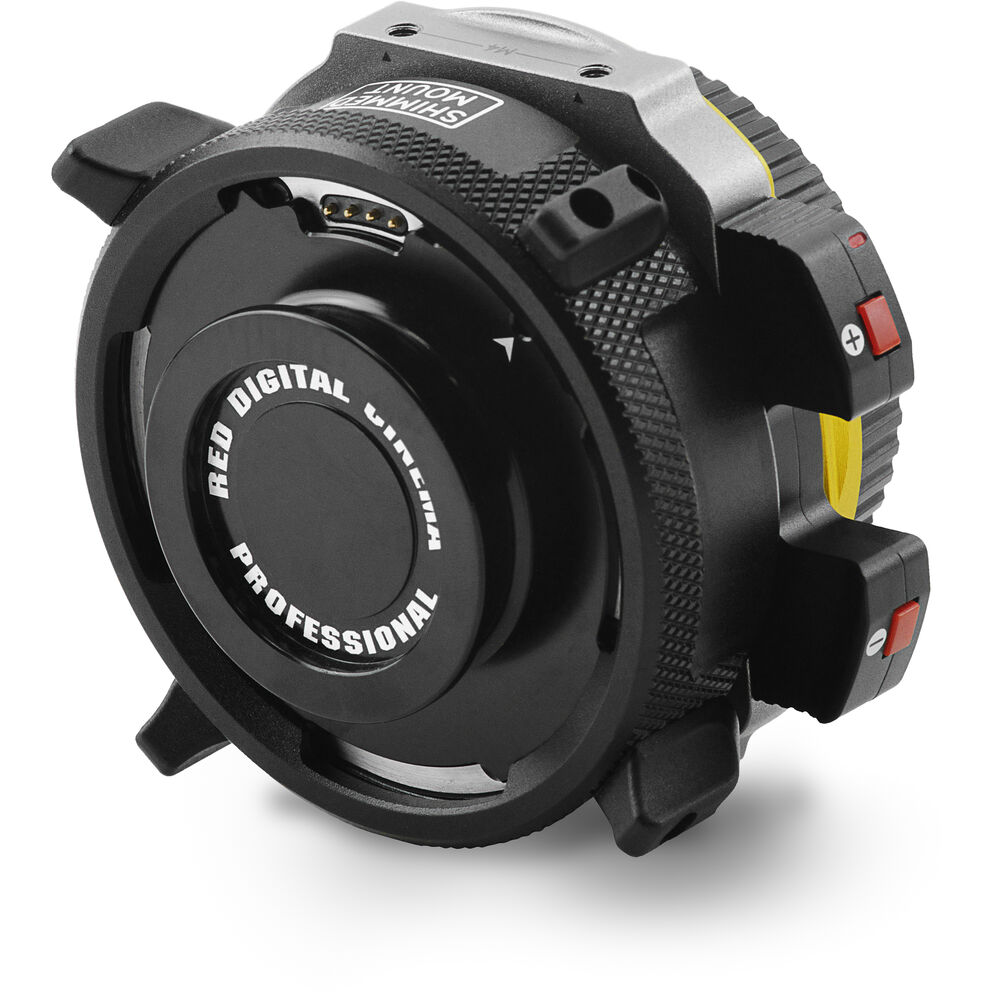

RED DIGITAL CINEMA V-RAPTOR RF to PL Adapter with Electronic ND Filter Pack
Electronic ND Filter
Clear Filter
PL-Mount Shim Set
V-RAPTOR RF to PL Support Bracket Set (2)

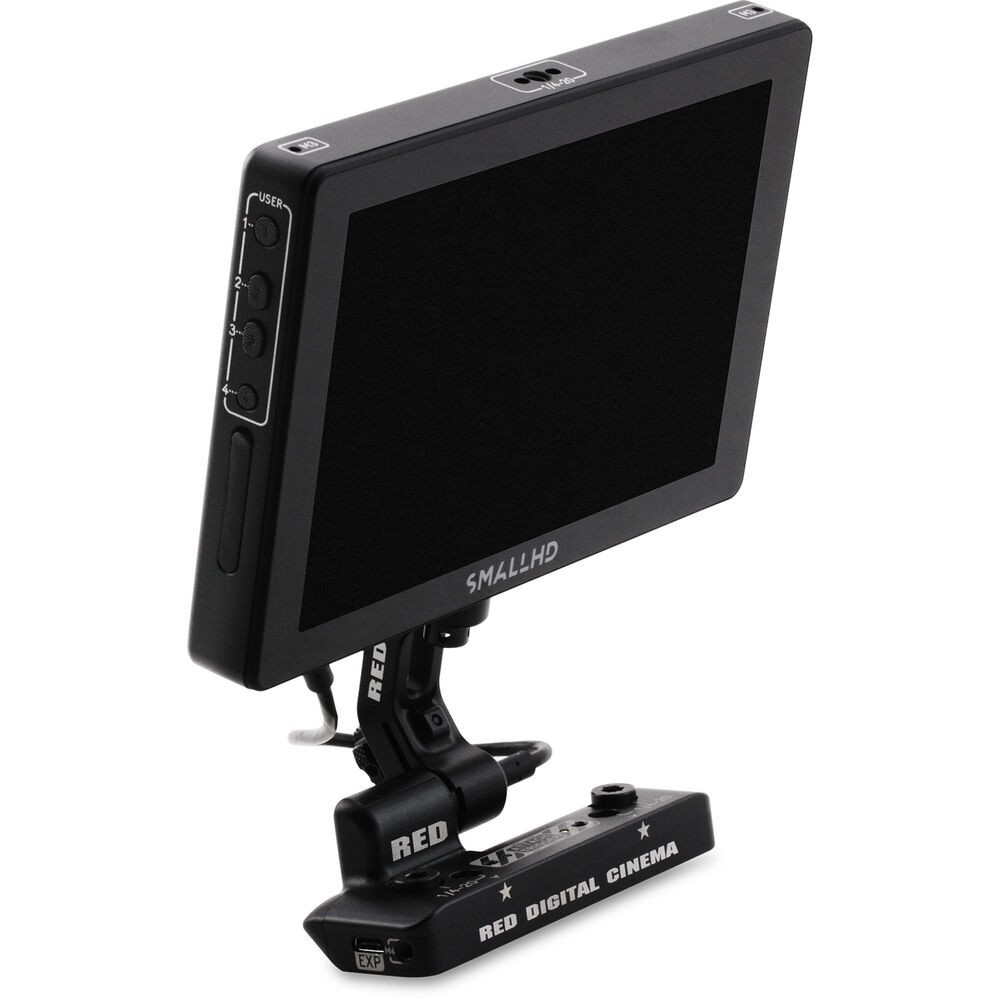

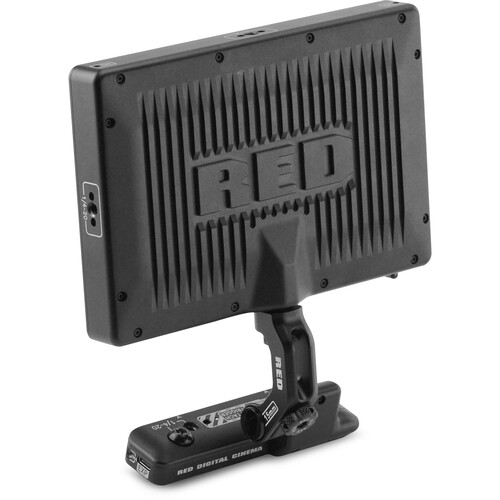

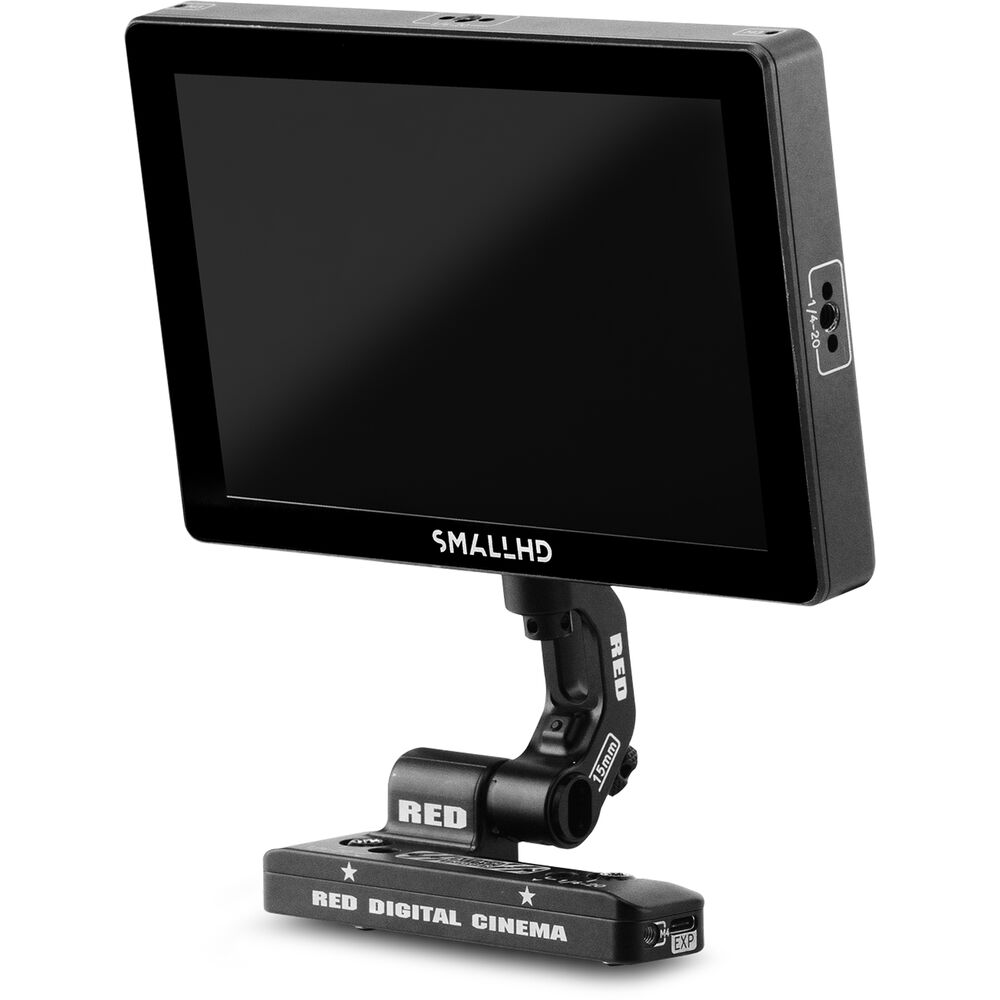

RED DIGITAL CINEMA DSMC3 RED Touch 7.0" LCD with Rigid Hinge
Rigid Hinge Arm
DSMC3 RMI Cable

RED DIGITAL CINEMA KOMODO Outrigger Handle
