HD3G-NDI-200 - AidaEAN  0783970765147

General
Control: OSD Button or Web UI
Image Sensor: 1/2.8" Progressive CMOS
Control Protocol: VISCA RS485, VISCA Over IP
Lens: C/CS-Mount 4 mm HD Lens
Resolutions:
1080p: 60/59.94/50/30/29.97/25/24/23.98 fps
1080i: 60/59.94/50 fps
720p: 60/59.94/50/30/29.97/25
IP Rate: 1920 x 1080 at 3-60 fps, 1280 x 720 at 3-60 fps, 1024 x 576 at 3-60 fps, 620 x 360 at 3-60 fps
Streaming: RTSP, RTMP
Color Spaces: 4:2:2 (YCbCr) 10-Bit
Effective Pixels (H x V): 1920 x 1080 (Pixel Size: 2.9 µm Horizontal x 2.9 µm Vertical)

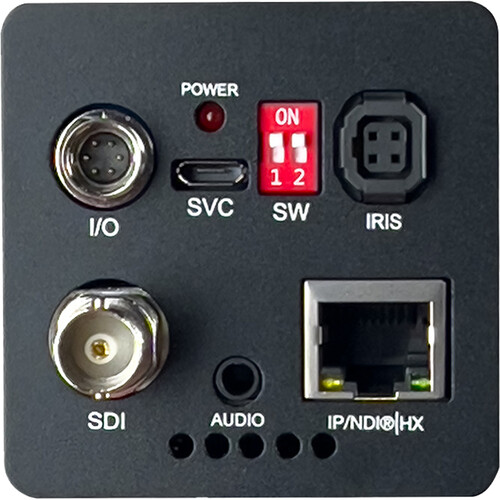

Inputs/Outputs
Video I/O: 1x BNC (3G-SDI) Output
Audio I/O: 1x 1/8" / 3.5 mm TRS Input
Other I/O: 1 x RJ45

Power
Power Source: AC Adapter with Power Brick (Included), PoE (Built-In)
DC Input Power: 9 to 15 VDC

Physical
Mounting: 2x 1/4"-20 Thread
Color: Black
Operating Conditions: 32 to 104°F / 0 to 40°C
Dimensions: 5 x 2.1 x 2.1" / 127 x 54 x 54 mm
