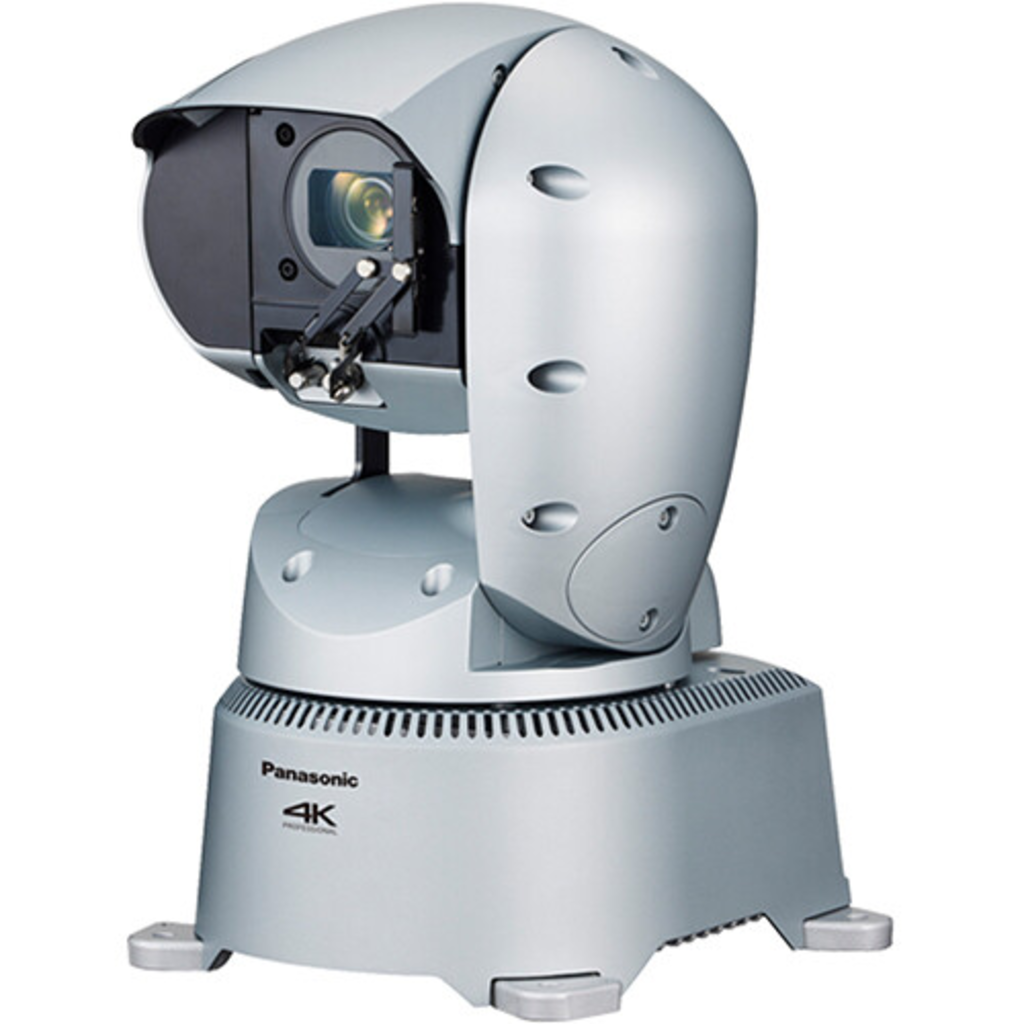

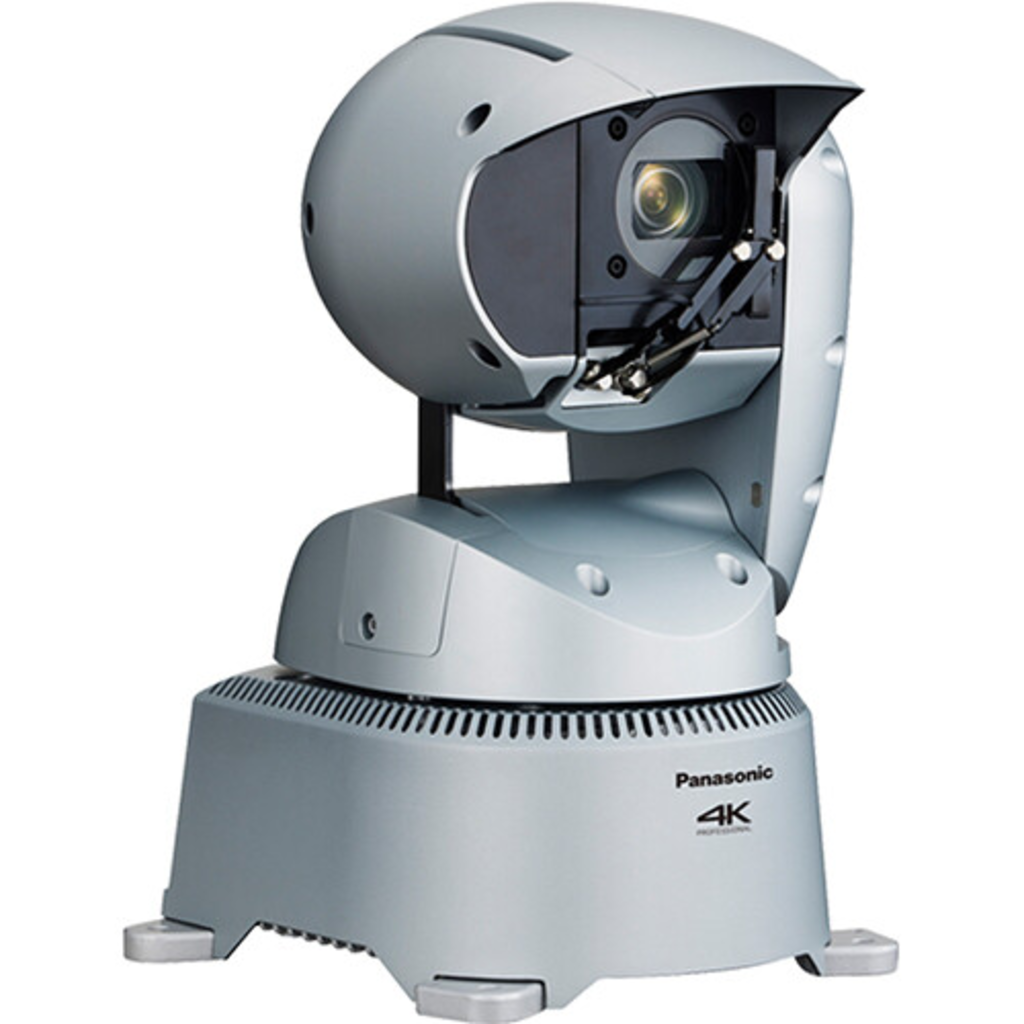

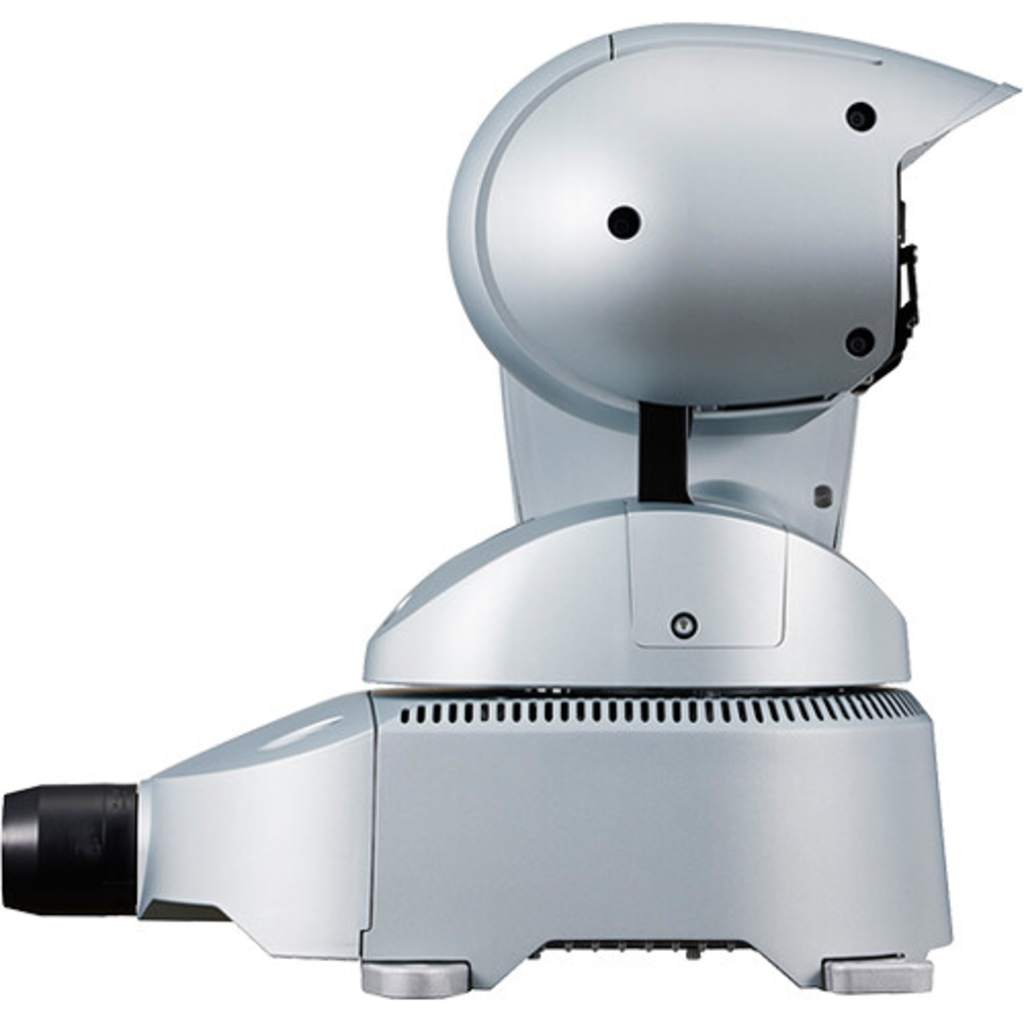

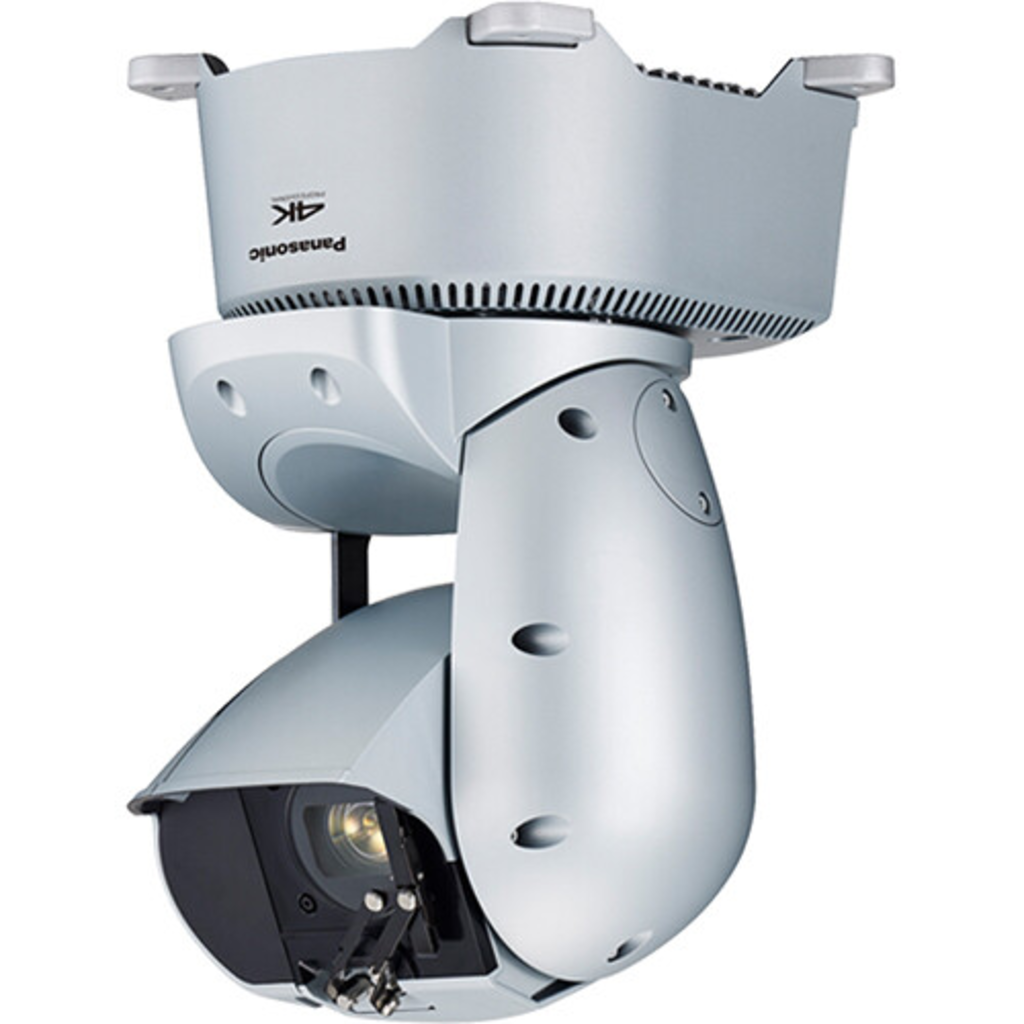

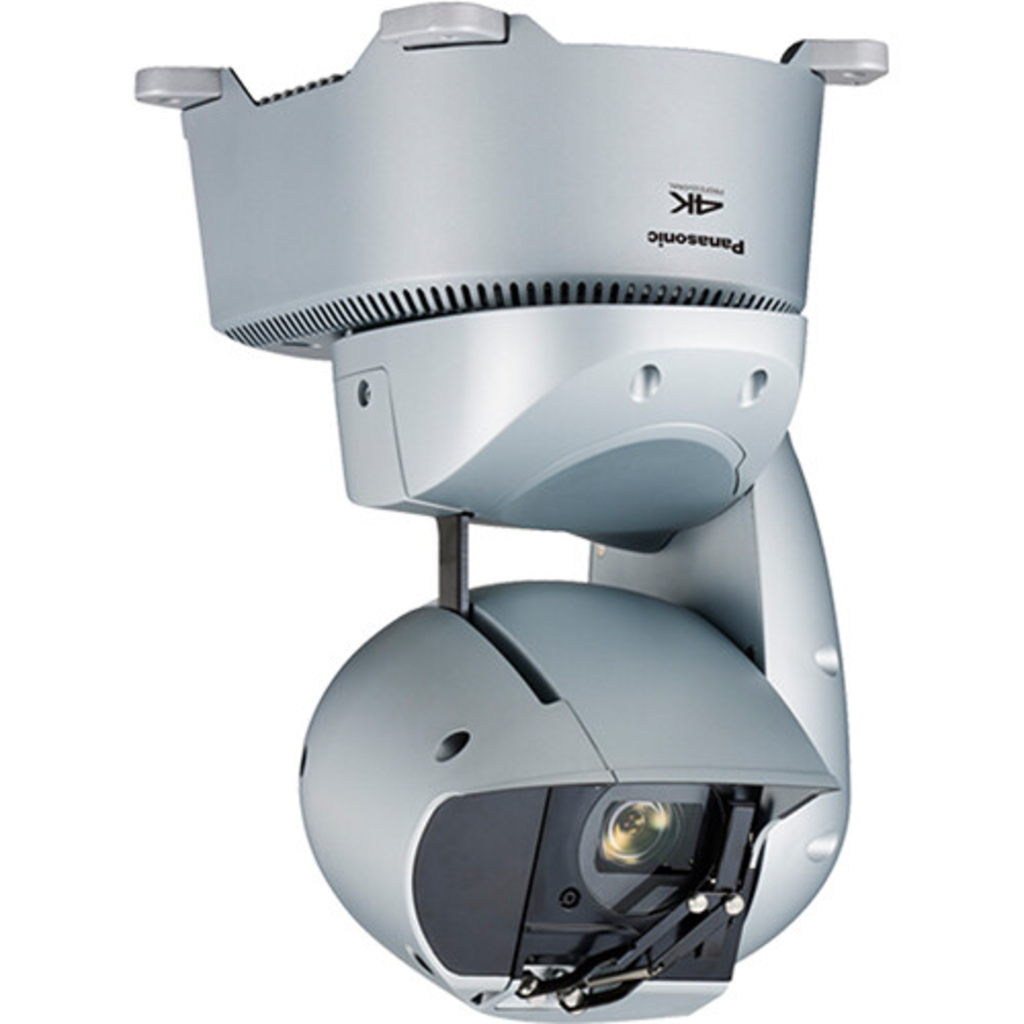

Panasonic UHD 4K Outdoor SDI/NDI PTZ Camera with 24x Optical Zoom CMOS

Add an outdoor, weather-resistant PTZ camera to your security, event, or broadcast production with the AW-UR100 UHD 4K Outdoor PTZ Camera from Panasonic.
The AW-UR100 uses a 1/2.5" UHD 4K MOS sensor to output clear video up to UHD 4K60. The IP65-rated camera stands up to the elements with its salt-resistant silver finish and built-in wiper, heater, and defroster.
Three stabilization functions help keep images captured with the 24x optical zoom lens smooth, even when mounted in windy environments.
It also features a 10x digital zoom to extend your range even further.

Video is output via 3G-SDI, 12G-SDI, and SFP+ optical fiber connections.
The camera supports IP protocols like NDI, SRT, and RTMP.
A genlock input supports black burst sync and tri-level synchronization, while a D-Sub 9-pin connector offers an audio input.
Power the AW-UR100 using PoE++ or via a separately available power supply.
Control can be achieved via IP or RS-422 connections or with the integration of separately available remote camera controller.

24x Optical Zoom, Wide Horizontal Angle of View

The camera's wide-angle lens features a horizontal angle of view of 74.1° at its widest and 3.3° at the tele end.
The 24x optical zoom further expands the shooting range of the AW-UR100.

Three Image Stabilization Modes

Three types of image stabilization - Optical Image Stabilization (OIS), Electronic Image Stabilization(EIS), and Dynamic Image Stabilizing System (DISS) - ensure image capture remains stable regardless of environmental factors.
Easily mount your camera on a high pole and resist wind velocities up to 15 m/sec DISS facilitates pan/tilt function and has improved responsiveness to minimize trembling and maintain smooth rotation.
The OIS and EIS in combination provide two-step vibration correction for a stable image regardless of the installation environment.

Durability in Harsh Environments

The paint and resin used in t
Imaging
Image Sensor: 1/2.5"-Type CMOS
Sensor Resolution:
- Actual: 8.49 Megapixel (3864 x 2196)
- Effective: 8.29 Megapixel

Image Stabilization
Digital
Optical in Integrated Lens

Lens
Focal Length: 4.12 to 98.9mm (35mm Equivalent: 25 to 600mm)
Optical Zoom Ratio: 24x
Max Digital Zoom: 10x
Field of View:
- Horizontal: 74.1 to 3.3°
- Vertical: 46 to 1.9°
- Diagonal: 81.8 to 3.8°
Maximum Aperture: f/1.8 to 4

Video Capture
External Recording Modes:
° SDI/BNC / Optical Fiber
3840 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps
1920 x 1080p at 24.00/25/29.97/50/59.94 fps
1920 x 1080PsF at 23.98/25/29.97 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 50/59.94 fps
Audio Recording: 2-Channel AAC Audio
Broadcast Output: NTSC/PAL
IP Streaming:
° NDI:
3840 x 2160
1920 x 1080
1280 x 720
° NDI|HX2:
1920 x 1080
1280 x 720

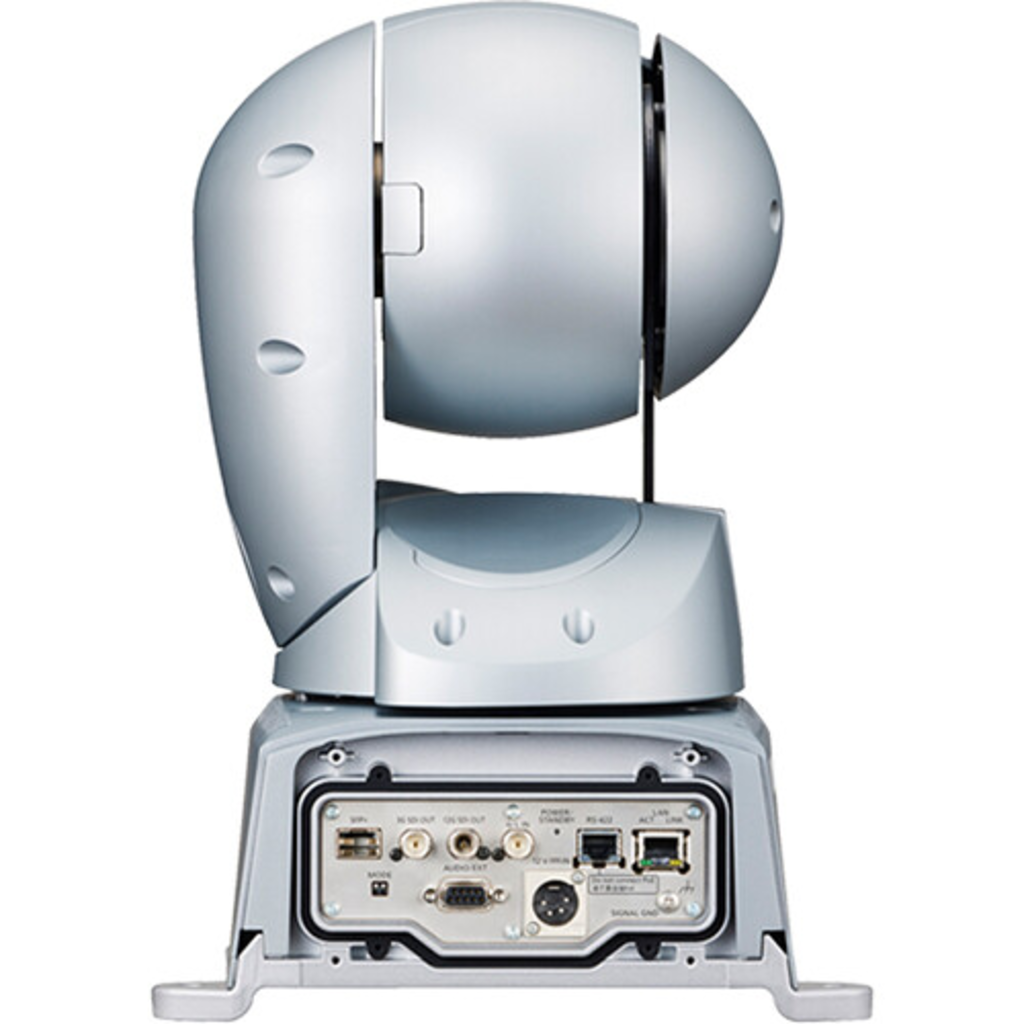

Interface
Video I/O:
- 1 x BNC (12G-SDI) Output
- 1 x BNC (3G-SDI) Output
Audio I/O: 1 x D-Sub 9-Pin Mic/Line (+48 V Phantom Power) Input
Other I/O:
- 1 x BNC (Genlock) Input
- 1 x RJ45 (RS-422)
- 1 x RJ45 (LAN)
Expansion Slots: 1 x SFP+ Slot

Power
PoE Support: PoE++ 802.3bt
Power I/O: 1 x XLR 4-Pin (10.8 to 24VDC) Input
Power Consumption: PoE: 42 to 57 VDC

Environmental
Operating Temperature: 5 to 113°F / -15 to 45°C
Operating Humidity: 10 to 100%
Storage Humidity: 10 to 95% (Non-Condensing)

General
Environmental Protection: Advertised as Outdoor Use/Water Resistant/Weather Resistant (Test Methodology Not Supplied IP65)
Mass: Approx. 9.0 kg (19.84 lb)
Dimensions: 258.0 mm x 367.0 mm x 392.0 mm (10.16 inches x 14.45 inches x 15.43inches) (including protrusions and cable cover)
Panasonic AW-UR100 UHD 4K Outdoor SDI/NDI PTZ Camera with 24x Optical Zoom
