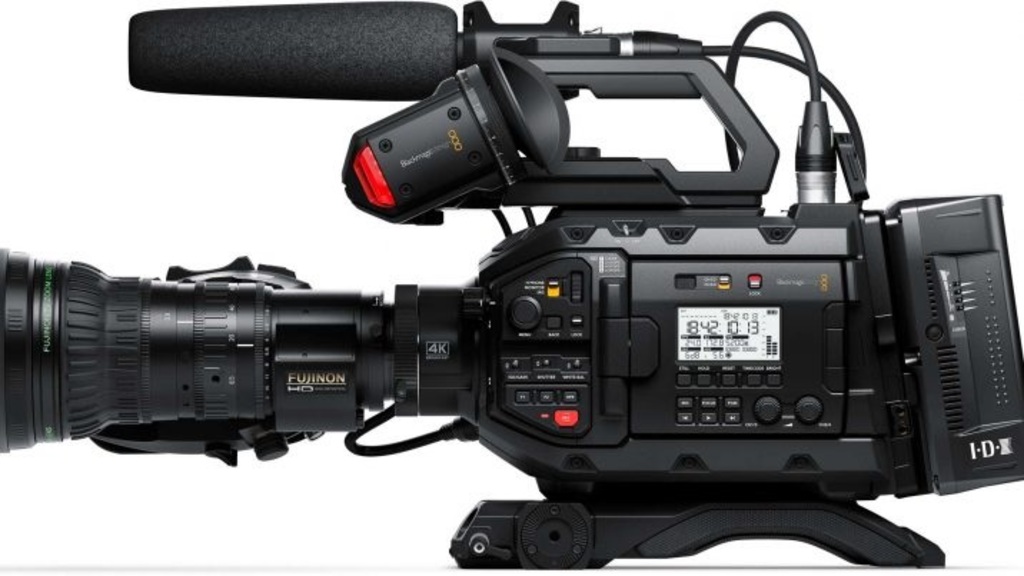

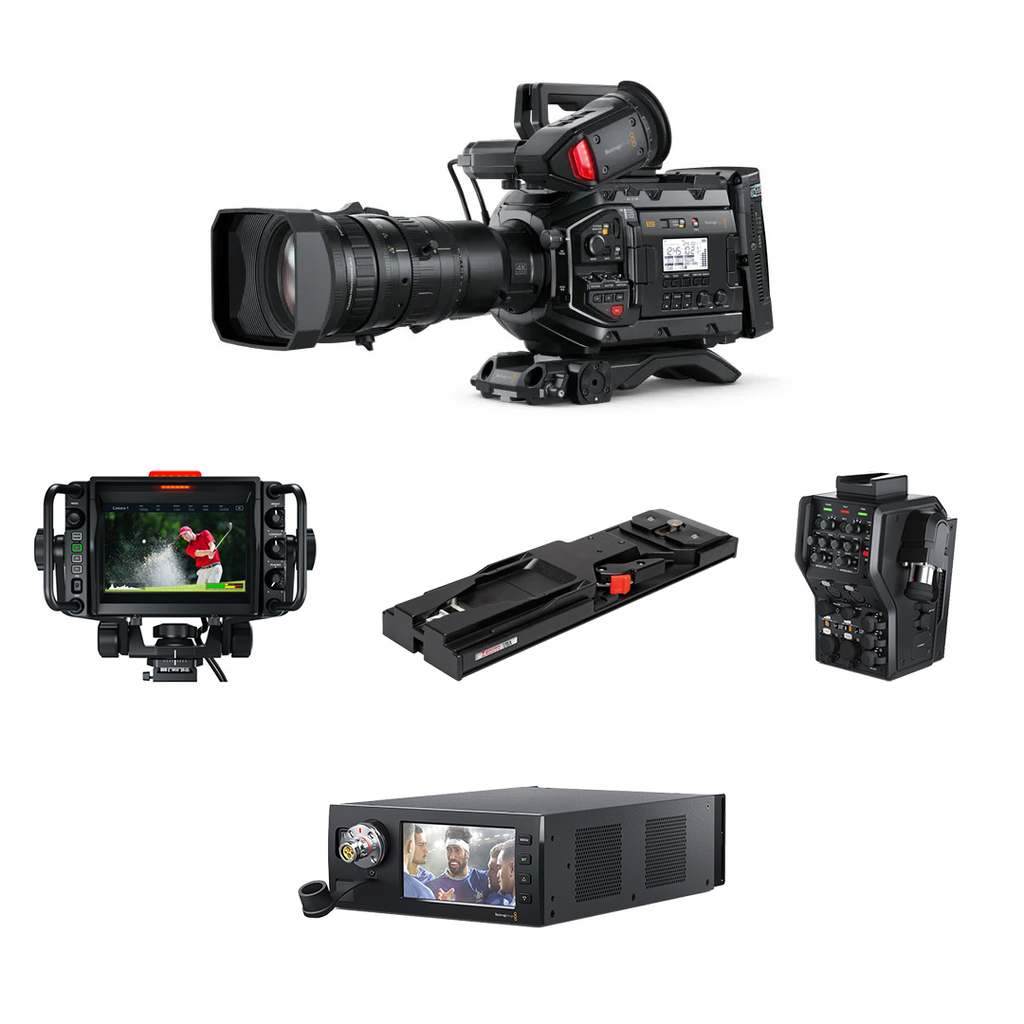

URSA Broadcast G2 Studio Fiber - Blackmagic

Camera Features
Effective Sensor Size

2/3 inch sensor size when using 4K B4 mount (Actual sensor size 13.056mm x 7.344mm)
Lens Mount

B4 2/3 inch
Lens Control

Electronic control via 12-pin broadcast connector. Control also possible via EF mount pins when using optional URSA Mini Pro EF Mount.
Dynamic Range

12 Stops+
Shooting Resolutions

3840x2160, 1920x1080
Frame Rates

Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Off-speed frame rates up to 60p.
Built in ND Filters

Four position ND filter wheel with clear, 2-stop, 4-stop and 6-stop ND filters.
Focus

Focus button turns on peaking, auto focus available using compatible lenses with focus servo.
Iris Control

Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video and extended video mode.
Screen Dimensions

4 inch.
Screen Type

LCD capacitive touchscreen.
Metadata Support

Automatically populated lens data from electronic B4 lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.
Controls

Touchscreen menus on 4 inch screen. Push buttons for other controls. 2 assignable shortcut keys.
Timecode Clock

Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Connections
Total Video Inputs

1 x SDI
Total Video Outputs

1 x SDI, 1 x SDI Monitoring.
SDI Rates

1.5G, 3G, 6G, 12G.
Analog Audio Inputs

2 x XLR switchable between mic, line and AES digital audio. Phantom power support.
Analog Audio Outputs

1 x 3.5mm headphone jack, supports iPhone microphone for talkback.
Reference Inputs

Tri-Sync/Black Burst/Timecode.
Remote Control

2 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses.
Computer Interface

USB Type-C for software updates.
Blackmagic URSA Broadcast
Audio
