Mini Converter - Analog to SDI 2EAN  9338716001341

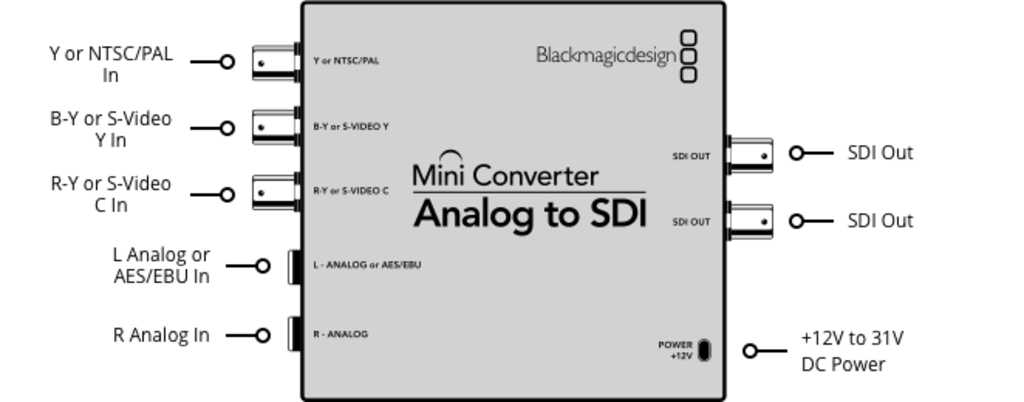

Connections
Input : 1) component, NTSC, PAL, and S-video via 3x BNCs
Output: 2) SDI (switchable between SD, HD & 3Gbs SDI)
Audio Analog: (2) channels of professional balanced analog with standard 1/4" jack connections
Digital: (2) channels of professional balanced digital with standard 1/4" jack connections, AES/EBU standard (Audio inputs are shared)

Power
Voltage: 12VDC

General

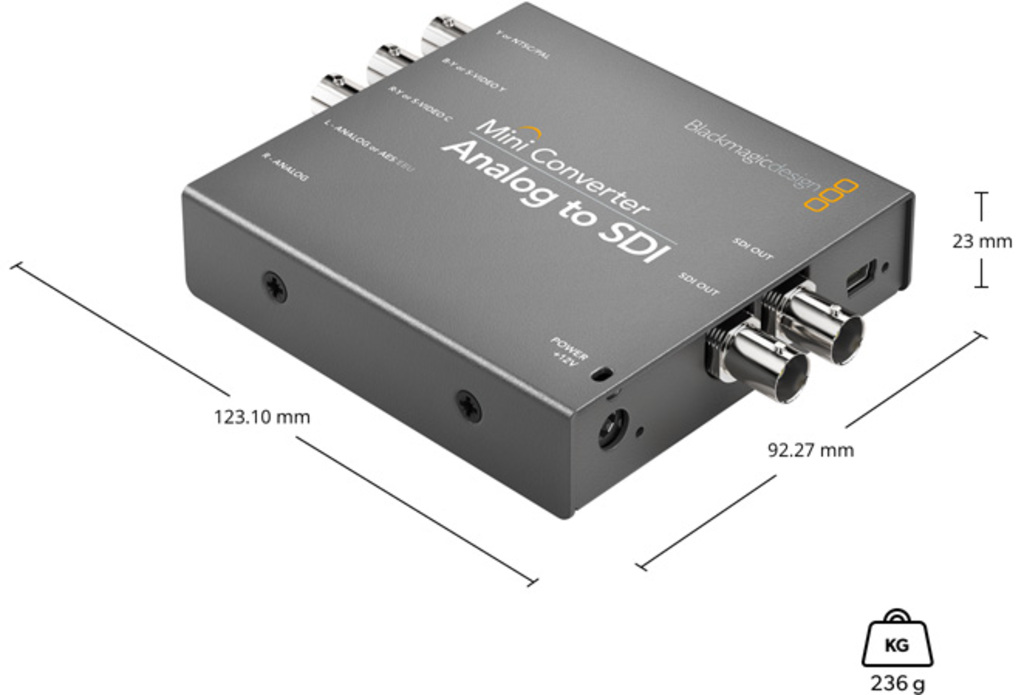

Dimensions (HxWxD) : 123,1 x 92,27 x 23 mm
Weight : 275 g

Packaging Info
Package Weight : 490 g (1.15 lb)
Box Dimensions (LxWxH): 14,24 x 13,7 x 6,6cm (5.6 x 5.4 x 2.6")
