HA5-12G-T-ST - AJA
Converters > Digital > Digital
₦ 2,729,961.43
VAT Included
VAT Included
Adcom - AJA
New
Available in 10 days

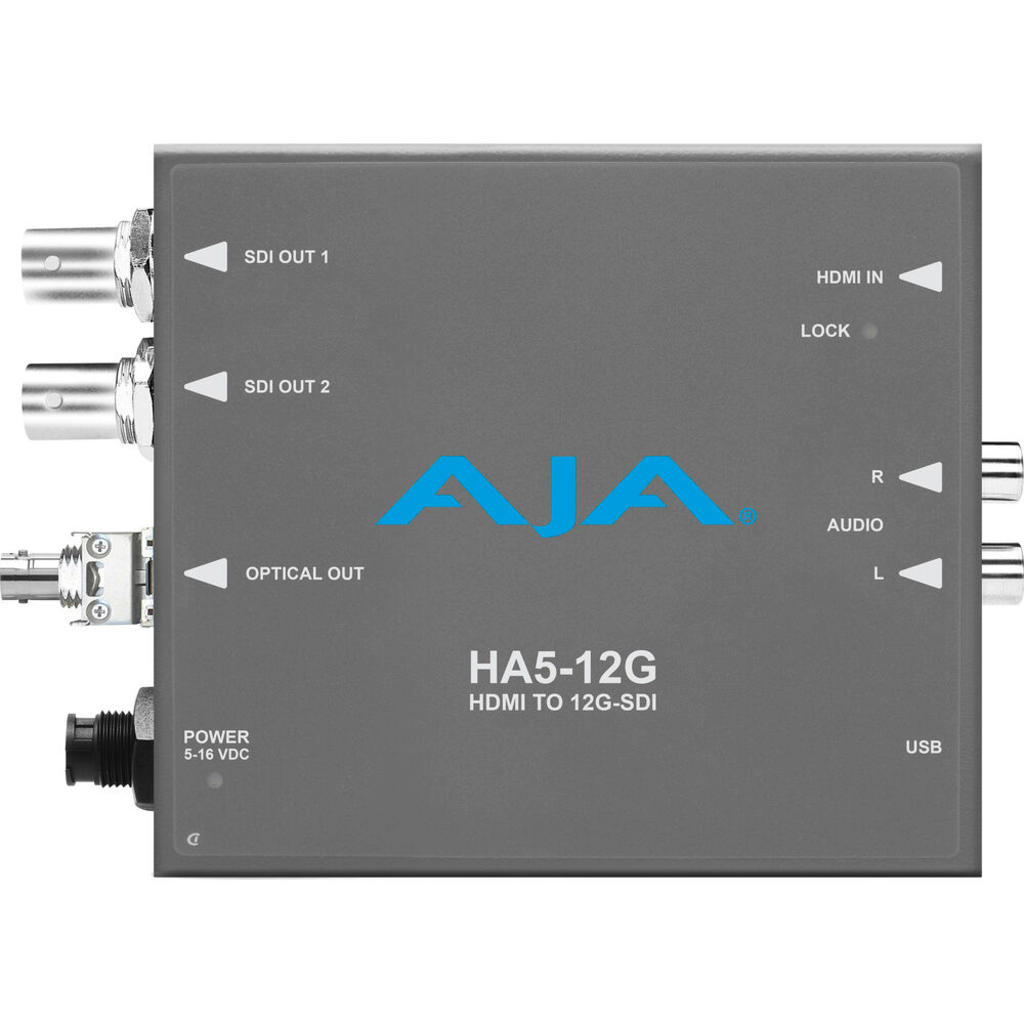

AJA Convert HDMI 2.0b up to 4K 60p to 12G-SDI 12G ST transmitter
° HDR
HDR, or High Dynamic Range, provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than standard signals allow.
This gives your imagery a more ‘dynamic' look and allows for natural true to life colors to be communicated to your audience.
HA5-12G provides support for analyzing HDR infoframe data coming in over HDMI when used with AJA Mini-Config software.
° 4K and UltraHD
Typical 4K signals use a resolution of 4096 x 2160 pixels while UltraHD signals measure 3840 x 2160.
This difference can prevent some monitors from being used either in full 4K workflows or in UltraHD workflows.
HA5-12G can compensate for these resolution differences, allowing UltraHD monitors to be used in 4K productions and vice versa.
HA5-12G also supports High Frame Rate (HFR) inputs.
4K/UltraHD signals at 50 or 60 fps can be fed into HA5-12G and output at up to 60p for viewing with appropriate HDMI 2.0 capable displays.
° Full HDMI Support
The equalized input on HA5-12G is engineered to support HDMI runs up to 30 meters in length using 24 gauge cable.
Embedded HDMI audio support allows for a single cable solution to avoid unnecessary clutter and simplify installation.
° 12G-SDI Support
The 12G-SDI outputs on HA5-12G allows extremely high quality signal representation for use with large raster and deep color workflows where image quality is critical.
° Pristine Image Quality
A 12G-SDI output with PLL clock filtering ensures a low jitter output for solid image stability.
An LED indicator shows the input source as either SD (green), HD (red) or 4K/UltraHD (orange) for fast and easy signal identification.
° Analog audio input
Using the two RCA analog audio inputs, embed any 2-channel analog audio signal into the SDI output to maintain proper audio sync throughout the workflow.
° DSLR support
HA5-12G accepts progressive standard definition signals at 525p and 625p f
