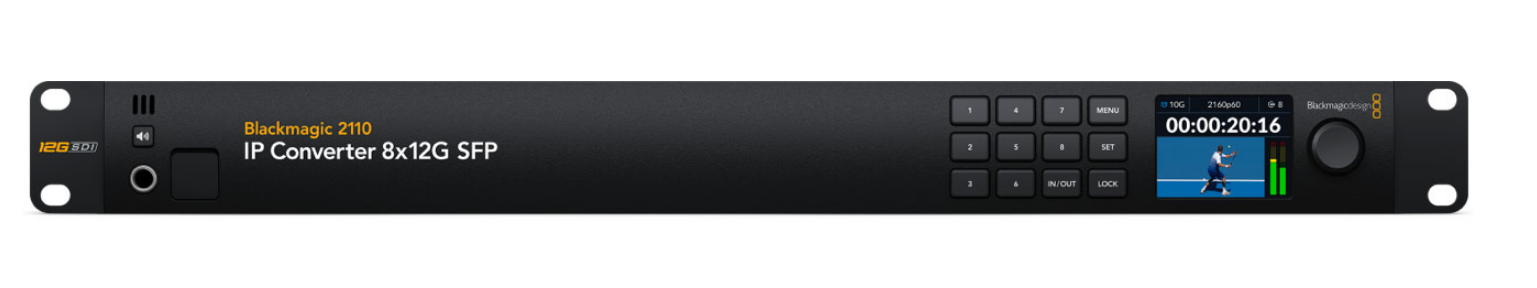

2110 IP Converter 8x12G SFP - Blackmagic
Converters > Digital <> Digital
EAN:9338716009125
₦ 4,503,932.61
VAT Included
VAT Included
Adcom - Blackmagic
New
Available in 15 days
Blackmagic SMPTE-2110 4x12G IP Video Converter supports HD and Ultra HD standards up to 2160p60
This converter is designed to add SMPTE-2110 IP video to 12G-SDI broadcast equipment.

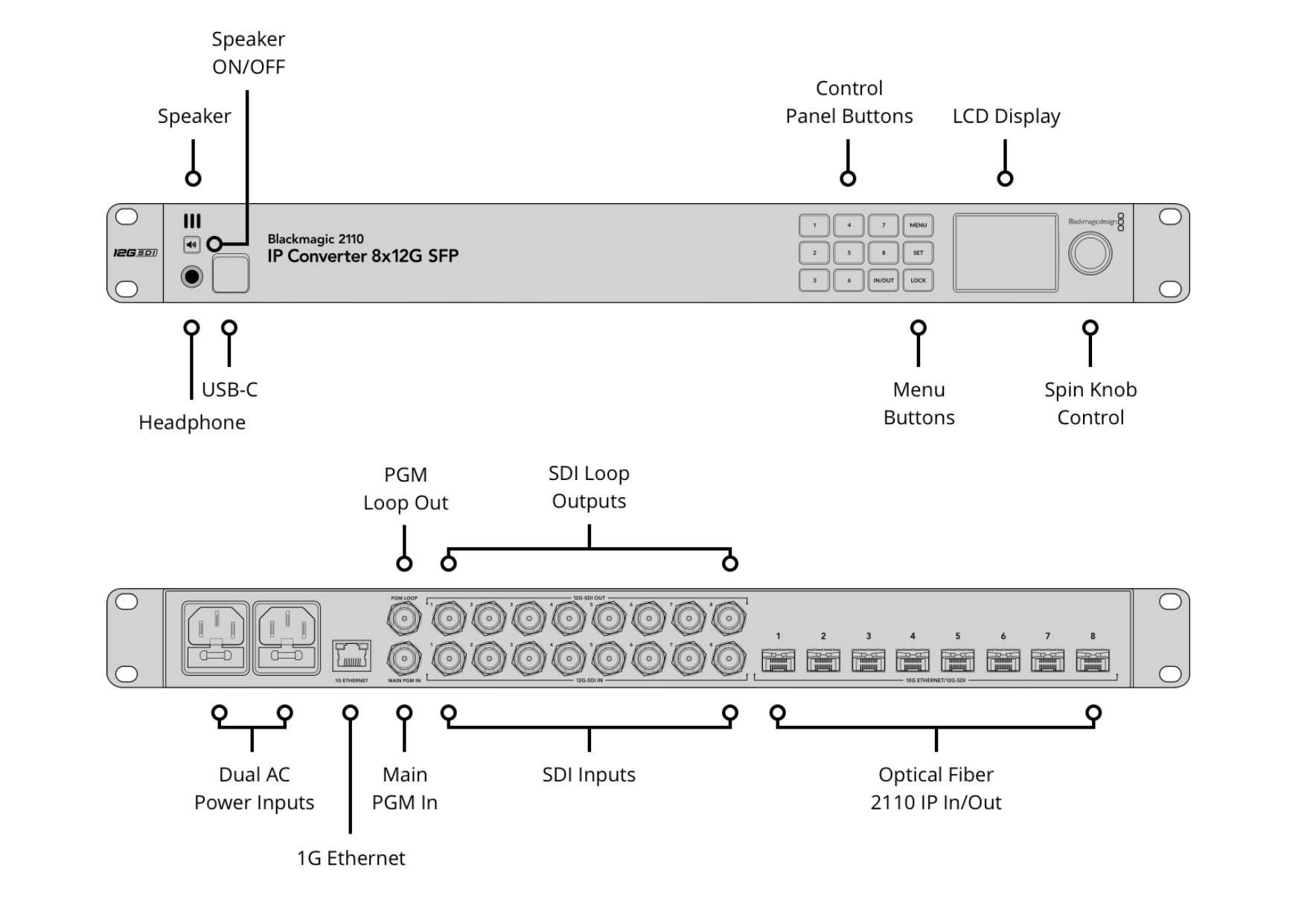

It features a 1RU design with 8 independent bidirectional 12G-SDI to SMPTE-2110 IP video converters using SFP modules so it can use optical fiber Ethernet modules for long distances. Each channel has a 12G-SDI input, but there's even a 12G-SDI program return input that sends to all channels.
This means you can send a single 12G-SDI input to all the connected devices from the single connection!
The Blackmagic 2110 IP Converters have been designed to integrate SDI equipment into 2110 IP broadcast systems.
The rack mount models can be installed in equipment racks right next to the equipment you're converting.
However with Blackmagic Studio Cameras, Blackmagic Audio Monitor 12G G3 and the SmartView 4K G3, you can build most of your SMPTE-2110 system without converters!
Plus most Blackmagic SMPTE-2110 IP video products can be remote powered!
But adding converters means you get a low cost way to transform all your video equipment to SMPTE-2110.
Simply add a Blackmagic 2110 IP Converter to live production switchers, disk recorders, streaming processors, cameras, TVs and more.
Conforms to the SMPTE-2110 IP Video Standard
Blackmagic 2110 IP products conform to the SMPTE ST-2110 standard for IP video, which specifies the transport, synchronization and description of 10 bit video, audio and ancillary data over managed IP networks for broadcast.
It can also re-sync SDI inputs to a common PTP clock or external gear can lock to the reference output that's also generated from the PTP clock.
Blackmagic 2110 IP products support SMPTE-2110-20 uncompressed video, SMPTE-2110-21 traffic shaping/timing, SMPTE-2110-30 audio and SMPTE-2110-40 for ancillary data.
Plus Blackmagic 2110 IP products support multicast, which is an efficient way of distributing video, audio and data from a single source to multiple destinations.
This converter is designed to add SMPTE-2110 IP video to 12G-SDI broadcast equipment.
It features a 1RU design with 8 independent bidirectional 12G-SDI to SMPTE-2110 IP video converters using SFP modules so it can use optical fiber Ethernet modules for long distances. Each channel has a 12G-SDI input, but there's even a 12G-SDI program return input that sends to all channels.
This means you can send a single 12G-SDI input to all the connected devices from the single connection!
The Blackmagic 2110 IP Converters have been designed to integrate SDI equipment into 2110 IP broadcast systems.
The rack mount models can be installed in equipment racks right next to the equipment you're converting.
However with Blackmagic Studio Cameras, Blackmagic Audio Monitor 12G G3 and the SmartView 4K G3, you can build most of your SMPTE-2110 system without converters!
Plus most Blackmagic SMPTE-2110 IP video products can be remote powered!
But adding converters means you get a low cost way to transform all your video equipment to SMPTE-2110.
Simply add a Blackmagic 2110 IP Converter to live production switchers, disk recorders, streaming processors, cameras, TVs and more.
Conforms to the SMPTE-2110 IP Video Standard
Blackmagic 2110 IP products conform to the SMPTE ST-2110 standard for IP video, which specifies the transport, synchronization and description of 10 bit video, audio and ancillary data over managed IP networks for broadcast.
It can also re-sync SDI inputs to a common PTP clock or external gear can lock to the reference output that's also generated from the PTP clock.
Blackmagic 2110 IP products support SMPTE-2110-20 uncompressed video, SMPTE-2110-21 traffic shaping/timing, SMPTE-2110-30 audio and SMPTE-2110-40 for ancillary data.
Plus Blackmagic 2110 IP products support multicast, which is an efficient way of distributing video, audio and data from a single source to multiple destinations.
