2110 IP Mini BiDirect 12G SFP - Blackmagic
Converters > Digital <> Digital
EAN:9338716009149
₦ 648,801.34
VAT Included
VAT Included
Adcom - Blackmagic
New
Available in 15 days

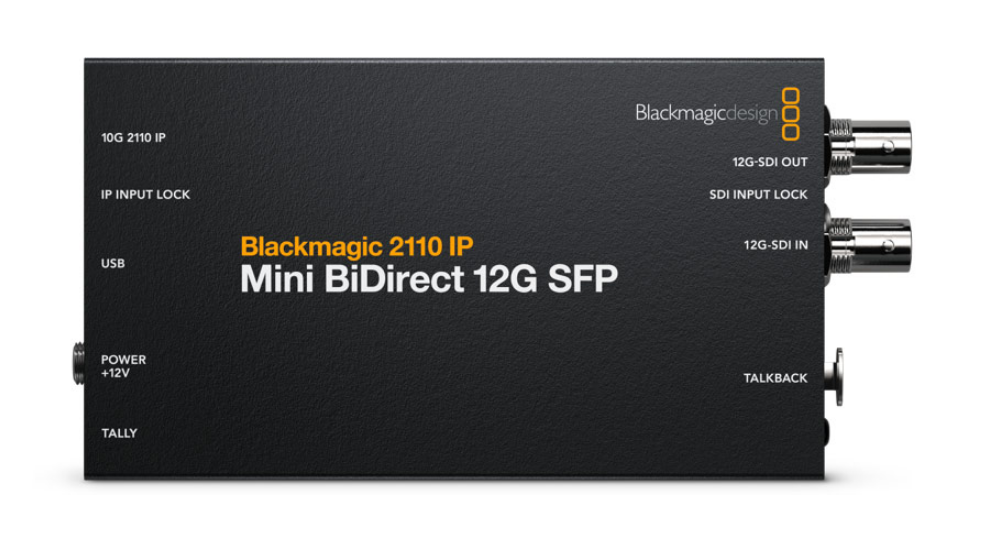

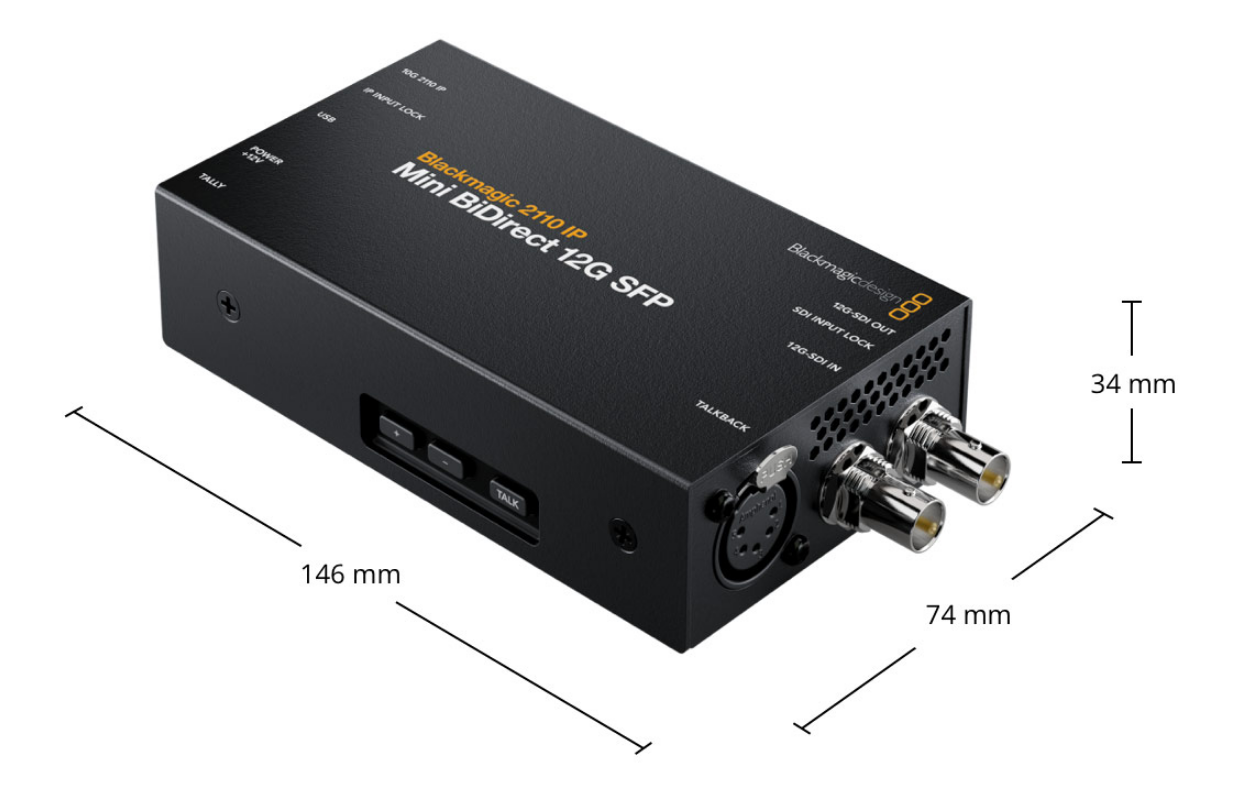

Blackmagic 2110 IP Mini BiDirect 12G SFP Bidirectional Converter, 12G-SDI to SFP, 4K UHD Video via SFP Fiber, PoE Power and 10G Ethernet
This converter is bidirectional and allows 12G-SDI cameras to connect to SMPTE-2110 systems over long distances using optical fiber.
That means it handles the SDI camera feed and SDI program return in the one converter!

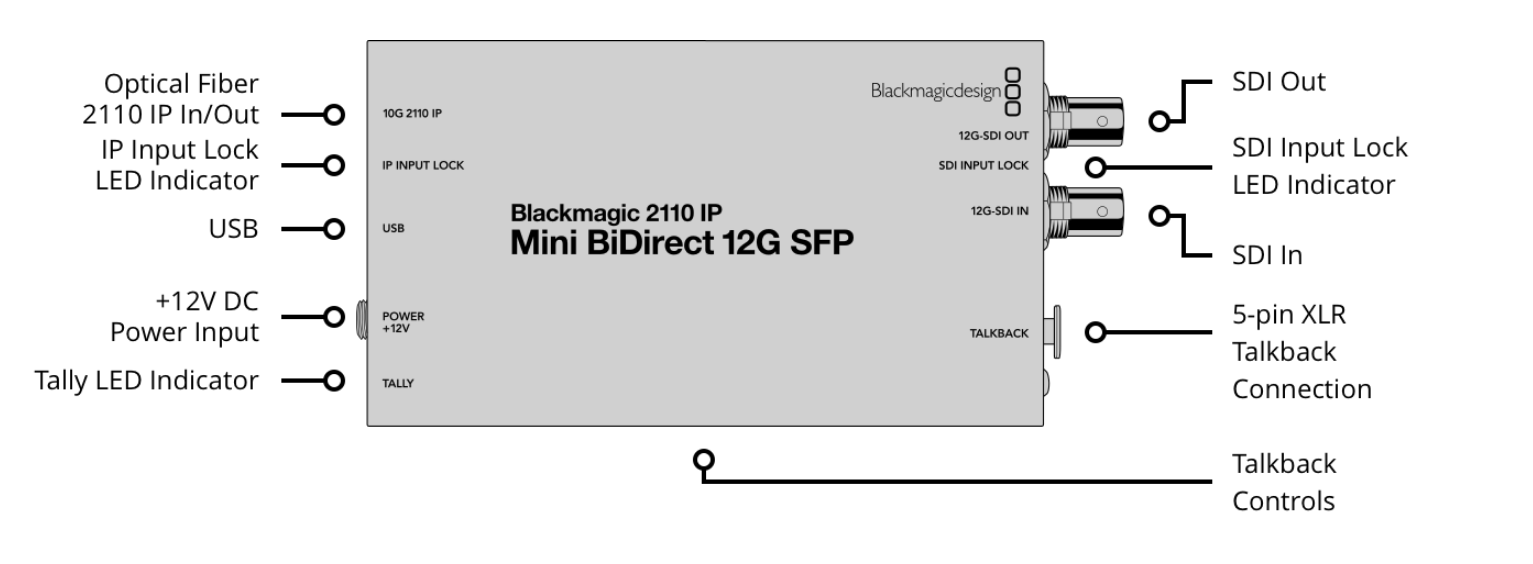

It also has a 5 pin XLR talkback headset connection with volume and press to talk buttons!
Plus it supports all SD, HD and Ultra HD standards up to 2160p60.
The SFP socket will accept 10G Ethernet, 3G-SDI, 6G-SDI or 12G-SDI optical modules.
The Blackmagic 2110 IP Converters have been designed to integrate SDI equipment into 2110 IP broadcast systems.
The rack mount models can be installed in equipment racks right next to the equipment you're converting.
However with Blackmagic Studio Cameras, Blackmagic Audio Monitor 12G G3 and the SmartView 4K G3, you can build most of your SMPTE-2110 system without converters!
Plus most Blackmagic SMPTE-2110 IP video products can be remote powered!
But adding converters means you get a low cost way to transform all your video equipment to SMPTE-2110.
Simply add a Blackmagic 2110 IP Converter to live production switchers, disk recorders, streaming processors, cameras, TVs and more.
Conforms to the SMPTE-2110 IP Video Standard
Blackmagic 2110 IP products conform to the SMPTE ST-2110 standard for IP video, which specifies the transport, synchronization and description of 10 bit video, audio and ancillary data over managed IP networks for broadcast.
It can also re-sync SDI inputs to a common PTP clock or external gear can lock to the reference output that's also generated from the PTP clock.
Blackmagic 2110 IP products support SMPTE-2110-20 uncompressed video, SMPTE-2110-21 traffic shaping/timing, SMPTE-2110-30 audio and SMPTE-2110-40 for ancillary data.
Plus Blackmagic 2110 IP products support multicast, which is an efficient way of distributing video, audio and data from a single source to m
