Teranex Mini SDI to DP 8K HDR - BlackmagicEAN  9338716006452

Converters > Digital <> Digital
EAN:9338716006452
₦ 2,702,849.93
VAT Included
Adcom - Blackmagic
New
Available in 7 days
QUOTE
BUY
Blackmagic CONVN8TRM/AA/SDIH

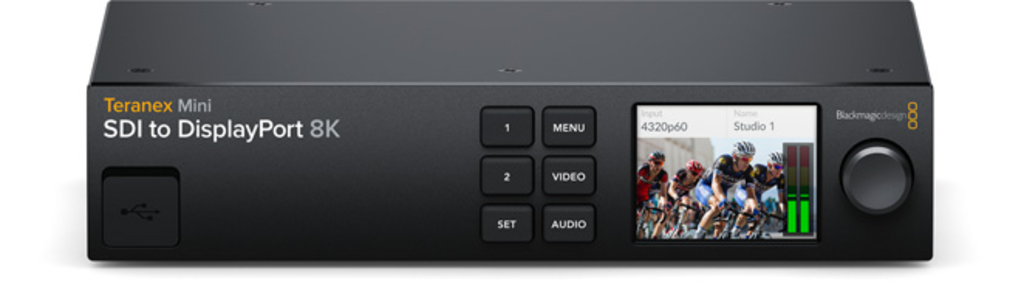

Advanced 8K DisplayPort monitoring solution for converting SDI sources to DisplayPort in all HD, Ultra HD and 8K formats up to 4320p60. Includes 2 full size DisplayPort and 1 USB-C DisplayPort output connections, built in down converter, HDR formats, 33 point 10-bit RGB LUTs, built in waveform, parade, vector and histogram scopes, monitor calibration for compatible monitors, and more.https://images.blackmagicdesign.com/images/products/teranexmini8k/techspecs/hero/teranex-mini-sdi-to-displayport-8k-hdr-sm.jpg?_v=1579562841

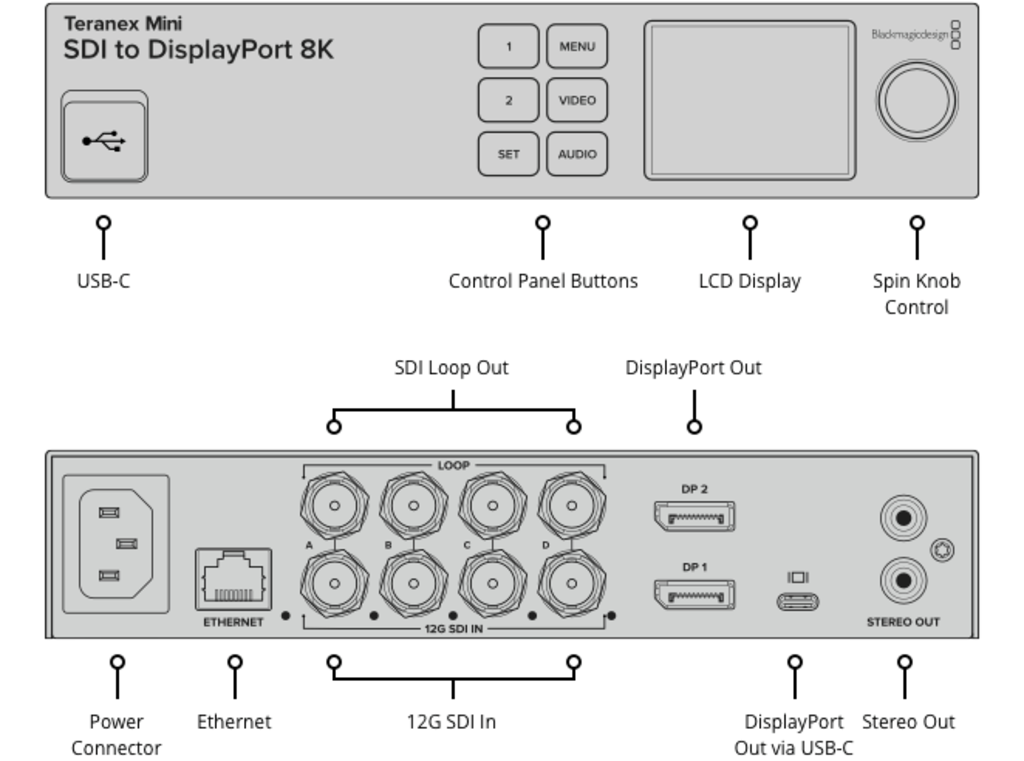

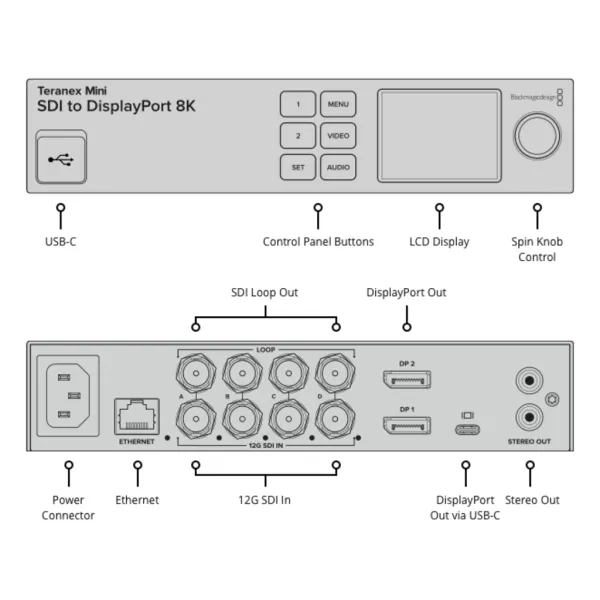

Connections
SDI Video Inputs

4 x 12G-SDI HD/2K/4K/8K auto switching. Quad Link 12G-SDI for 8K only.
Please click here for a summary of recommended cables to use with Blackmagic 12G-SDI products.
SDI Video Outputs

4 x 12G-SDI loop output.
DisplayPort Video Outputs

2 x full size DisplayPort connectors. Single used for 4K video and both used for uncompressed 8K video. 1 x USB-C DisplayPort connector
Analog Audio Outputs

2 channels analog audio via RCA connectors.
Embedded Audio Support

16 channels of embedded audio on all SDI loop outputs and 8 channels on the DisplayPort outputs.
Multi Rate Support

1.5G, 3G, 6G, 12G, 2SI Dual Link 12G-SDI, 2SI Quad Link 12G-SDI, Square Division Quad Link 12G-SDI.
Updates and Configuration

Front USB-C or Ethernet.
Reclocking

Yes
Teranex Mini SDI to DisplayPort 8K HDR
Standards
SD Video Standards

None
HD Video Standards

720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2K Video Standards

2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4K DCI Video Standards

4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
8K Video Standards

4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60 Auto switching between 2SI and Square Division
8K DCI Video Standards

8Kp23.98 DCI, 8Kp24 DCI, 8Kp25 DCI, 8Kp29.97 DCI, 8Kp30 DCI, 8Kp47.95 DCI, 8Kp48 DCI, 8Kp50 DCI, 8Kp59.94 DCI, 8Kp60 DCI Auto switching between 2SI and Square Division
SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 37
