Roland Professional 4K/HD Cross Conversion and Easy Video Source Adjustment for LED Walls and Other Displays

The VC-1SC-4K is a powerful and practical solution for modern LED wall applications, providing a versatile interface and easy screen adjustment for different display types.
This compact, rugged device features built-in scaling, 4:4:4 10-bit processing, and 12G-SDI/HDMI 2.0 support for seamless cross-format conversion between HD and 4K sources.
Using the dedicated multi-platform control apps, it's simple to store/recall setups and adjust screen resolution, aspect ratio, ROI cropping, and much more.

Simplified Control for Modern Workflows
LED wall applications with various resolutions and non-16:9 displays are expanding in today's production, commercial, and rental environments.
The VC-1SC-4K is a highly adaptable interface that addresses modern needs where simple signal conversion is no longer enough.
This robust, streamlined package delivers high-quality 4K processing, precision control, and fast setup in a variety of display scenarios, from live events to fixed installations and beyond.

Reliable and Flexible Conversion for SDI and HDMI Sources
The VC-1SC-4K is equipped with SDI and HDMI inputs that support 4K and HD signals at various frame rates, as well as a reference input for locking to a system clock.
The powerful onboard engine provides stable cross conversion of professional video sources with premium 4:4:4 10-bit processing and full support for 12G/6G/3G-SDI and HDMI 2.0 formats.

Quick Layout and ROI Cropping
With its versatile video scaling tools, the VC-1SC-4K makes it simple to interface with a wide range of display types.
Match your input source to the screen's resolution with flexible size and position control.
And use the ROI (Region of Interest) function to crop a specific area and get the most from non-16:9 displays.

Versatile SDI and HDMI Signal Distribution
The VC-1SC-4K easily handles video format conversions for maximum flexi
Video
Video Processing: 4:4:4 (Y/Cb/Cr), 10-bit
Format:
HDMI: *1
2160 (DCI) /60p, 59.94p, 50p, 48p *2, 47.95p *2, 30p, 29.97p, 25p, 24p, 23.98p (CTA-861-G)
2160 (UHD) /60p, 59.94p, 50p, 30p, 29.97p, 25p, 24p, 23.98p (CTA-861-G)
1080 (DCI) /60p, 59.94p, 50p, 30p, 29.97p, 25p, 24p, 23.98p
1080 (FHD) /60p, 59.94p, 50p, 30p, 29.97p, 25p, 24p, 23.98p (CTA-861-G)
1080/60i, 59.94i, 50i (CTA-861-G)
720/60p, 59.94p, 50p (CTA-861-G)
2560 x 1440/60 Hz (VESA CVT Reduced blanking)
1920 x 1200/60 Hz (VESA CVT Reduced blanking)
SDI:
2160 (DCI) /60p, 59.94p, 50p, 48p *2, 47.95p *2, 30p, 29.97p, 25p, 24p, 23.98p (SMPTE ST2048)
2160 (UHD) /60p, 59.94p, 50p, 30p, 29.97p, 25p, 24p, 23.98p (SMPTE ST2036)
1080 (DCI) /60p, 59.94p, 50p, 48p *2, 47.95p *2, 30p, 29.97p, 25p, 24p, 23.98p (SMPTE ST2048)
1080 (FHD) /60p, 59.94p, 50p, 30p, 29.97p, 25p, 24p, 23.98p (SMPTE ST274)
1080/60i, 59.94i, 50i (SMPTE ST274)
1080/30PsF *2, 29.97PsF *2, 25PsF *2 (SMPTE ST274)
720/60p, 59.94p, 50p (SMPTE ST296)
*1 HDCP 1.4, 2.2 supported.
*2 Input and through output.
Video Functions:
4 K Scaler
ROI (Region of interest)
Down Converter
Test Pattern Generator
Flip H, V
Motion Adaptive Deinterlacer
Edge Enhancer
Color Correction
Dynamic Range Conversion
Frame Rate Conversion

Audio
Audio Processing: 24 bits, 48 kHz
Formats:
- HDMI: Linear PCM, 24 bits, 48 kHz, 8 ch
- SDI: Linear PCM, 24 bits, 48 kHz, 16 ch (SMPTE 299 M)
Audio Formats:
- USB STREAM (input/output): Linear PCM, 16 bits, 48 kHz, 2 ch
- HDMI IN: Linear PCM, 24 bits, 48 kHz, 2 ch
- HDMI OUT: Linear PCM, 24 bits, 48 kHz, 2 ch
Audio Functions:
- Input/Output Level
- Patchbay
- Delay (Up to 3 seconds)
- Test Tone Generator

Connectors

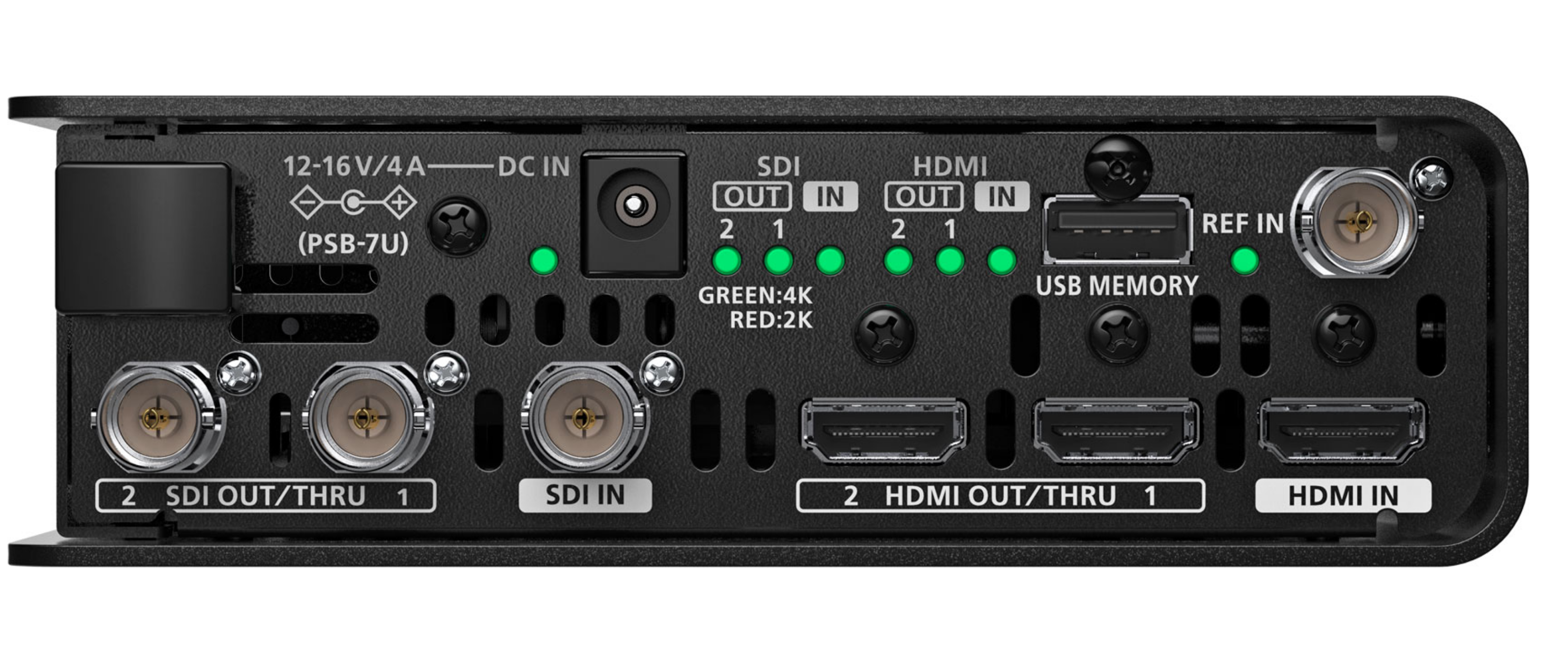

Video Input Connectors:
- HDMI IN: HDMI type A (HDMI 2.0)
- SDI IN: BNC type (SMPTE ST2082, 2081, 424M(SMPTE 425M-AB), 292M)
Video Output Connectors:
- HDMI OUT/THRU 1, 2: HDMItypeA x 2 (HDMI 2.0)
- SDI OUT/THRU 1, 2: BNC type x 2 (SMPTE ST2082, 2081, 424M(SMPTE 425M-AB), 292M)
Aud
1x VC-2SC-4K
1x Startup Guide
1x Leaflet "USING THE UNIT SAFELY"
1x AC adaptor (PSB-7U)
1x Power cord
4x Rubber foot
1x Spacer
