OG-12G-AMA-R0 - AJA
Distributors Extender > HD SDI
₦ 2,514,585.18
VAT Included
VAT Included
Adcom - AJA
New
Available in 19 days

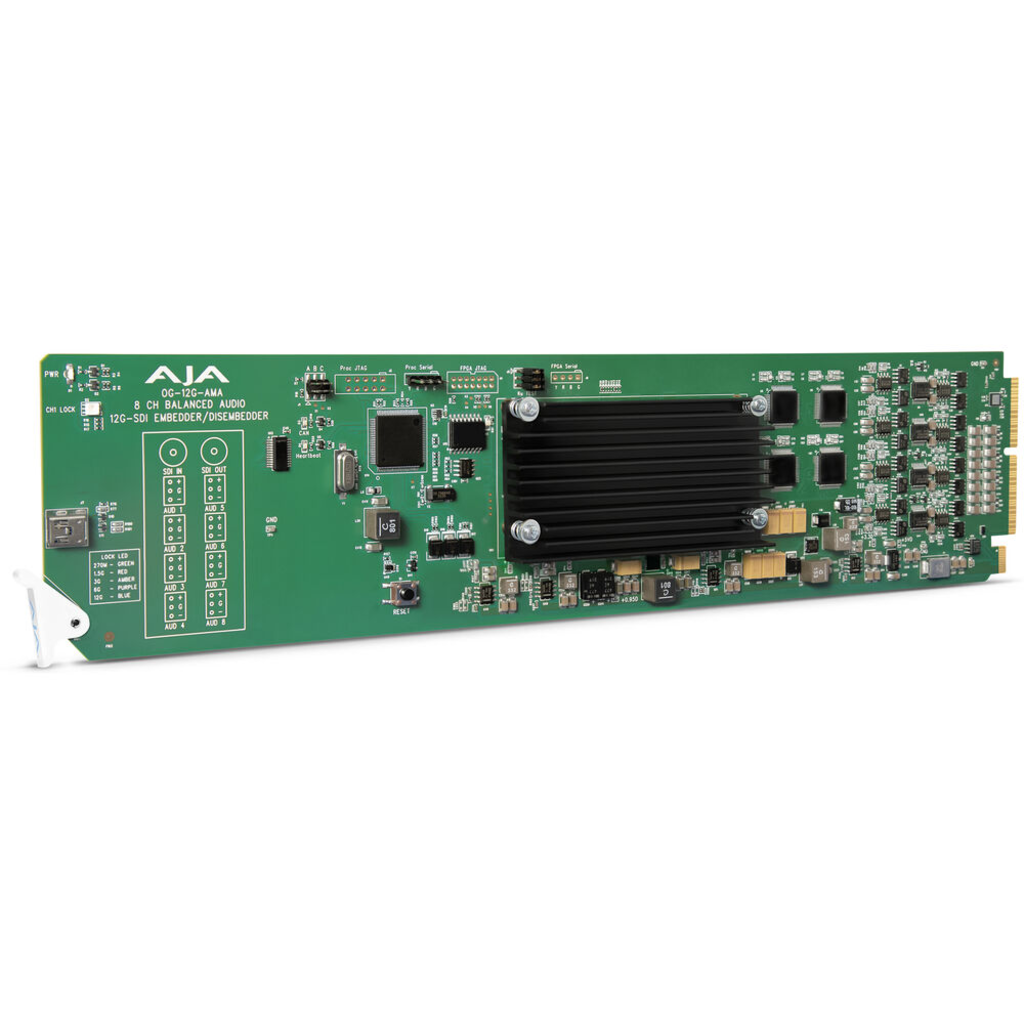

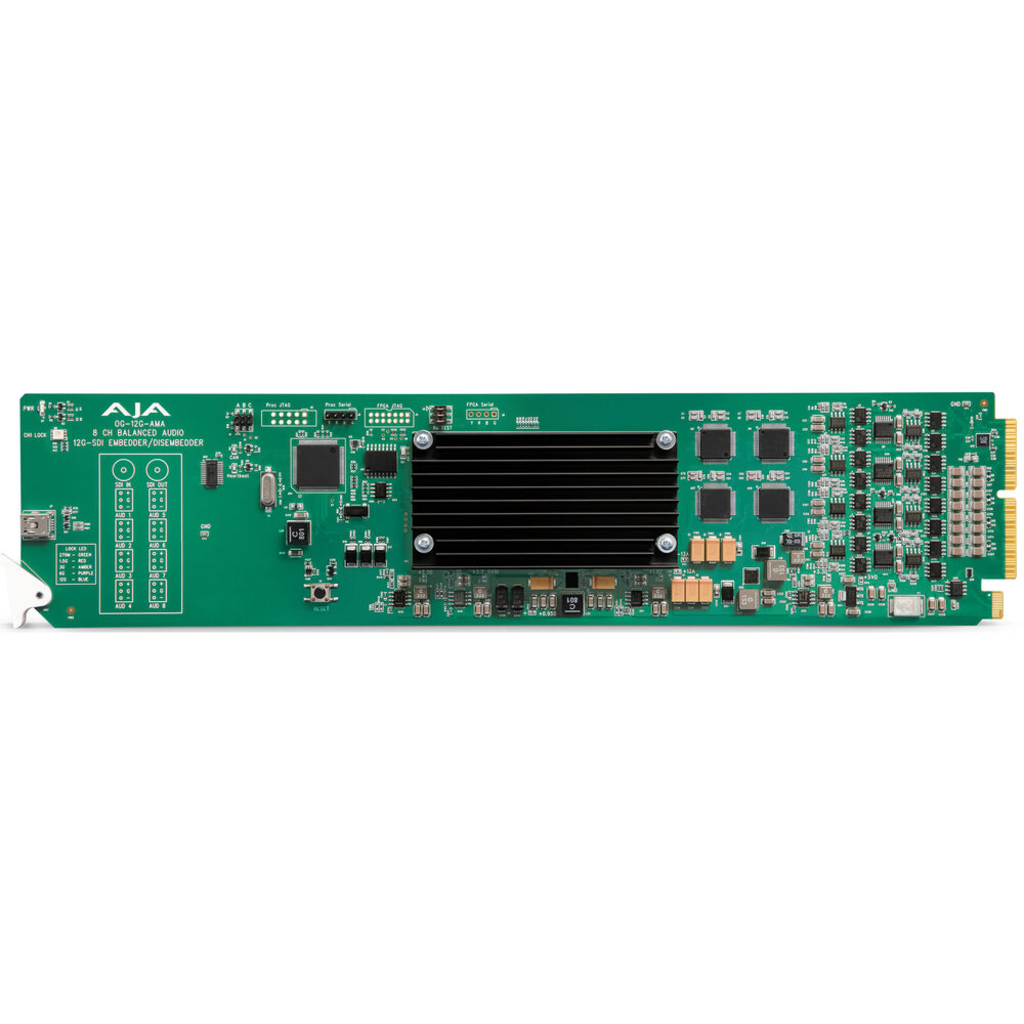

AJA openGear 12G-SDI - Analog Audio Embedder/Disembedder
The OG-12G-AMA is an openGear 8-channel analog audio embedder/disembedder, that supports 12G-SDI input and output up to 4K/UltraHD, and automatically detects and configures to the input video standard.
It uses 3-pin terminal block connectors that can be set to perform audio input or output functionality.
Analog audio levels and audio embedding/disembedding are selectable, with embedding/disembedding on a channel pair basis to pass 12G-SDI input audio or embed input analog audio from 3-pin terminal block connectors.
Designed for use in high density openGear 2RU frames, including AJA's OG-X-FR frame.
Ross DashBoard Software supports Windows®, macOS®, and Linux® and provides convenient, configuration, monitoring, and control options for openGear cards and frames via a connected computer or over local network with DashBoard's web UI.
DashBoard Software
Ross DashBoard software offers quick and convenient configuration of openGear cards on macOS, Windows, and Linux.
OG-12G-AMA Workflow
The OG-12G-AMA in this workflow diagram is receiving 4K video and embedded audio via 12G-SDI.
At the same time, the OG-12G-AMA is disembedding analog audio and sending the analog audio I/O for mixing.
The output of the mixer is then embedded into the SDI stream being output via the 12G-SDI connection of the OG-12G-AMA.
This 12G-SDI output is fed directly to a Ki Pro Ultra 12G to record the original 4K video with the newly embedded, mixed audio.
Flexible I/O

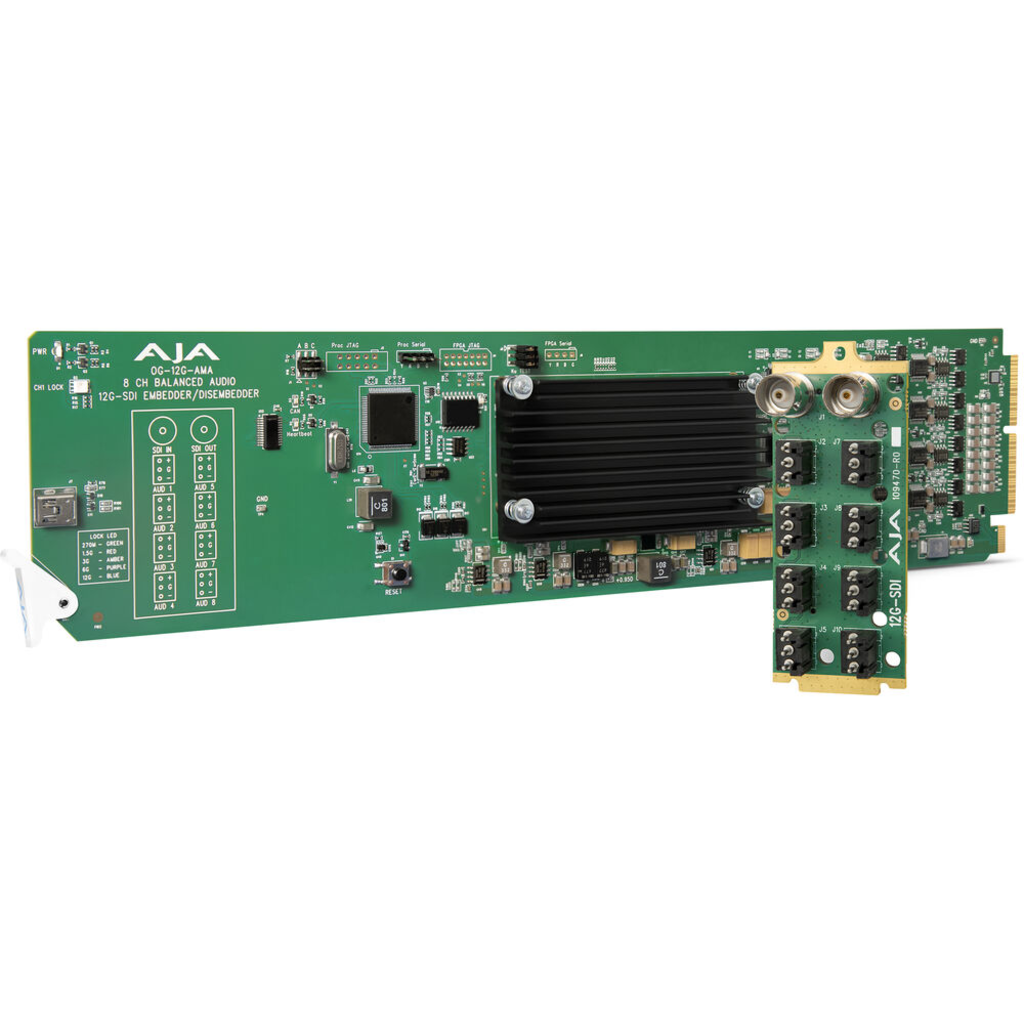

The modular rear panel allows custom I/O connections per card (included with individual cards).
Failsafe
The optional redundant power supply provides a secondary power source in the event of a primary power failure.
Ethernet Access
A standard Ethernet connection allows the frame to be accessed via the Ross DashBoard software application for overall frame communication.
Optional per-card Ethernet access can be installed in the frame for advanced communicati
