Extron DA HD 4K PLUS Series distributors are HDCP 2.3 compliant and handle HDMI signals up to 4K / 60 resolutions with 4: 4: 4 chroma sampling. They support data rates up to 18 Gbps, HDR, Deep Color up to 12 bits, 3D, HD lossless audio formats and CEC control, as well as features useful for integration such as automatic equalization of the input signal, automatic management of color bit depth and selectable deactivation of the output signal. They also feature Extron EDID Minder® and Key Minder® technologies to maintain continuous EDID communication between connected devices and ensure simultaneous distribution of HDCP-encoded source content. The DA HD 4K PLUS Series distributors are available in two to six output formats and are ideal for applications that require the reliable distribution of a single HDMI source signal to numerous displays.
Frame rate1 24, 25, 30, 50, or 60 fps
Chroma sampling1 4:4:4, 4:2:2, or 4:2:0
Color bit depth1 8, 10, or 12 bits per color
Signal type HDMI 2.0b, HDCP 1.4 and 2.3
Max. video data rate 18.0 Gbps (6 Gbps per color)
NOTE 1Subject to the maximum data rate limit. Use our calculator (http://www.extron.com/8Kdatarate) to determine video parameters supported by this data rate.
Video
Maximum data rate 18.0 Gbps (6 Gbps per color)
Maximum pixel clock 600 MHz
Resolution range Up to 4096x2160 @ 60 Hz (4K), 3840x2160 @ 60 Hz (UHD),
1920x1200 or 1080p @ 60 Hz
Formats RGB and YCbCr digital video
Standards DVI 1.0*, HDMI 2.0b, HDCP 2.3
NOTE *Appropriate DVI-D to HDMI cables or adapters are required for DVI signal input/output.
NOTE Extron strongly recommends compatibility testing while designing, and before installing any 3D or HDR (high dynamic range) system. There are several unique 3D and HDR formats in use by source devices and display manufacturers. The level of 3D and HDR product support is governed by pixel clock, signal format, and communication between source and sink devices. Please contact an Extron Application Engineer for more information.
Video input
Number/signal type 1 single link HDMI (or DVI-D*)
Connectors 1 female 19-pin HDMI type A
Input cable length Up to 15 feet (4 meters) with a 600 MHz signal (100 feet (30 meters) with 165 MHz)
Horizontal frequency 15 kHz to 270 kHz for resolutions up to 18 Gbps
Vertical frequency 24 Hz to 240 Hz for resolutions up to 18 Gbps
Video output
Number/signal type

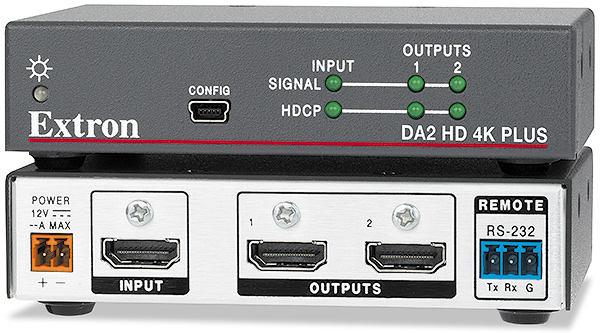

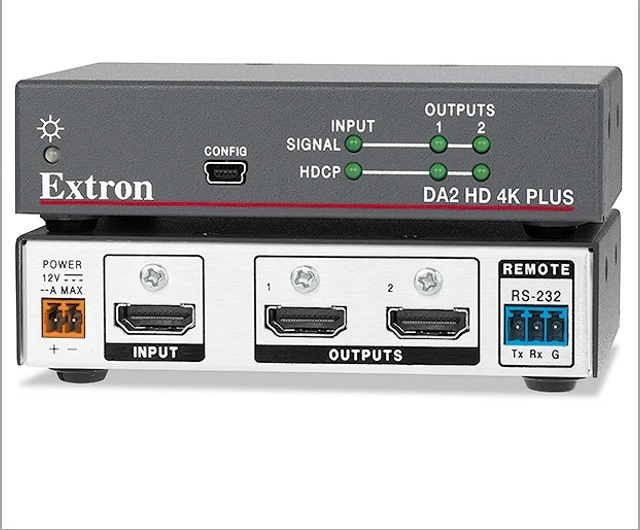

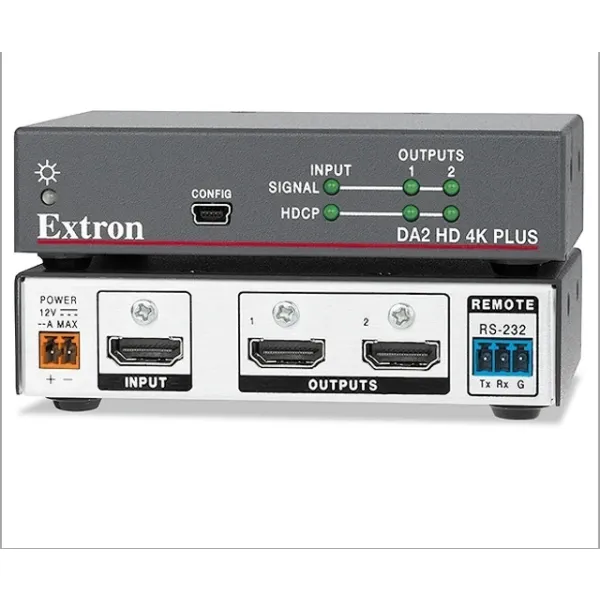

DA2 HD 4K PLUS 2 single link HDMI (or DVI-D*)
DA4 HD 4K PLUS 4 single link HDMI (or DVI-D*)
DA6 HD 4K PLUS 6 single link HDMI (or DVI-D*)
Connectors
DA2 HD 4K PLUS 2 female 19-pin HDMI type A
DA4 HD 4K PLUS 4 female 19-pin HDMI type A
DA6 HD 4K PLUS 6 female 19-pin HDMI type A
Video output power for active cables
DA2 HD 4K PLUS 2.2 W total po
