Login Area

S24 - Seetec

Monitors > Monitors up to 35"
₦ 4,204,942.86
VAT Included
Adcom - Seetec
New
Available in 15 days
Seetec 23.8" 1000NIT 12G-SDI 4K/8K Monitor, Display Color 1.07B, 3840x2160 pixels

- Rugged aluminium housing, durable

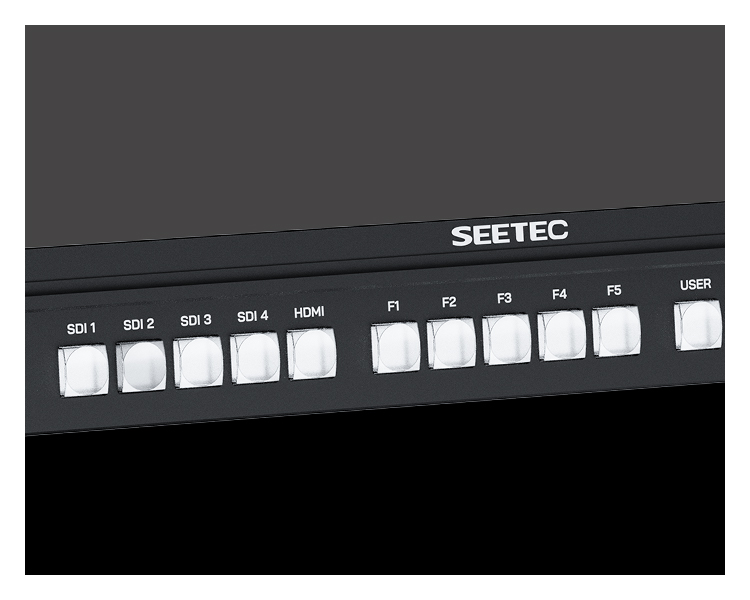

- Flexible and intuitive button operation, easy to use
- BT709, DCI-P3, BT2020 calibrated color spaces can be selected
- Built-in SDR, HLG Gamma
- Mulitple display modes (Single, Full-Waves, PBP, PIP, QUAD, 8K)
- 5 User groups function set, one key call out
- Upload 3D-LUT, preveiw film look (up to 50)
- Combine four 12G-SDI into one 8K signal
- Red and green Tally indicator light, enhance team cooperation
- Supports GPI, RS485, LAN remote control
- EL Zone innovation tool, it is similar to false color, however, it allows for higher precision, greater consistency, and more intuitive on-set communication
- Stereo Earphone output, speaker

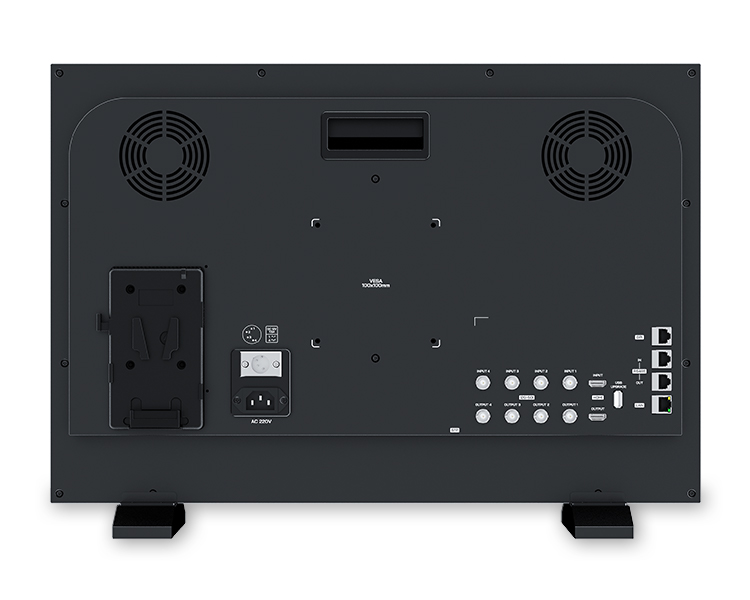

- VESA standard mounting points support for hang wall installation


Ultra HD Display | High Speed Transmission| High Quality Monitoring

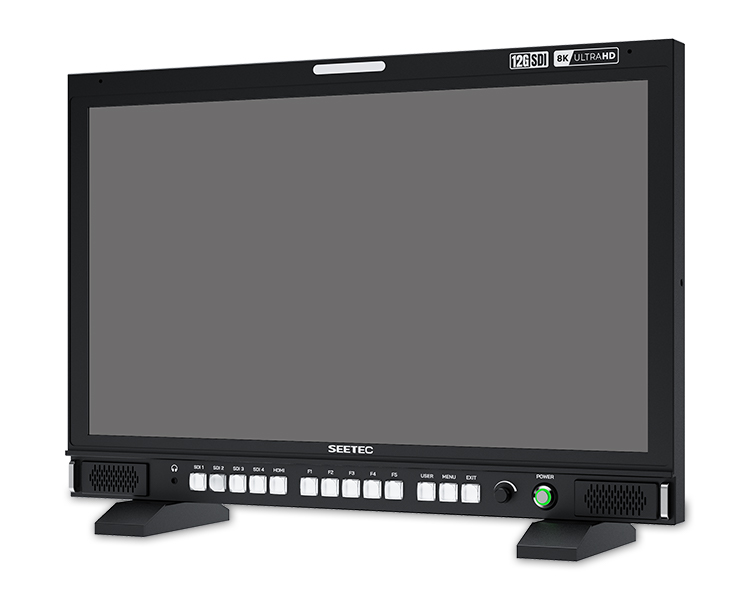

SEETEC S24 features 4x12G-SDI inputs and outputs, supports up to 8K signal via 12G-SDI quad-link,with UHD 3840x2160 and high color gamut large screen, bringing unprecedented smoother rate and unparalleled quality image, provide you an immersive audio and visual experience!

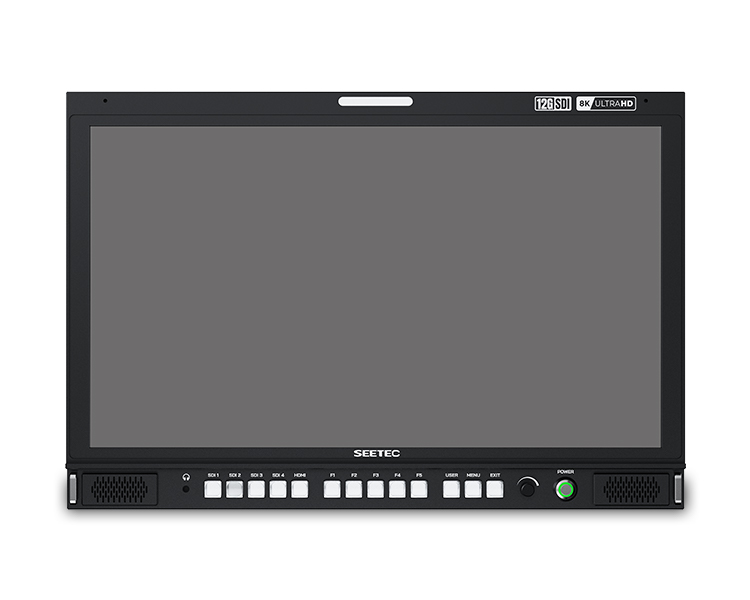

Multi-view modes allowing director to monitor multiple cameras in busy film crew without having to connect multiple monitors, connect to your computer to remote control the monitor via the exclusive APP, S24 also comes with the standard VESA mounting points allow for wall mounting, perfect for the busy broadcast control room.
S24 can be widely widely used in the pre-shooting and post color grading work of broadcast, film and television, and high-end advertising production.

4K/8K Monitoring
S24 supports 12G-SDI signal link 4K signal,3G-SDI quad-link 4K signal and quad-link 12G-SDI 8K signal (combine four 4K 60Hz video signals into one 8K 60Hz video signal).
Just a single device can meet the whole workflow requirements from broadcast studio live streaming to multi-view monitoring, reducing the system construction com
Screen size: 23.8" IPS
Display colors: 1.07B
Color Gamut: NTSC 105% (CIE1931)
Resolution: 3840x2160 pixels
Pixel pitch: 0.13695(H) x RGB x 0.13695(V) mm
Aspect Ratio: 16:9
Brightness: 1000 cd/m²
Contrast Ratio: 1300:1
Backlight: LED
Response Time: 10ms
Viewing Angle: 89°/89°(L/R) 89°/89°(U/D)
Inputs: 4*12G -SDI (supported 8K SDI formats quad link)
Outputs: 4*12G-SDI ((supported 8K SDI formats quad link)
Audio:
- SDI/SFP: 16CH
- HDMI: 4CH
3.5mm Stereo Headphone, Speaker
Input Voltage: AC 100V - 240V
Power Consumption: Max.95W
Working Temperature: 0°C - 50°C
Storage Temperature: -20°C - 60°C
Unit Size: 570x385x31.5mm
Unit Weight: 7.42 kg
1x S24 Monitor
1x AC220V/3A Power Cord
1x HDMI Cable
1x Micro HDMI Cable
1x V-mount Battery Plate(default to mount on device)
1x Desk Stand Feet
1x User Manual
