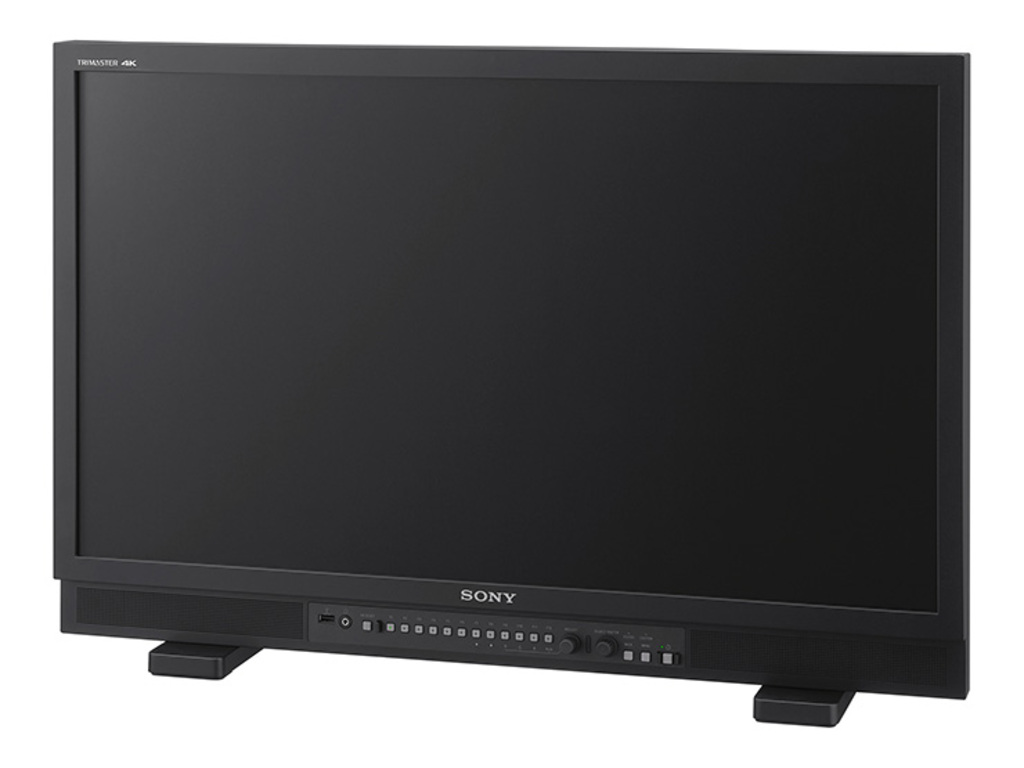

PVM-X3200 - SonyEAN  4548736145443

Monitors > Monitors up to 35"
EAN:4548736145443
₦ 21,507,021.90
VAT Included
Adcom - Sony
New
Available in 10 days
Color-matched 4K HDR viewing monitor with the BVM-HX310 reference monitor, ideal for 4K and HD productions
The PVM-X3200 is a 32" high-end 4K HDR viewing monitor that incorporates a dedicated premium LCD panel from Sony with a luminance of 1000 cd/m2 and offers color matching with the BVM-HX310 4K HDR reference monitor This solution simplifies group monitoring for on-set, studio or OB van applications, as well as in 19" EIA racks for editing, audio mixing and more.
TRIMASTER has perfected color reproduction, precision imaging and uniformity of image quality
Sony's acclaimed TRIMASTER architecture ensures accurate image reproduction, precision imaging and consistent image quality.
The signal processing system and control panel offer numerous advantages, including fast processing, accurate linearization of the input signal thanks to the Optical Electrical Transfer function, precise color reproduction and much more.
Support HDR-SDR conversion
With the optional PVML-HSX1 HDR-SDR conversion license, the PVM-X3200 supports HDR-SDR conversion in live production environments.
The license allows you to activate: 4K to HD conversion, color space conversion, OETF conversion, progressive to interlaced conversion and Quad-link 3G to Single-link 12G conversion.
It also allows you to playback the converted images on other 4K or HD monitors via optimized monitor output.
This feature simplifies local or remote monitoring of converted signals.
Signal output support for user 3D LUT
The optional PVML-HSX1 HDR-SDR conversion license also supports output signals with user-applied 3D LUTs via optimized monitor output to other 4K/HD devices, contributing to even more efficient workflows in live production, cinema, theatre, advertising, music and documentaries.
SR Live metadata
SR Live metadata support allows you to match the PVM-X3200 monitor settings to the incoming signal.
You can also check SR Live metadata parameters on an incoming SDI signal in the status menu.
This makes using the monitor in SR
Display
Panel Type: TFT LCD
Display Size: 32.00" / 81.3 cm
Screen Area: 27.89 x 15.69" / 708.48 x 398.52 mm
Resolution: 3840 x 2160
Aspect Ratio: 16:9
Viewing Angle:
- Horizontal: 178° (89/89)
- Vertical: 178° (89/89)
Touchscreen: No
Maximum Brightness: 1000 nits / cd/m2
Bit Depth / Color Support: 10-Bit (1.07 Billion Colors)
HDR Compatibility: Hybrid Log Gamma
Pixels Per Inch (ppi): 137 ppi

Inputs / Outputs
Video I/O:
- 2x BNC (12G-SDI) Input
- 2x BNC (3G-SDI) Input
- 1x HDMI 1.4 Input
- 2x BNC (12G-SDI) Output
- 2x BNC (3G-SDI) Output
HDCP Support: Yes, Version 2.3
Audio I/O:
- 1x 1/8" / 3.5 mm Monitor Output
- 1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker: 2x 2 W
Other I/O:
- 1x RJ45 (Parallel) Input
- 1x RJ45 (LAN) Input
Media/Memory Card Slot: No
Wi-Fi: No
Bluetooth: No
Mobile App Compatible: No

Power
AC Input Power: 100 to 240 VAC, 50 / 60 Hz
Power Consumption: 280 W

Environmental
Certifications: No
Operating Temperature:
- 32 to 95°F / 0 to 35°C
- 68 to 86°F / 20 to 30°C (Recommended)
Operating Humidity: 30 to 85%
Storage Temperature: -4 to 140°F / -20 to 60°C

General
Storage Humidity: 0 to 90%
Dimensions:
- 29.6 x 19.5 x 6.1" / 752 x 494.5 x 155 mm, Excluding Stand
- 29.6 x 20.2 x 9.1" / 752 x 513 x 229.9 mm, Including Stand
Weight: 34.2 lb / 15.5 kg
1x PVM-X3200 Monitor
1x AC Power Cord
1x AC Plug Holder
1x CD-ROM
1x First Use Guide
