S-1093FEAN  6948193506135

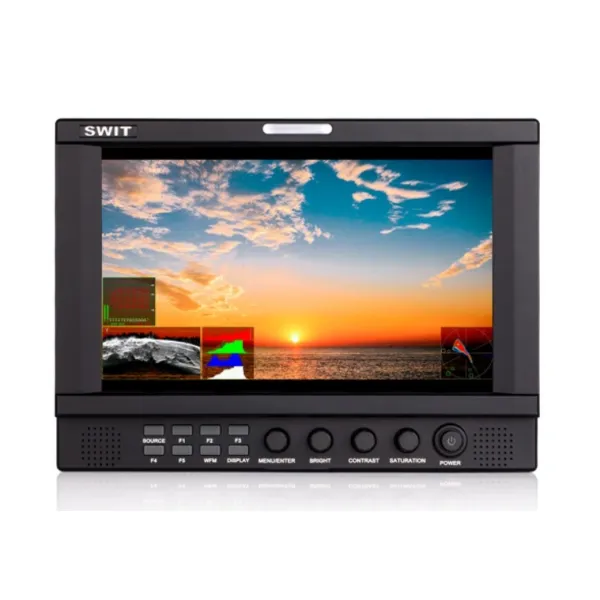

Swit S-1093F | 9" Full HD Reference LCD Monitor, 1920×1200, 450cd/m2, 16:9, 1000:1

- 9" IPS LCD, 1920×1200, H/V 170°viewing
- Build-in LCD protective glass
- 2K/3G/HD/SD-SDI, HDMI®, CVBS monitoring
- 16-ch Embedded audio meters with alert
- Select any 2 audio channels to output
- Waveform Y/Cb/Cr/R/G/B and single line
- Vector scope, histogram R/G/B/Y
- AFD, H/V delay, R/G/B/Mono, False color
- TSL UMD and text TALLY display
- Zebra stripes, Peaking focus assist
- SDI timecode display
- Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
- Optional dual monitors rack mount bracket

9" Full HD LCD
The S-1093F adopts a 9-inch IPS (In-Plane Switching) LCD panel, with Full HD 1920×1200 resolution and LED backlight, 1000:1 contrast.
The viewing angle is Horizontal: 170° / Vertical: 170°

LCD Protective Glass
The LCD of S-1093F is overlaid with a glass, protects the screen against scratch or broken.

Dual Monitors 19-inch Rack Install
You can Install 2× S-1093F monitors onto standard 19-inch rack by optional accessory MA-RT93.
The hanging structure allows for quick removal and adjustment of video cables.

Video Analysis Assistant Pattern
S-1093F supports video analysis assistant patterns includes: Waveform (Y/Pb/Pr/R/G/B), Vector scope, Histogram (R/G/B/Y), to convert the digital video quality info (Luma, Color, Saturation, etc) to patterns, and the patterns can be switched on/off individually, select display position (Up/Down/Left/Right), size, color, and translucence.

Embedded audio monitoring
S-1093F supports SDI-16ch and HDMI®-8ch embedded audio meters display, with marks and audio abnormal alert info.
Users can also select any 2 channels audio to output via 3.5mm socket or speakers.
The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels.
Also scale markers, alert info, and translucent of the audio meter pattern are selectable.

UMD and Text-Tally Display
S-1093F supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection, and Max 8 letters displayed.
The UMD/TALLY signal inputs via RJ45(RS485) port on the rear panel of the monitor.

USB Firmware Upgrade
The monitor provides a standard USB port on the rear panel, for firmware upgrade.
Users can download the latest firmware file to a USB stick, and directly insert into S-1093F monitor to upgrade, without PC connection.

3-color TALLY Light
There are front and rear TALLY lights of Red, Green and Yellow colors, and users can define the pins of RJ45 port to control the TALLY lights.
