DJI Transmission TX/RX Combo - DjiEAN  6941565957207

Wireless Video systems > Professional Wireless Transmission Systems
EAN:6941565957207
₦ 3,220,352.24
VAT Included
Adcom - Dji
New
Available in 10 days

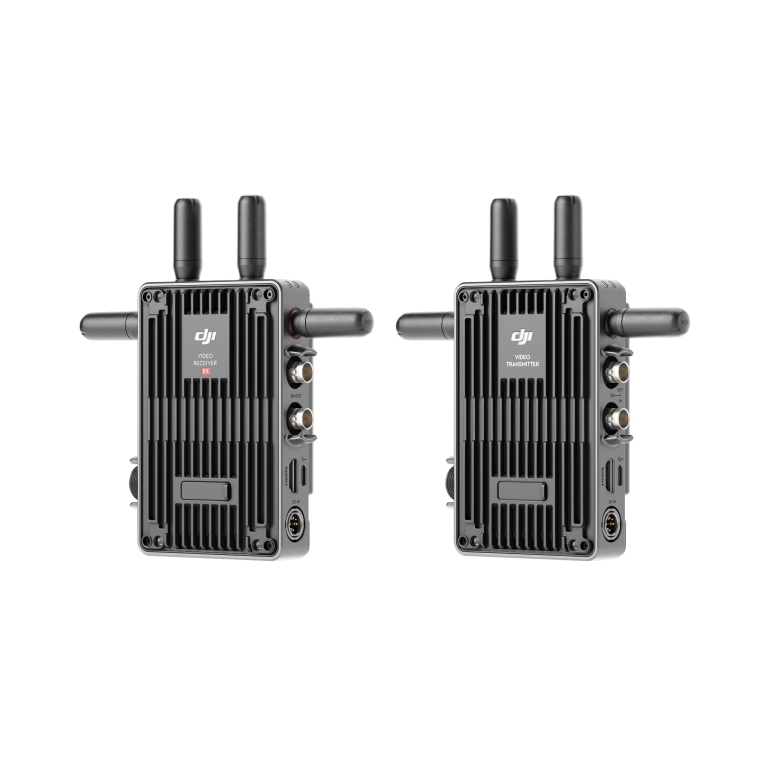

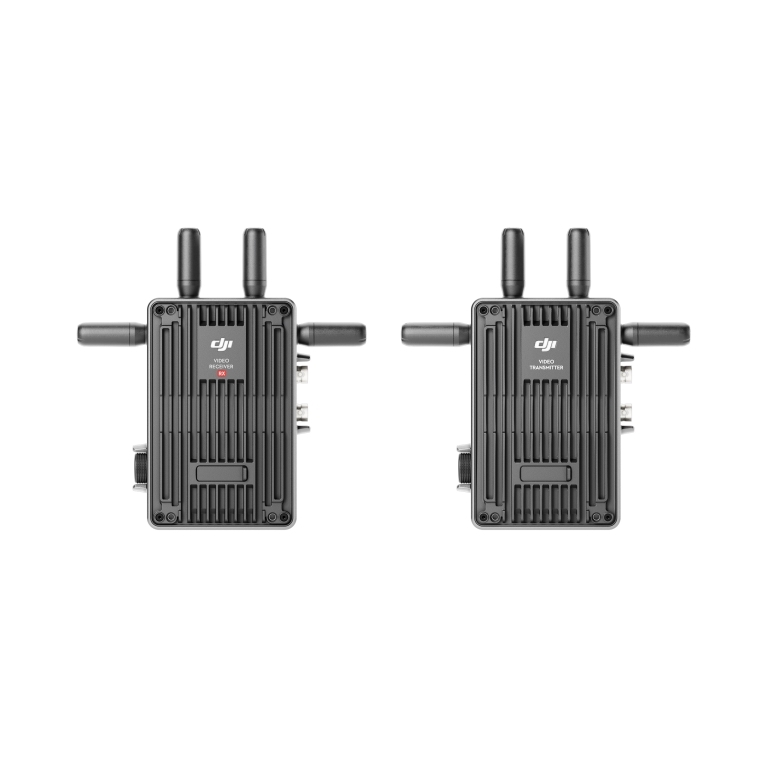

DJI Combo Video Transmitter & Receiver System, Power, SDI & USB-C Cables - CP.RN.00000318.01

Transmit high-definition video over 3 miles (line-of-sight) from your DJI drone or gimbal gear with this Transmission Standard TX/RX Combo from DJI.
The combo includes a transmitter and a receiver that transmits up to 1080p60 video using the highly efficient O3 Pro transmission technology via Wi-Fi 2.4 and 5 GHz frequencies.
Optional high-gain antennas can be purchased to boost the signal quality and distance.

The system supports automatic frequency hopping to find the strongest signal, and it operates using AES 256 encryption to protect your video from prying eyes.
It allows you to transmit simultaneously to multiple receivers, including the High-Bright Remote Monitor.
The system also can be used with talkback via the USB-C ports and optional headsets.
The units can be powered via a WB37 battery, L-series battery, or a DC power input, or they can be powered directly from a DJI gimbal such as the Ronin 2 or RS 3.

° DJI Wireless Video Transmitter
Transmit high-definition video over 3 miles (line-of-sight) from your DJI drone or gimbal gear with this Wireless Video Transmitter from DJI.
The transmitter pairs with a separately available monitor/receiver and transmits up to 1080p60 video using the highly efficient O3 Pro transmission technology via Wi-Fi 2.4 and 5 GHz frequencies.
Optional high-gain antennas can be purchased to boost the signal quality and distance.

The transmitter supports automatic frequency hopping to find the strongest signal, and it operates using AES 256 encryption to protect your video from prying eyes.
It allows you to transmit simultaneously to two receivers in control mode, and in broadcast mode, it can transmit to unlimited receivers with a slightly lower performance.
The transmitter can be powered via an optional L-series battery, WB37 battery, or its DC power input, or it can be powered directly from a DJI gimbal such as the Ronin 2 or RS 3.

° DJI Wireless Video R
DJI Wireless Video Transmitter
Inputs / Outputs
Antenna I/O: 2 x RP-SMA Female
Video I/O:
° 1 x BNC (3G-SDI) Input
° 1 x HDMI 1.4 Input
° 1 x BNC (3G-SDI) Loop Output
Embedded Audio: HDMI/SDI
Audio I/O: None
Power I/O:
1 x USB-C Input
1 x Barrel Input
Encryption: 256-Bit AES

Wireless Range: 3.7 Miles / 6 km (Line-of-Sight)
# of Channels: 23
Channel Bandwidth: 40 MHz
Frequency Range:
° Non-DFS Frequencies:
2.4 to 2.48 GHz
5.15 to 5.25 GHz
5.72 to 5.85 GHz
° DFS Frequencies:
5.25 to 5.35 GHz
5.47 to 5.6 GHz
5.65 to 5.72 GHz
Latency: 68 ms
RF Power: < 33 dBm
Wi-Fi: Wi-Fi 5 (802.11ac), Dual-Band (2.4 & 5 GHz)
Bluetooth: None
Mobile App Compatible:
No
*As of June, 2023: Check with manufacturer for the most up-to-date compatibility

Format Support
Video Format:
° HDMI/SDI (10-Bit 4:2:2 YCC)
1080p: 60/59.94/50/30/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Audio Format: 16-Bit 48 kHz PCM Audio
Wireless Video Compression: Compressed
Timecode Support: No

General
Dimensions: 5 x 3.4 x 1" / 127 x 87 x 26 mm
Weight: 12.3 oz / 350 g

DJI Wireless Video Receiver
Inputs / Outputs
Antenna I/O: 2 x RP-SMA Female
Video I/O:
1 x BNC (3G-SDI) Output
1 x HDMI 1.4 Output
Embedded Audio: HDMI/SDI
Audio I/O: None
Power I/O:
1 x USB-C Input
1 x Barrel Input
Encryption: 256-Bit AES

Wireless Range: 3.7 Miles / 6 km (Line-of-Sight)
# of Channels: 23
Channel Bandwidth: 40 MHz
Frequency Range:
° Non-DFS Frequencies
2.4 to 2.48 GHz
5.15 to 5.25 GHz
5.72 to 5.85 GHz
° DFS Frequencies
5.25 to 5.35 GHz
5.47 to 5.6 GHz
5.65 to 5.72 GHz
Latency: 70 ms
Wi-Fi: Wi-Fi 5 (802.11ac), Dual-Band (2.4 & 5 GHz)
Bluetooth: None
Mobile App Compatible:
No
*As of June, 2023: Check with manufacturer for the most up-to-date compatibility

Format Support
Video Format:
HDMI/SDI (10-Bit 4:2:2 YCC)
1080p: 60/59.94/50/30/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Audio Format:
16-Bit 48 kHz PCM Audio
Wireless Video Compression: Compressed
Timecode Support: No

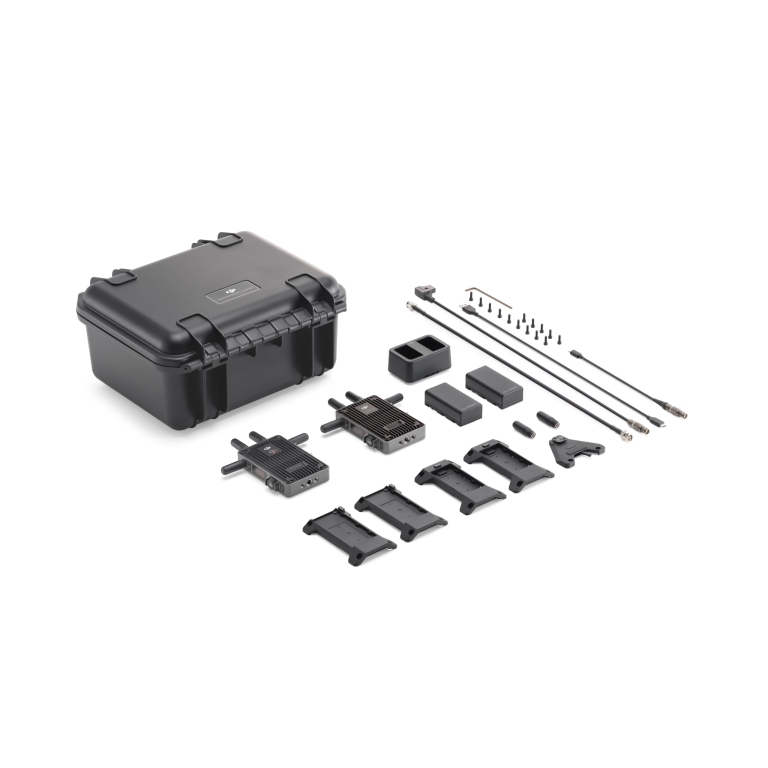

DJI Wireless Video Transmitter
L-Series/NP-F Battery Adapter
WB37 Battery Adapter
2 x Antenna
USB-C Cable
SDI Cable
DC Power Cable
DC to D-Tap Power Cable
DC to USB-C Power Cable
RS Gimbal Mounting Plate
Installation Toolkit
DJI Wireless Video Receiver
L-Series/NP-F Battery Adapter
WB37 Battery Adapter
2 x Antenna
USB-C Cable
SDI Cable
D-Tap Power Cable
Installation Toolkit
DJI WB37 Battery Charging Hub (USB Type-C)
DJI WB37 LiPo Battery Pack for Select DJI Accessories (7.6V, 4920mAh)
Carry Case
