FLOW10K - SwitEAN  6948193508146

KUWI Wireless Technology
SDI&HDMI 10000ft / 3km long distance
FLOW10K wireless system is based on SWIT latest professional KUWI wireless technology, 5.1-5.9GHz license free bands, DFS comply, sup- ports 3G/HD-SDI and HDMI (Max 1080p60) to transmit 10000ft / 3km Line-of-Sight distance. The KUWI professional wireless chip features stable connection at any complex environment and stronger in wall-cross capability.
The long distance wireless can be widely used in film production, event broadcasting etc.

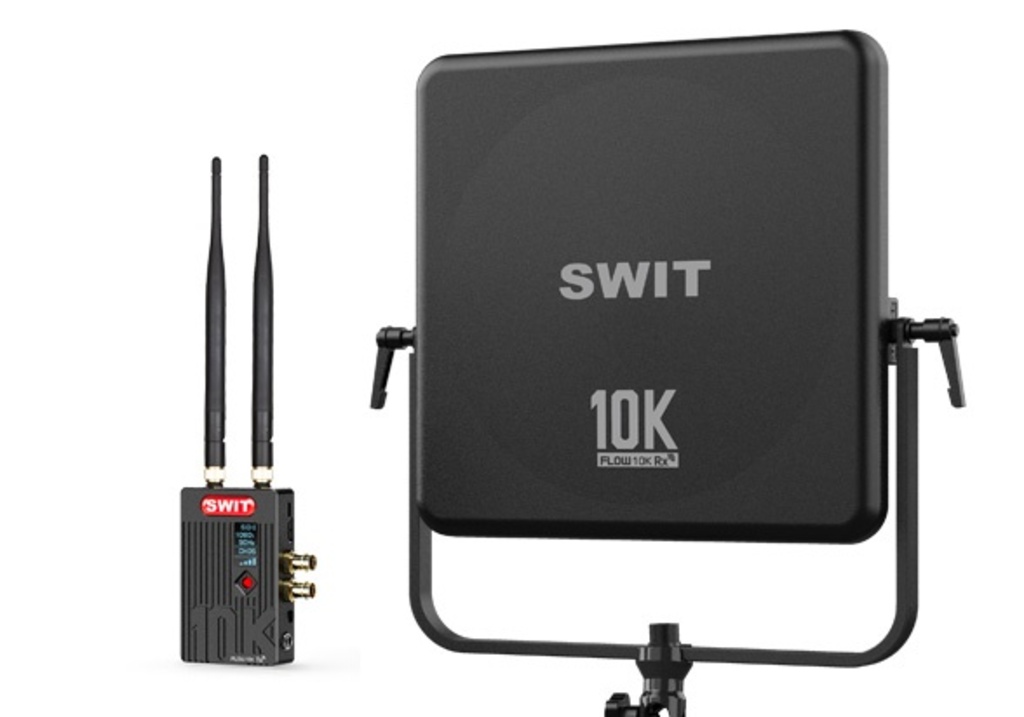

Transmitter
The Transmitter has 2 omni antennas, supports
1x 3G/HD-SDI input
1x 3G/HD-SDI loop output
1x HDMI 1.3 input
SDI & HDMI formats:
1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
1080psf23.98, 1080psf24
1080i60, 1080i59.94, 1080i50,
720p60, 720p59.94, 720p50
Supports embedded audio (CH1&2) transmission.

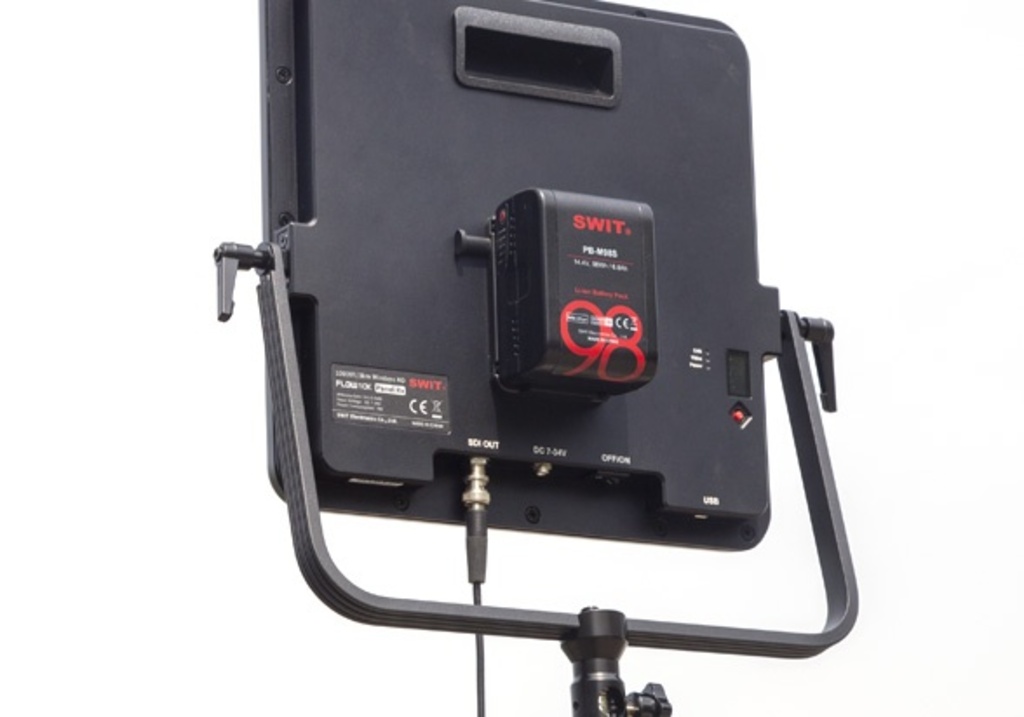

Panel Receiver
The Receiver has built into high gain directional Panel Antenna, compact size, without complex antanna wires connection, solid and reliable, and provides 1x 3G/HD-SDI output.

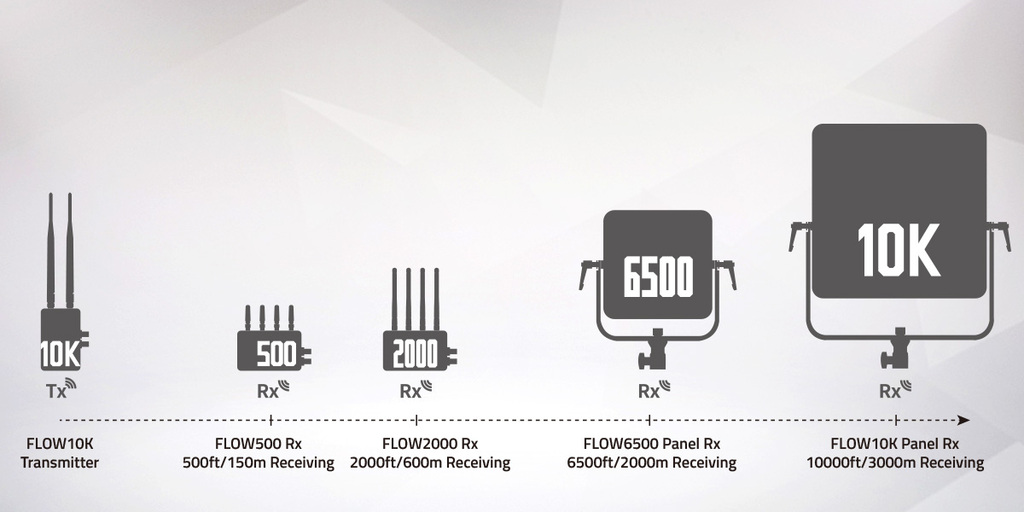

10000ft/3km Long Distance
Strong Wall-cross Performance
With the high gain panel receiver, FLOW10K supports 10000ft/3km (Line-of-sight) reliable wireless transmission, and featured stron- ger wall-cross performance due to both RF optimize and image quality optimize, so that will keep video transmission without date lost or crash comparing to regular 5GHz wireless transmitters.

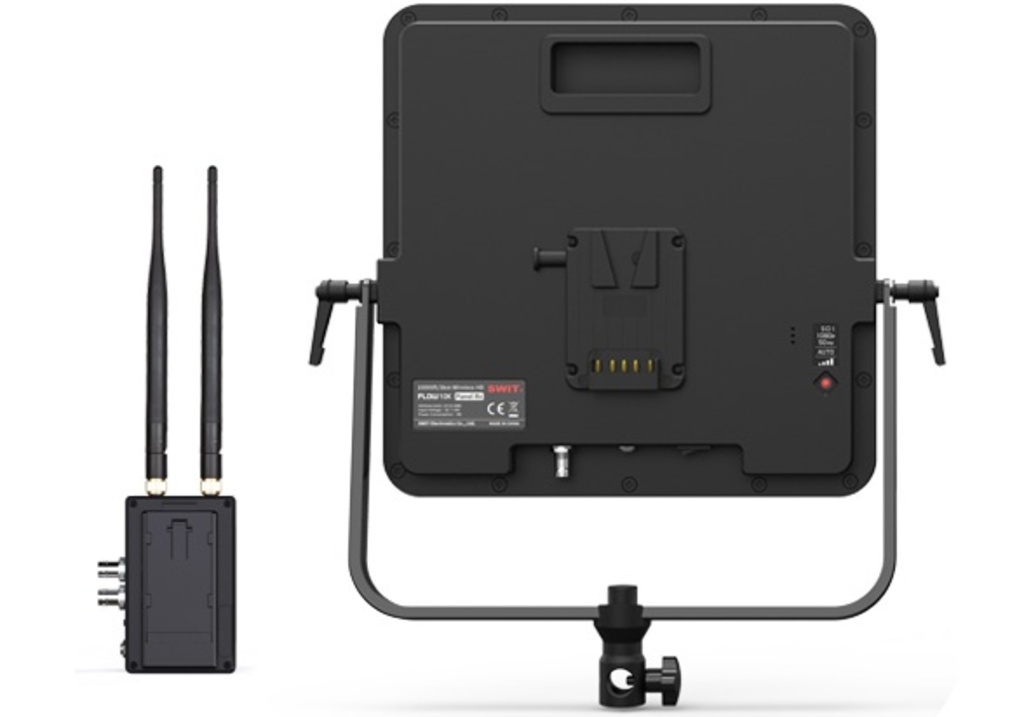

Power Supply
The power consumtion of Tx and Rx are less than 9W. The Transmitter provides NP-F DV battery plate, and 7-34V DC-IN socket,
The Panel Receiver provide V-mount battery plate, and 7-34V DC-IN socket.

OLED Display & Channel Switch
5GHz Frequency, DFS Comply
The FLOW wireless works under 5.1-5.9GHz, with built-in wireless scanner, and detect wireless condition of all fre- quencies, automatically jump to the best wireless channel to keep reliable connection and transmission, and DFS comply.
You can also switch the wireless channels ma
