Bolt 6 LT TX/RX 1500 Set VM - TeradekEAN  818264028322

Wireless Video systems > Professional Wireless Transmission Systems
EAN:818264028322
₦ 11,772,861.43
VAT Included
Adcom - Teradek
New
Available in 10 days

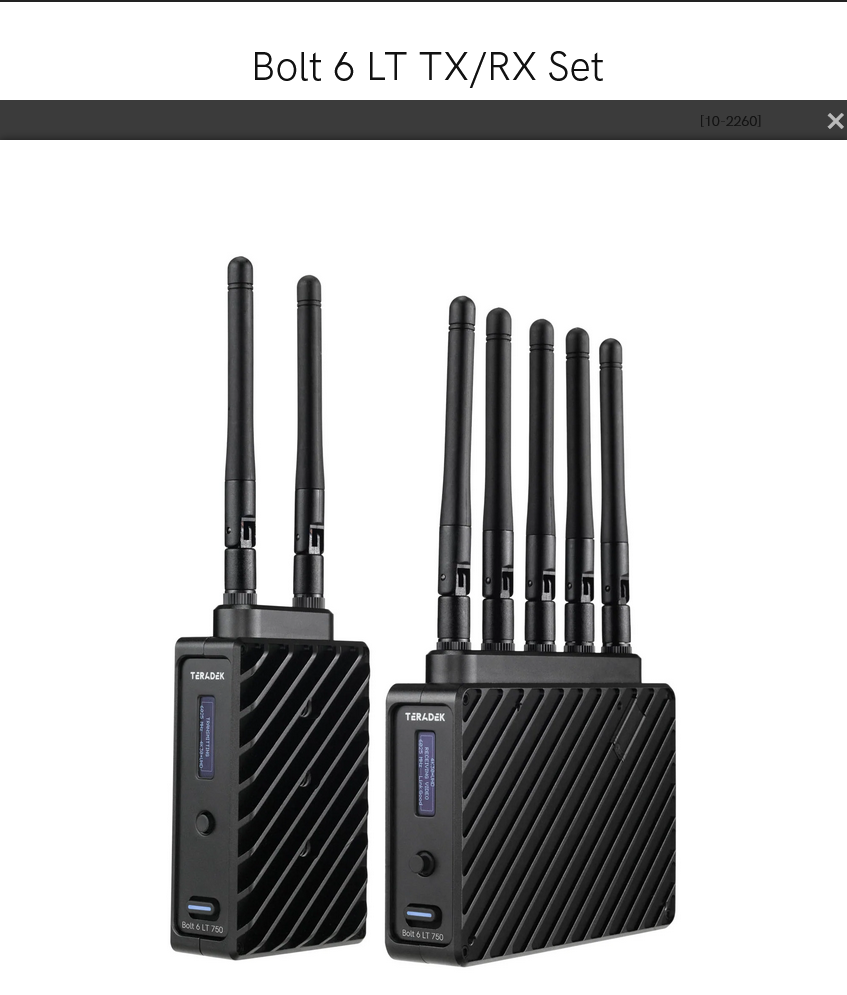

The Bolt 6 LT Set is a real-time wireless video transmission system that supports 4K video with Teradek's patented Zero-Delay technology, now with less interference using the newly opened 6GHz wireless frequency. Bolt 6 LT can send and receive color-accurate, True-HDR videos in under 0.001 seconds using the set's included Bolt 6 LT video Transmitter and Receiver.
10-2270-V V-Mount

Key features of the Bolt 6 LT Set include range options designed for a variety of production needs, fast reconnection times, an intuitive, easy setup with the Bolt Manager App for iOS or Android, and consistent, stable connectivity. The Bolt 6 LT series utilizes the 6GHz band to give users better image quality and reduced interference. And when used in high-traffic areas, 6GHz wireless frequency gives Bolt 6 LT users more options for frequency adjustments with 12 new channels. Bolt 6 can also pass metadata, timecode, and start/stop flags from most camera manufacturers.

Bolt 6 also offers new tools for high-end users, including better visibility over connections and signals, adding confidence to the workflow no matter how challenging the environment. It additionally gives you access to our new Long Range Mode, offering better video quality at longer distances. A 5-pin USB adapter, sold separately, allows for effortless and wireless camera-control setup when using SmallHD Smart Monitors.

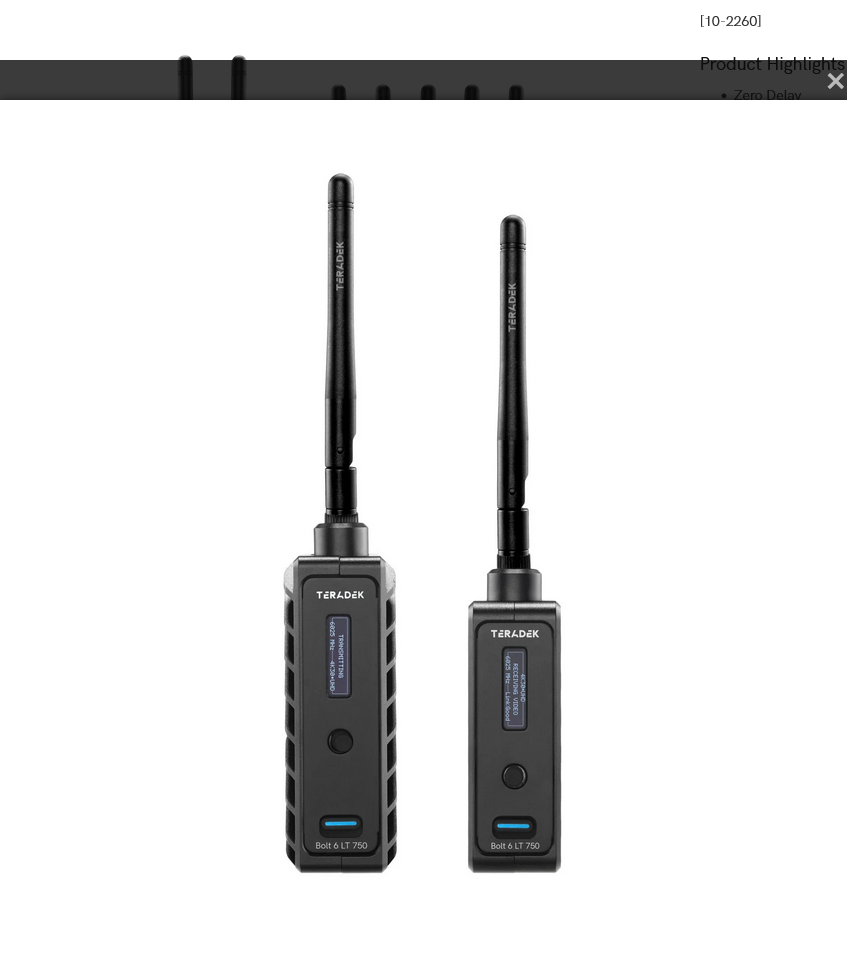

The included Transmitter, our most compact design ever, and the Receiver are cross-compatible with the entire Bolt 4K Series - including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules - giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).

Bolt 6 LT offers three line-of-sight options: 750 ft., 1500 ft., and the MAX Set, which can be configured for up to 5,000+ ft. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates. And while the Bolt 6 LT Set has both 4K HDMI and 1080p SDI input an
Specifications

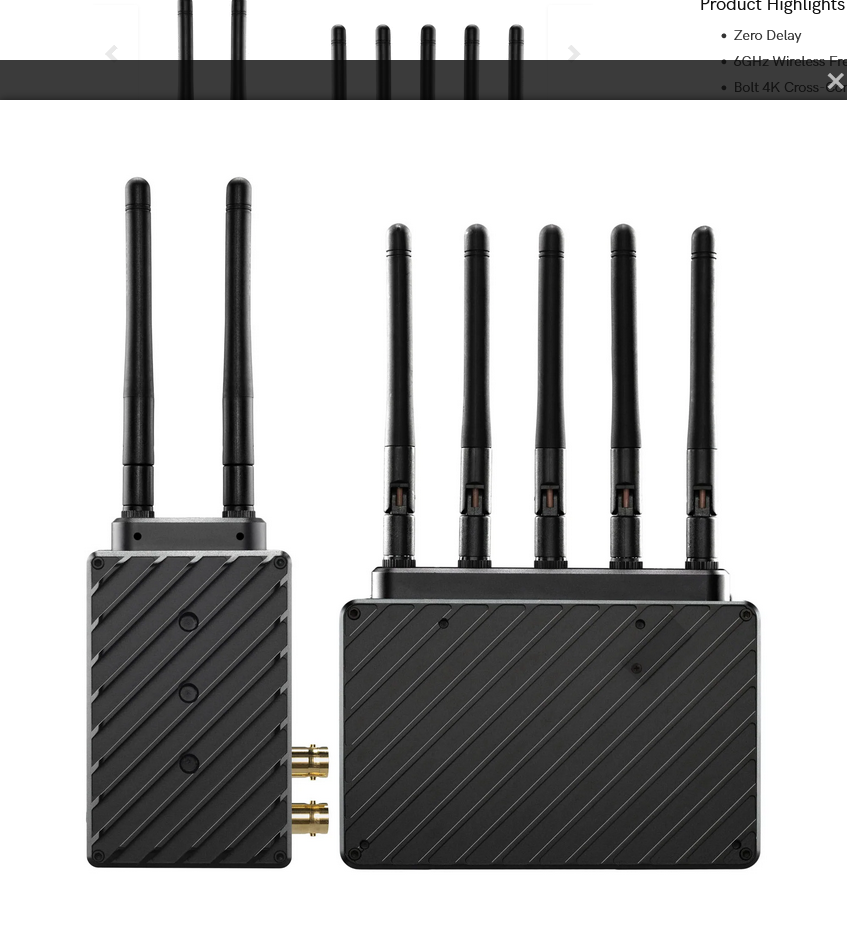

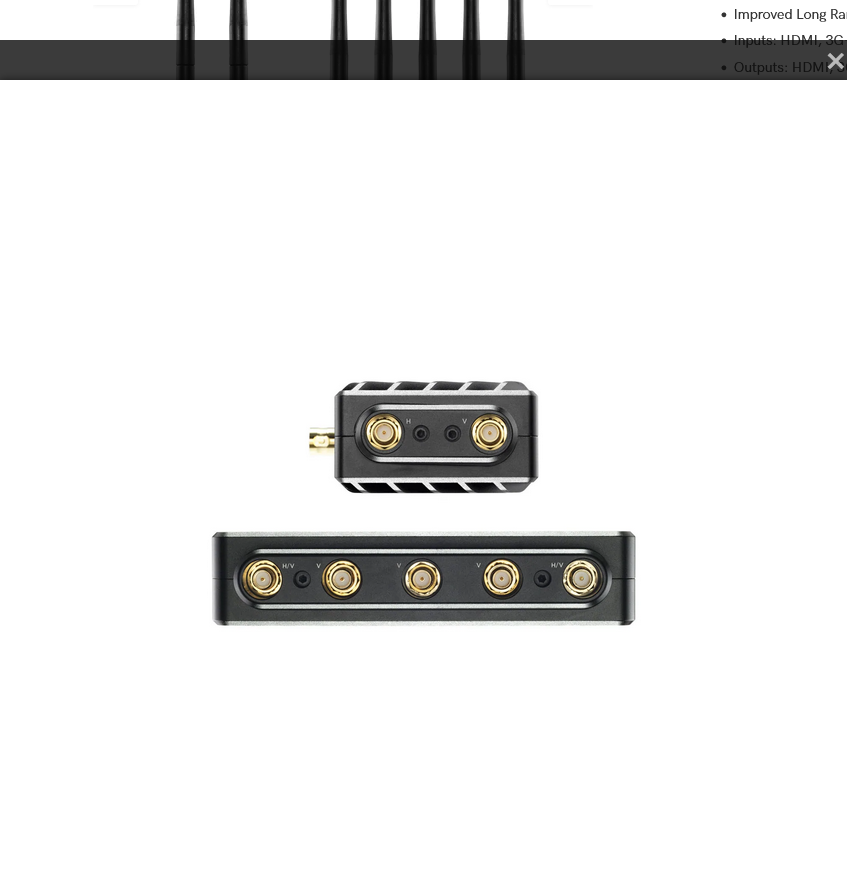

Antenna Ports Transmitter: 2 x RP-SMA Female
Receiver: 5 x RP-SMA Female

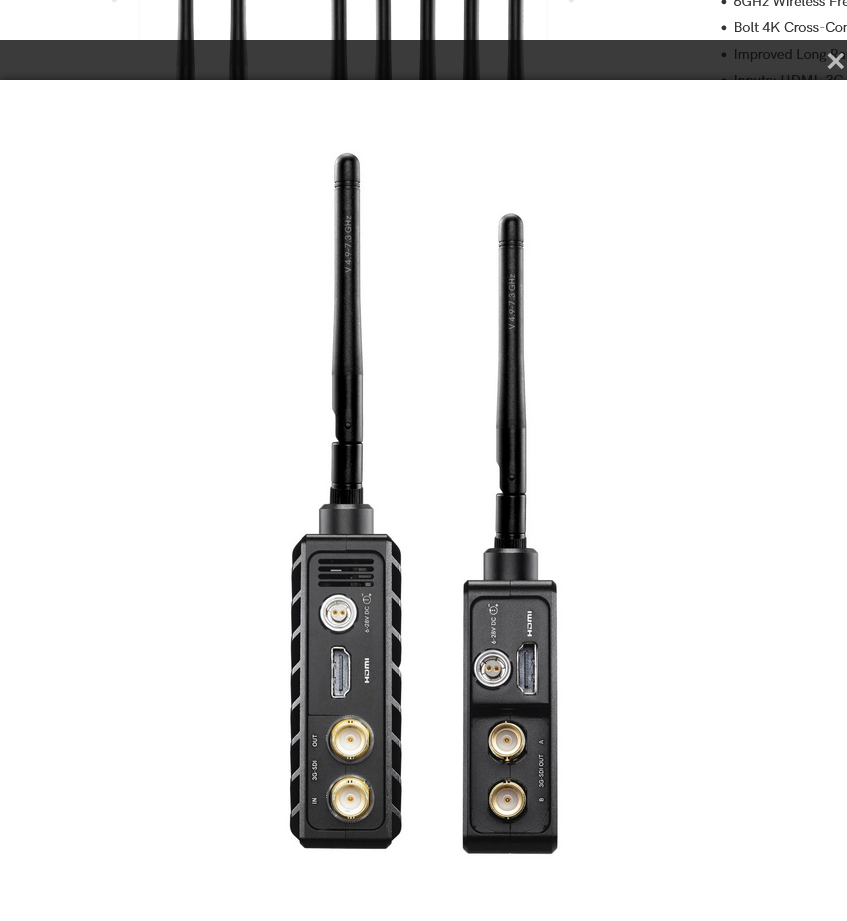

Video Transmitter: 1 x HDMI Type A Input
Transmitter: 1 x BNC (3G-SDI) Input
Receiver: 1 x HDMI Type A Output
Receiver: 1 x BNC Output
Embedded Audio SDI: 2-Channel
HDMI: 2-Channel
Audio : None
Power: Transmitter/Receiver: 1 x LEMO 2-Pin Input
Other I/O: Transmitter/Receiver: 1 x Micro-USB Input
Encryption: 256-Bit AES

Wireless
Wireless Range 1500' / 457.2 m (Line-of-Sight)
# of Channels
&emsp, 13 (40 MHz)
&emsp, 25 (20 MHz)
Channel Bandwidth : 40 MHz, 20 MHz
Frequency Range Non-DFS Frequencies
US: 5.94 to 6.42 GHz
US: 5.19 to 5.23 GHz
US: 5.75 to 5.79 GHz
DFS Frequencies
US: 5.27 to 5.67 GHz
Latency < 0.01 ms
RF Power : 23 dBm
Wi-Fi : None
Bluetooth: Yes
Format Support

Video Format
HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
&emsp, UHD 4K: 30/29.97/25/24/23.98
&emsp, 1080p: 60/59.94/50/30/29.97/25/24/23.98
&emsp, 1080PsF: 30/29.97/25/24/23.98
&emsp, 1080i: 60/59.94/50
&emsp, 720p: 60/59.94/50
&emsp, 576p: 50
&emsp, 576i: 50
&emsp, 480p: 60/59.94
&emsp, 480i: 59.94
SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
&emsp, 1080p: 60/59.94/50/30/29.97/25/24/23.98
&emsp, 1080i: 60/59.94/50
&emsp, 720p: 60/59.94/50
&emsp, 576p: 50
&emsp, 576i: 50
&emsp, 480p: 59.94/50
&emsp, 480i: 59.94

Audio Format 2-Channel 24-Bit 48 kHz LPCM Audio
Wireless Video Compression : Uncompressed
Timecode Support : Yes

Power
DC Input Power 28 VDC

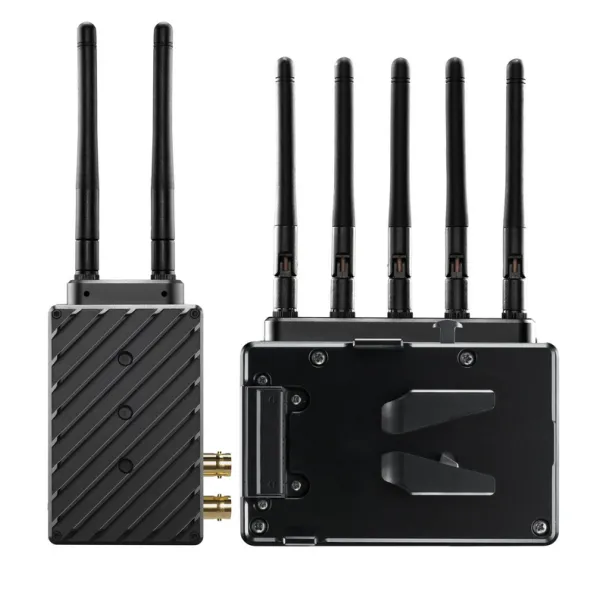

Battery Type Receiver: 1 x V-Mount
Power Consumption Transmitter: 9 W
Receiver: 11 W

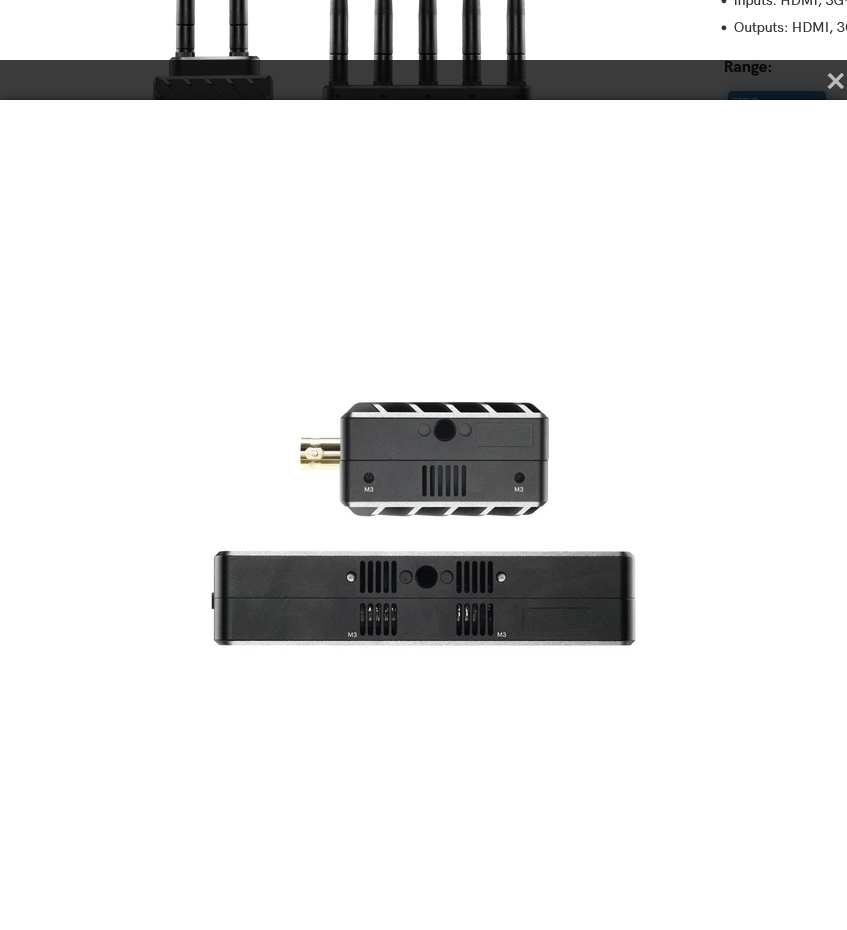

Mounting
&emsp, 1 x 1/4"-20 Female
&emsp, 1 x 3/8"-16 Female

Environmental
IP Rating: None
Operating Temperature 32 to 72°F / 0 to 40°C

General
Material of Construction: Aluminum, Polycarbonate
Dimensions Transmitter: 4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm
Receiver: 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm
Weight :
&emsp, Transmitter: 7.3 oz / 206 g
&emsp, Receiver: 10.3 oz / 292 g
1x Bolt 6 LT 1500 TX V-Mount
1x Bolt 6 LT 1500 RX V-Mount
1x Antenna Array
2x Bolt 4K LT RX Battery Cover
1x Lightstand Adapter ¼-20in
1x Hot Shoe Adaptor
2x Screw Flat Head Phillips
1x (Bit 118) 2pin Conn. To PowerTap - 18in/46cm Cable
1x (Bit 718) 2pin Conn. To 2pin Conn. (Alexa) 18in/46cm Cable
5x RP-SMA Female to RP-SMA Female 4in/10cm Cable
2x SDI - BNC to BNC Cable, 10in
1x PSU 2pin Conn. To 18W AC Adapter (Int) - 6ft Cable
1x Wooden Camera - Teradek Offset Mount for Bolt 4K LT TX
1x Teradek Case XL - Bolt 6 LT TX/4RX and Antenna Array
1x USB Male Type A (Full) - USB Male Type B (Micro) -3ft Cable
3x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA
