Bolt 6 XT 1500 Deluxe Set VM - TeradekEAN  818264027196

Wireless Video systems > Professional Wireless Transmission Systems
EAN:818264027196
₦ 16,800,905.18
VAT Included
Adcom - Teradek
New
Available in 10 days

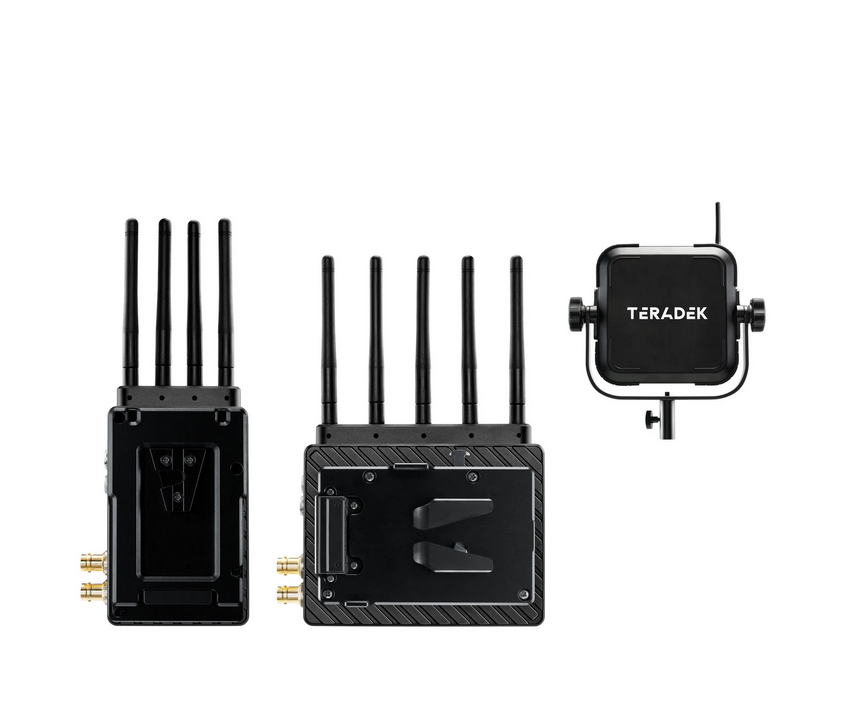

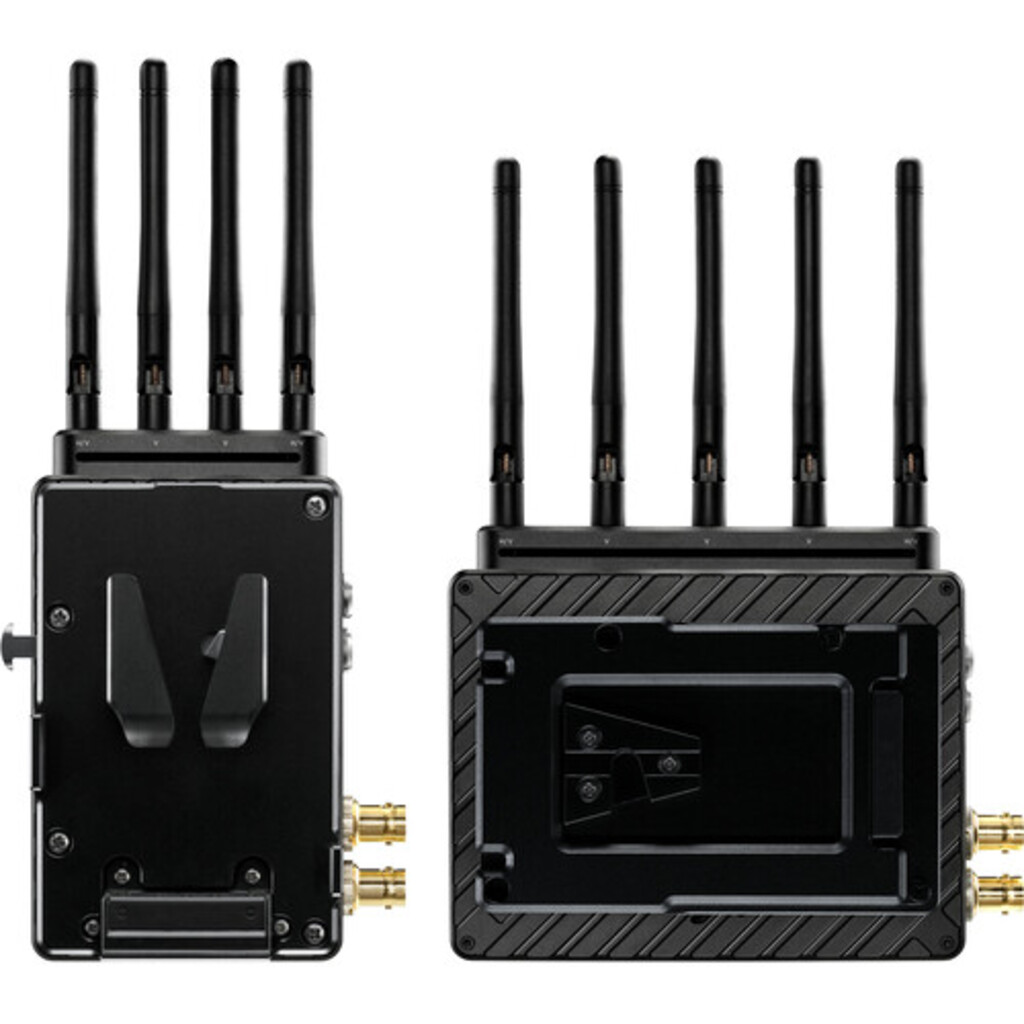

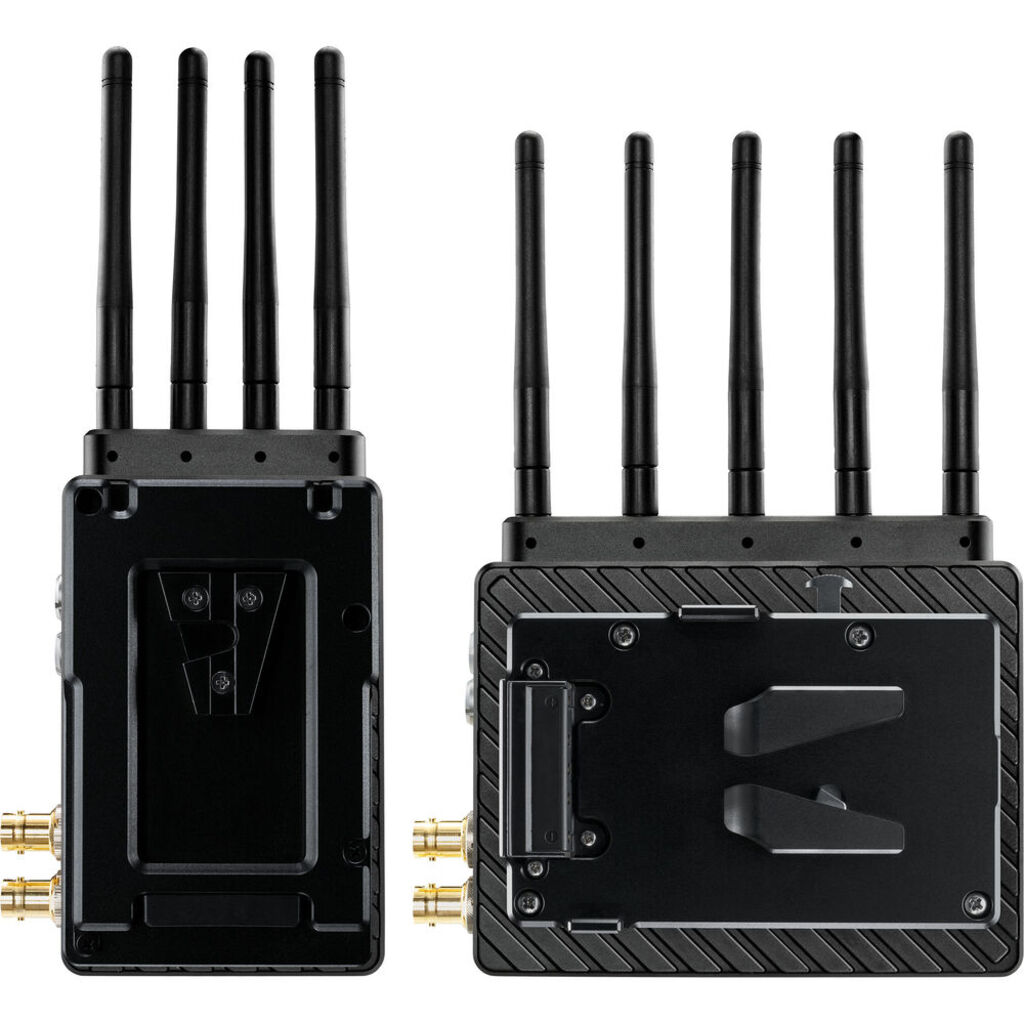

The Bolt 6 XT Set is a real-time wireless video transmission system that supports 4K video with Teradek's patented Zero-Delay technology, now with less interference using the newly opened 6GHz wireless frequency. Bolt 6 XT can send and receive color-accurate, True-HDR videos in under 0.001 seconds using the set's included Bolt 6 XT video Transmitter and Receiver.
10-2310-V

Key features of the Bolt 6 XT Set include range options designed for a variety of production needs, fast reconnection times, intuitive and easy setup with the Bolt Manager App for iOS or Android, and consistent, stable connectivity. The Bolt 6 XT series utilizes the 6GHz band to give users better image quality and reduced interference. And when used in high-traffic areas, 6GHz wireless frequency gives Bolt 6 XT users more options for frequency adjustments with 12 new channels. Bolt 6 can also pass metadata, timecode, and start/stop flags from most camera manufacturers.

Bolt 6 XT has been redesigned to seamlessly fit into your setup, with a smaller, lighter-weight build that runs cooler and 50% quieter than the Bolt 4K. An integrated 5-pin USB port allows for effortless and wireless camera-control setup when using SmallHD Smart Monitors, and an improved long range wireless video mode. Bolt 6 also offers new tools for high-end users to have better visibility over their connections and signals, adding confidence to the workflow no matter how challenging the environment.

The included Transmitter and Receiver are cross-compatible with the entire Bolt 4K Series - including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules - giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).

Bolt 6 XT offers three line-of-sight options: 750 ft., 1500 ft., and the MAX Set, which can be configured for up to 5,000+ ft. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates.

About 6GHz
Wifi routers,
Antenna Ports Transmitter: 4 x RP-SMA Female
Receiver: 5 x RP-SMA Female
Video Transmitter: 1 x HDMI Type A (HDMI 2.0) Input
Transmitter: 1 x BNC (12G-SDI) Input
Transmitter: 1 x BNC (12G-SDI) Loop Output
Receiver: 1 x HDMI Type A (HDMI 2.0) Output
Receiver: 1 x BNC (12G-SDI) Output
Embedded Audio SDI: 2-Channel
HDMI: 2-Channel
Audio None
Power Transmitter/Receiver: 1 x LEMO 2-Pin Input
Other I/O Transmitter/Receiver: 1 x USB Type-C Input
Encryption 256-Bit AES
Wireless
Wireless Range 1500' / 457.2 m (Line-of-Sight)
Channel Bandwidth 40 MHz, 20 MHz
Frequency Range Non-DFS Frequencies
US: 5.94 to 6.42 GHz
US: 5.19 to 5.23 GHz
US: 5.75 to 5.79 GHz
DFS Frequencies
US: 5.27 to 5.67 GHz
Latency < 0.01 ms
RF Power 23 dBm
Wi-Fi None
Bluetooth Yes
Format Support
Video Format HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC)
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
SDI (8/10-Bit 4:4:4/4:2:2 RGB, YCC)
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 59.94/50
480i: 59.94
Audio Format 2-Channel 24-Bit 48 kHz LPCM Audio
Wireless Video Compression Uncompressed
Timecode Support Yes
Power
DC Input Power 28 VDC
Battery Type Receiver: 1 x V-Mount
Power Consumption Transmitter: 20 W
Receiver: 18 W
Mounting
Mounting 1 x 1/4"-20 Female
1 x 3/8"-16 Female
Environmental
IP Rating None
Operating Temperature 32 to 72°F / 0 to 40°C
General
Material of Construction Aluminum
Dimensions Transmitter: 5.2 x 3.6 x 1.1" / 132 x 91 x 27 mm
Receiver: 5.4 x 4.4 x 1.1" / 138 x 112 x 27 mm
Weight Transmitter: 12.1 oz / 344 g
Receiver: 15.2 oz / 430 g

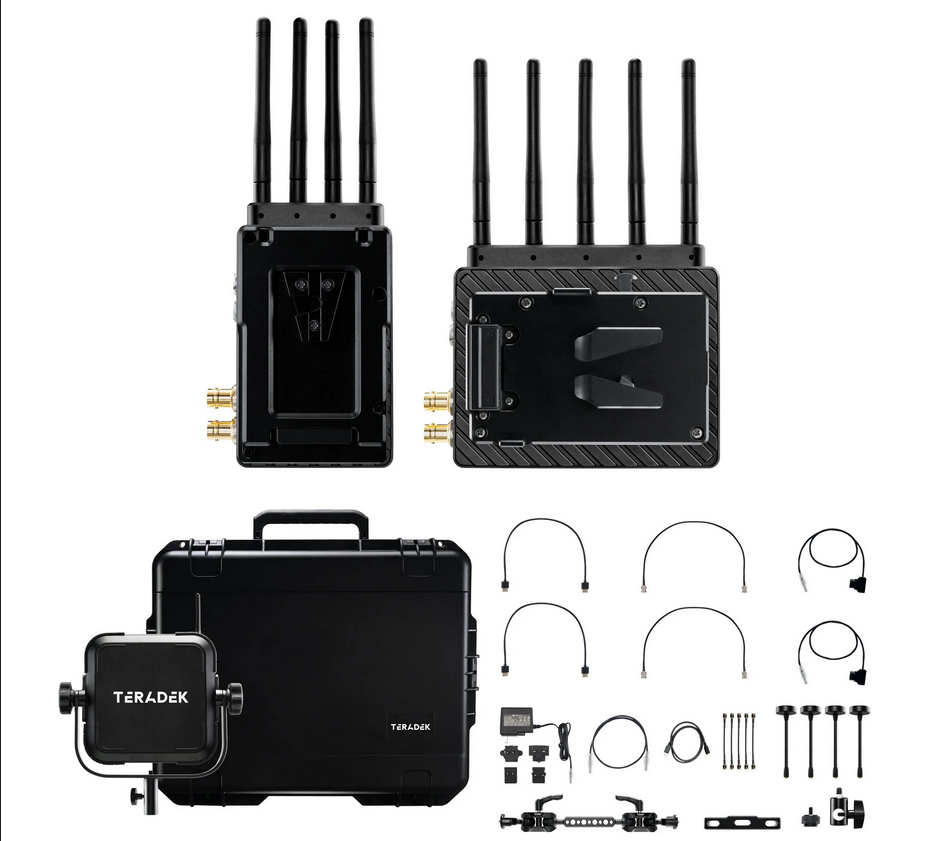

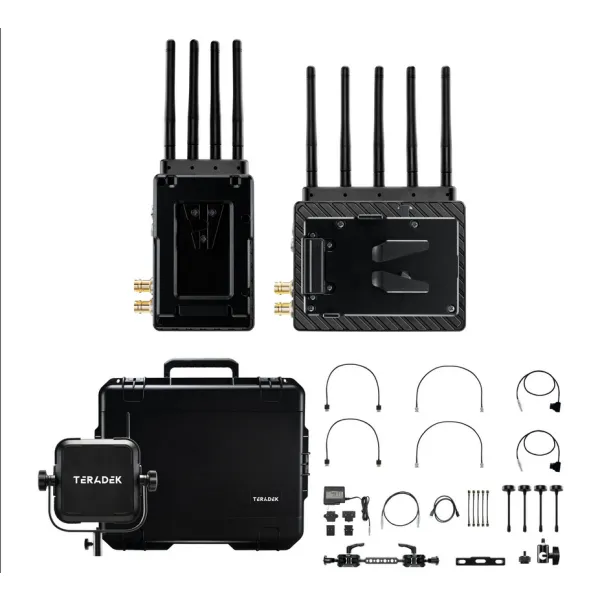

1 x Bolt 6 XT 1500 TX V-Mount
1 x Bolt 6 XT 1500 RX V-Mount
1 x Antenna Array
2 x Bolt 6 XT Battery Cover Plate Front
1 x Bolt 4K TX Mounting Bracket
1 x Lightstand Adapter 3/8in
1 x Hot Shoe Adaptor
4 x Screw Flat Head Phillips
2 x Screw Socket Cap A S, M3 x 16mm
1 x Hex L key 2.5mm size 3-5/8" length
2 x (Bit 118) 2pin Conn. To PowerTap - 18in/46cm Cable
1 x (Bit 718) 2pin Conn. To 2pin Conn. (Alexa) 18in/46cm Cable
5 x RP-SMA Female to RP-SMA Female 4in/10cm Cable
2 x SDI 12G BNC to BNC 18in/46cm Cable
1 x Teradek Case XL - Bolt XT/4RX and Array Antenna
1 x PSU 2pin Conn. To 30W AC Adapter (Int) - 6ft Cable
9 x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA
1 x Wooden Camera - Universal Ultra Arm Monitor Mount (Combo 1/4-20 & 3/8-16, 5")
1 x USB 2.0 Type A Male to USB Type C Male - 1m Cable
2 x Bolt 6 XT Battery Cover Plate Rear
