CIMO-160S - Swit
Batteries & plates > Batteries V Mount Li Ion
EAN:6948193512686
₦ 662,413.93
VAT Included
VAT Included
Promotion valid until
Adcom - Swit
New
Available in 11 days
Swit 160Wh USB-C OLED info Cine V-mount Battery
- Cine style V-mount battery
- 160Wh/11.1Ah fly-friendly capacity
- 200W/16A constant high load, 270W peak

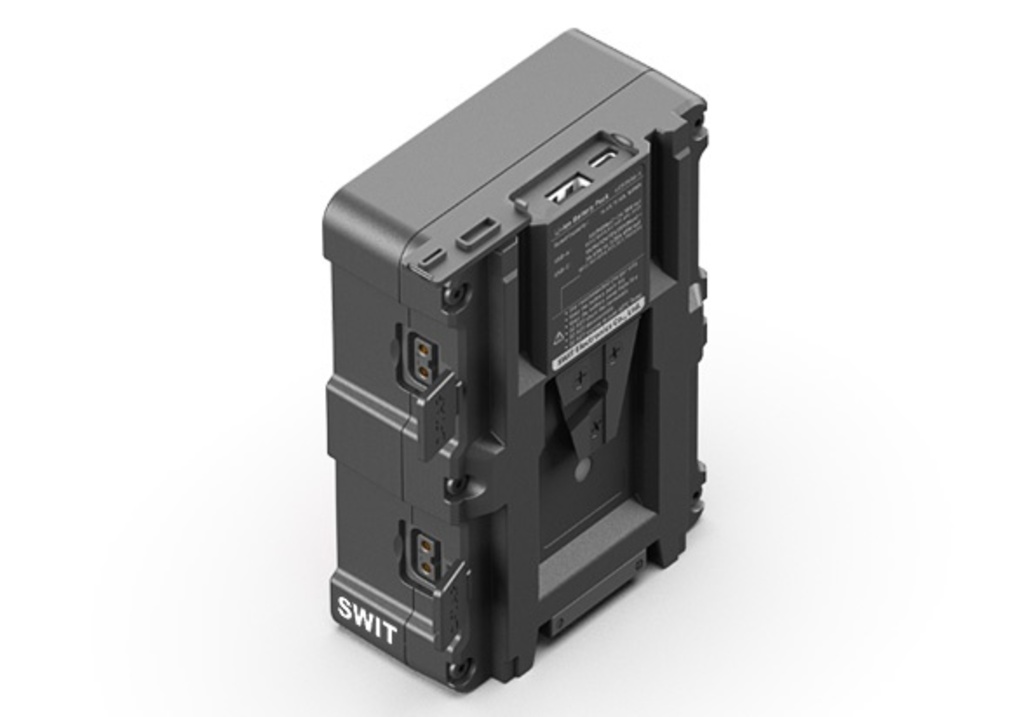

- 2×D-tap output & charging input
- 1x USB-A 5V/9V 2A 18W output
- 1x USB-C 65W output & 60W input
- OLED remaining run time display
- Rear LED torch for dark environment
- Strong housing 1.2m drop-off proof
- BMS multiple circuit protections
CINE V-Mount Battery
The CIMO series cine class V-mount batteries featured high power load, 2× D-tap, 65W USB-C, OLED power info display, battery life inspection and 1.2m drop-off proof for professional cinematographers.

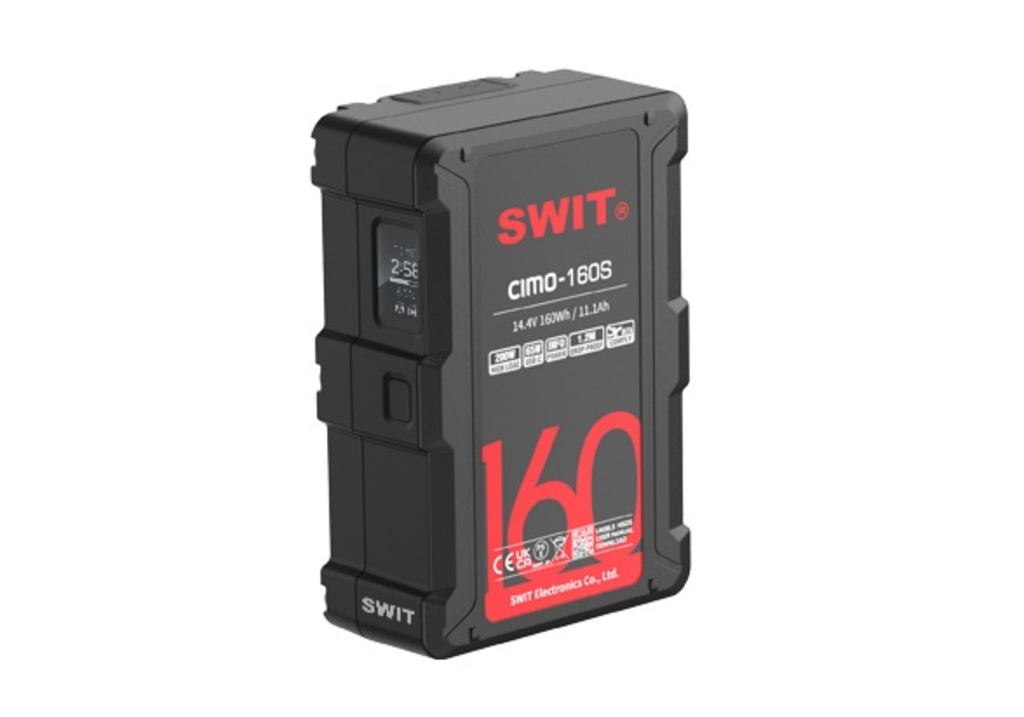

14.4V, 160Wh Capacity
CIMO-160S consists of 16pcs ternary lithium cells, 14.4V nominal voltage, 160Wh, 11.1Ah large capacity.
The ternary lithium cells provide higher energy density, achieve higher capacity with a smaller size, and excellent low-temperature performance, capable of supplying power under -20°C cold environment.
200W Constant / 270W Peak (High Load Output)
CIMO-160S outputs at least 200W/16A high load even at 1% capacity (Peak load up to 270W), to drive high power Cine cameras and on-camera devices together.
The high load cells will also ensure battery life comparing to normal load batteries if long time full load output.
100W 6A Fast Charging
CIMO-160S supports 100W/6A fast charging by SWIT PC-P461S / MATRIX-S8 / S-3812S chargers, twice the charging speed, and the 6A fast charging will not affect the lifespan of ternary lithium cells.
The 160Wh battery can be charged from 0 to 80% after 1.5 hours, and fully charged within 2.5 hours.

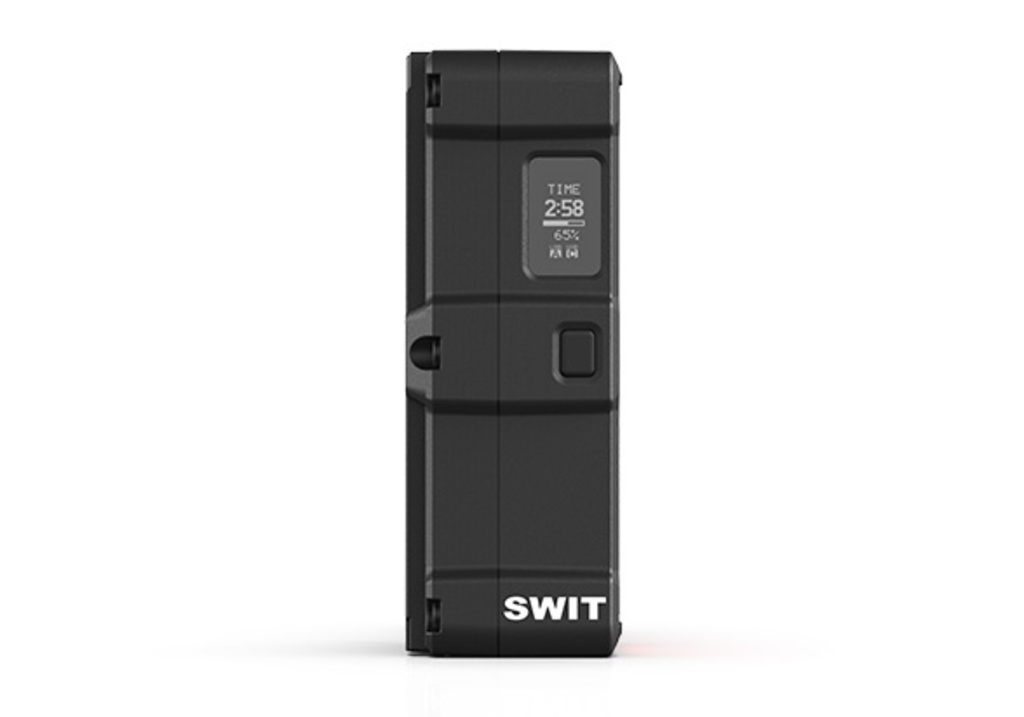

OLED Power Info / Health Level Display
CIMO-160S battery provides an OLED screen to display battery status and power information, includes power percentage, remaining running time, and long press the power check button to display battery cycle times, health level for battery management.
USB-C 65W Output
The USB-C port of CIMO-160S outputs 5V/9V/12V/15V 3A, 20V(Max) 3.25A, 65W
