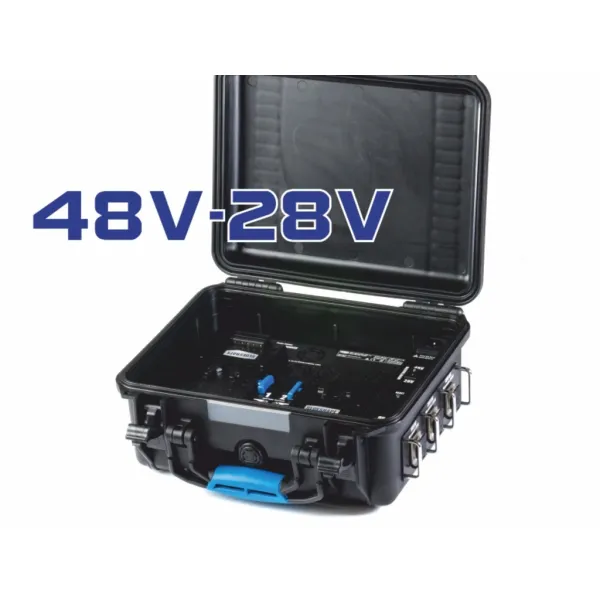

PWS-RUGGED MINI - Blueshape
Power Station > Power Station V lock
₦ 1,755,536.41
VAT Included
VAT Included
Adcom - Blueshape
New
Available in 2 days

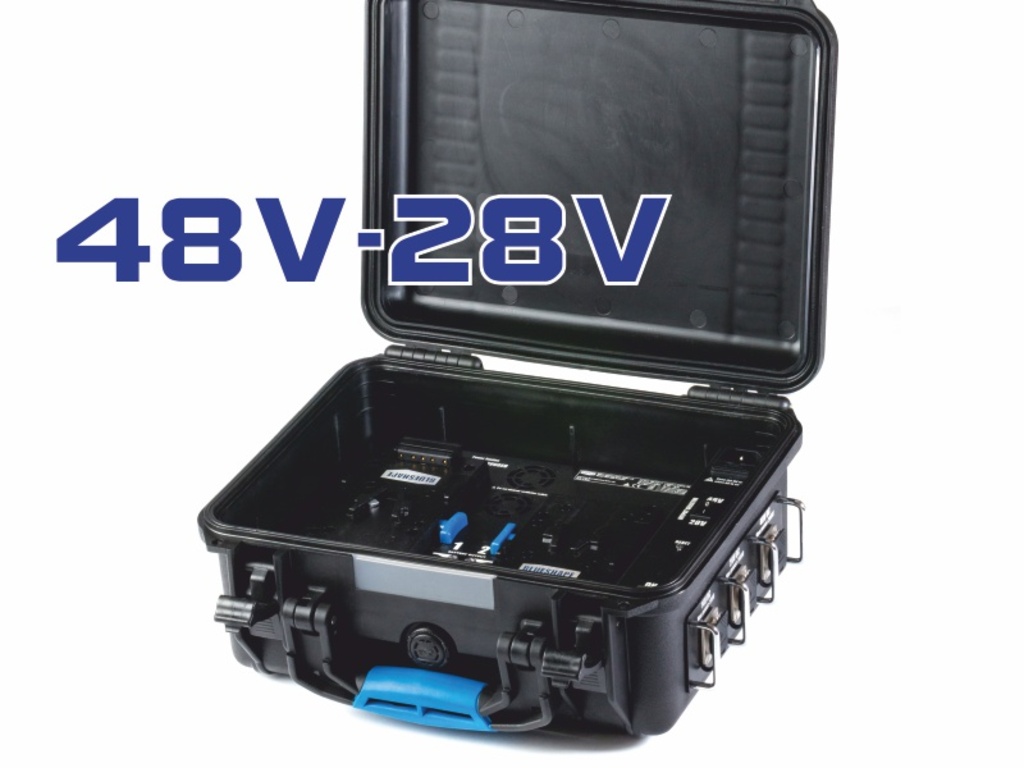

Mini Field production 48V-28V-14V Rugged Power Station

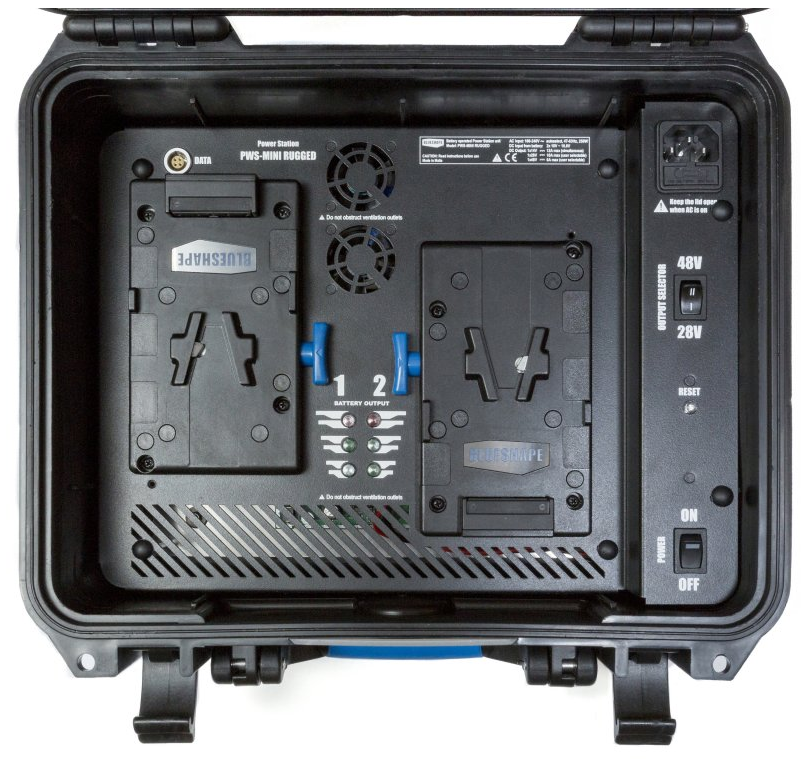

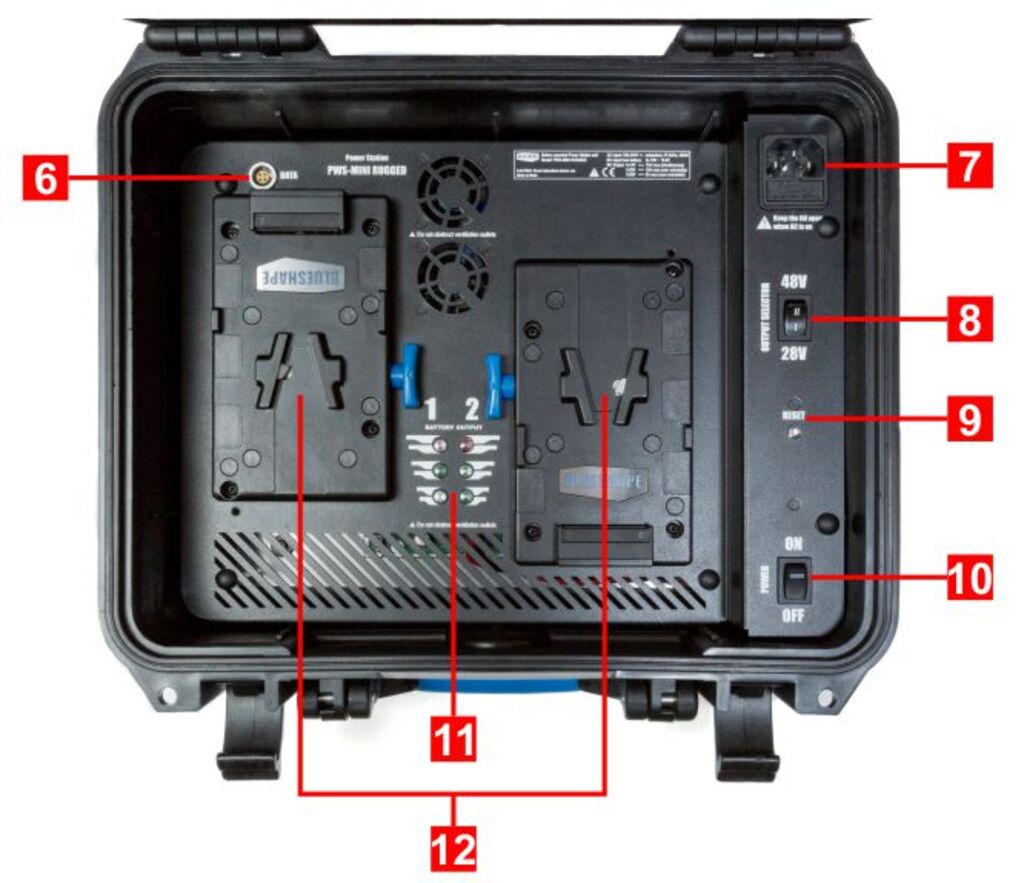

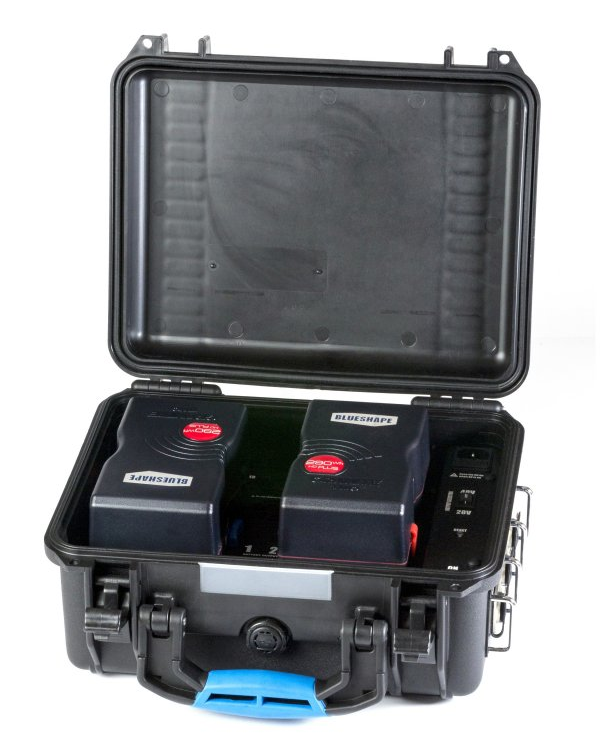

Input: 1 to 2 installable batteries, hot swappable
Output (outside): 3 simultaneous
1x regulated 48V, max 280W (user selectable)
1x regulated 28V, max 280W (user selectable)
1x regulated 14V, max 170W (always available)
AC charging feature: 2 independent 65W battery chargers included to charge the batteries in place
Display: 3 LEDs gauge per battery

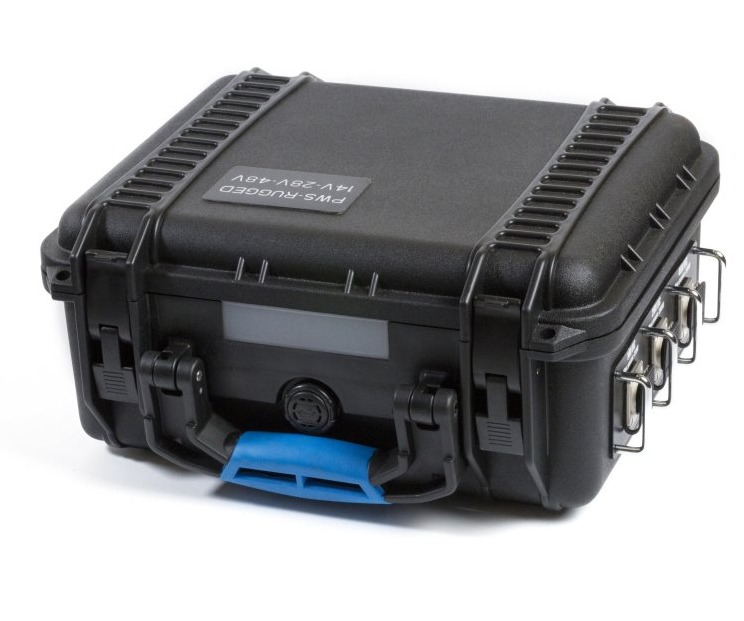

Lightweight, IP67 waterproof, unbreakable case with ergonomic handle
Automatic valve to automatically self adjusts the internal air pressure
Heavy duty latches designed to remain closed even if the case falls
Reinforced corners for maximum impact resistance
Size: 335 x 289 x 155 mm (13.19" x 11.38" x 6.10")
Weight: 4.5Kg (9.92lbs) without batteries
PWS-RUGGED MINI is the evolution of the Power Station family, designed for field productions for medium to high power devices.

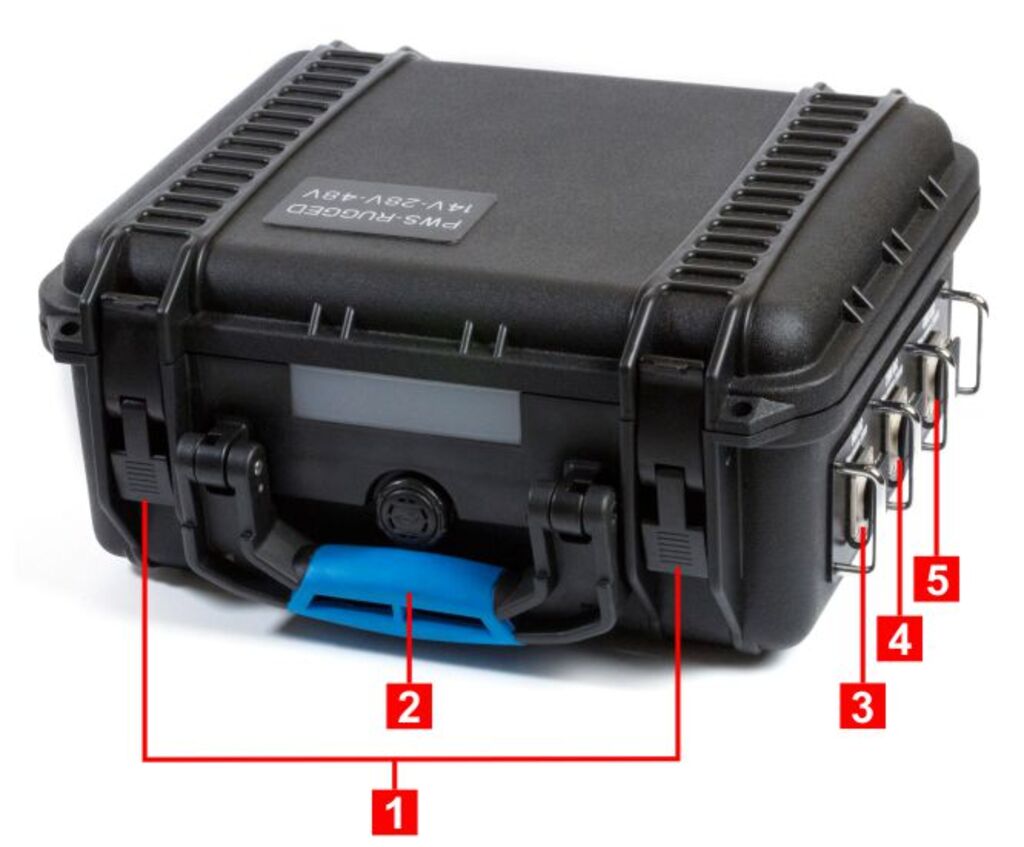

This useful device integrate and combines the power of up to 2 V-Lock batteries into a unique source and provides 3 different ouputs over XLR connectors:
1x 14V, XLR-4 pin
1x 28V, XLR-3 pin
1x 48V, XLR-3 pin

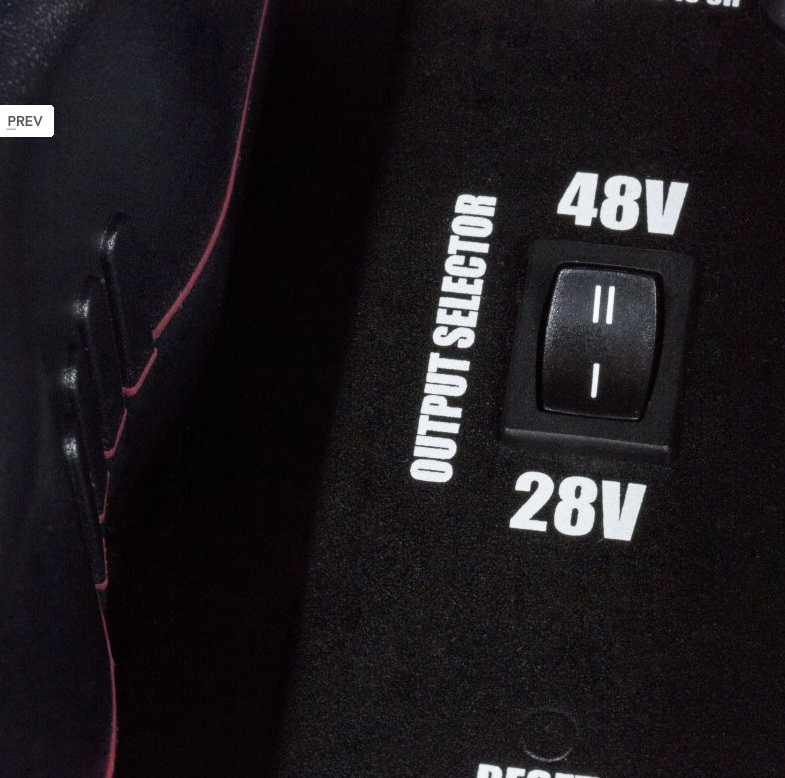

While the 14V output is always available, the 28V-48V are alternative and user selectable through a switch.
PWS-RUGGED MINI is constructed inside a lightweight, waterproof, unbreakable case, with a double-hinged locking system and a soft grip handle for field comfort.
PWS-RUGGED MINI also includes 2 independent 65W chargers: when AC is connected the installed batteries are charged accordingly with the system continuing to release DC power as requested. In this way PWS-RUGGED MINI may also act as a powerful UPS system, since a sudden cut of the AC input will not affect the DC output that remains sustained by the batteries installed.
The BLUESHAPE power station concept is a convenient system to integrate the power of multiple V-lock batteries into a unique source that can be tapped anywhere anytime in a simultaneous dual voltage output.
The available output
Input: 1 to 2 installable batteries, hot swappable
Output (outside): 3 simultaneous
1x regulated 48V, max 280W (user selectable)
1x regulated 28V, max 280W (user selectable)
1x regulated 14V, max 170W (always available)
AC charging feature: 2 independent 65W battery chargers included to charge the batteries in place
Display: 3 LEDs gauge per battery
Lightweight, IP67 waterproof, unbreakable case with ergonomic handle
Automatic valve to automatically self adjusts the internal air pressure
Heavy duty latches designed to remain closed even if the case falls
Reinforced corners for maximum impact resistance
Size: 335 x 289 x 155 mm (13.19" x 11.38" x 6.10")
Weight: 4.5Kg (9.92lbs) without batteries
PWS-RUGGED MINI is the evolution of the Power Station family, designed for field productions for medium to high power devices.
This useful device integrate and combines the power of up to 2 V-Lock batteries into a unique source and provides 3 different ouputs over XLR connectors:
1x 14V, XLR-4 pin
1x 28V, XLR-3 pin
1x 48V, XLR-3 pin
While the 14V output is always available, the 28V-48V are alternative and user selectable through a switch.
PWS-RUGGED MINI is constructed inside a lightweight, waterproof, unbreakable case, with a double-hinged locking system and a soft grip handle for field comfort.
PWS-RUGGED MINI also includes 2 independent 65W chargers: when AC is connected the installed batteries are charged accordingly with the system continuing to release DC power as requested. In this way PWS-RUGGED MINI may also act as a powerful UPS system, since a sudden cut of the AC input will not affect the DC output that remains sustained by the batteries installed.
The BLUESHAPE power station concept is a convenient system to integrate the power of multiple V-lock batteries into a unique source that can be tapped anywhere anytime in a simultaneous dual voltage output.
The available output
