Panasonic PT-FRZ60BEJEAN  5025232941384

Laser is Enhanced with the Latest DLP Technology : Together with the latest DLP module for detailed WUXGA resolution and new-generation solid-state laser diodes for high brightness, PT-RZ570 Series' outstanding performance stems from a four-segment Quartet Color Harmonizer color wheel that reduces energy loss from the light source, an all-new heat-resistant phosphor wheel, and an optimized laser drive system to boost perceived brightness and improve color accuracy.

Natural White Balance : Quartet Color Harmonizer captures a wider section of the color gamut than comparable projectors, which in turn allows white to be reproduced realistically on screen. In conventional projectors, if an ideal white balance isn't achieved, images can appear with a distracting greenish tint

Laser Module Maintains Picture Quality for Longer : Thanks to the long-lasting laser light-source module, there are no lamps to replace and image color and brightness degrade more gradually and in a linear rather than exponential fashion. As well as reducing maintenance hassle, high picture quality is maintained for longer.

Rich Color Enhancer : Rich Color Enhancer offers a Dynamic Mode setting to increase image brightness, or Graphic Mode/Standard Mode, which adjusts color-wheel timing to produce deeper, richer colors in rooms where maximum brightness is unnecessary.

Safety Guaranteed : Panasonic laser light is no more harmful to eyesight than a regular lamp-based projector, as a diffusing lens reduces beam energy concentration. Accidental direct exposure to will not result in damage to eyesight.

The laser light source does not require any warm-up time, so images appear almost instantly (about one second*) with PT-RZ570 Series projectors. There's also no cooling time required when turning the power off. Users can turn the projector on and off immediately as many times as necessary.

Wide-Range 2.0x Zoom and Lens Shift : The inclusion of a versatile 2x zoom and joystick-operated wide-range lens shift grants flexibility for installation in different rooms and for projection on different screen sizes. To produce a 100-inch-diagonal wide-screen image, projection distance extends from approximately 3.3 m (10.8 ft) to approximately 6.7 m (22.0 ft).

Screen Adjustment for Specially Shaped Screens : Horizontal, vertical, and corner keystone correction adjusts the image shape for clear visibility when projecting off-axis or from an unusual angle. Curved Screen Correction allows for the projection of natural, distortion-free images onto curved or cylindrical surfaces.

Free 360-degree Rotation : Projection is possible in any orientation vertically and horizontally, and the unit can be rotated 360 degrees for installation at any angle.

Edge Blending and Color Matching : Adjoining edges in a multi-screen system can be blended to create a smooth and seamless image. Slight variations in the color reproduction of individual projectors can be corrected in multi-screen applications.

New-generation laser diode delivers high 5,000 lm of brightness.
Featuring WUXGA resolution, ideal for lectures and presentations requiring highly detailed images.
Dynamic Light Control for 20,000:1*1 contrast.
Daylight View Basic produces pin-sharp images in bright environments.
Detail Clarity Processor 3 sharpens the finest details.
DICOM Simulation Mode*2 for medical presentations and training.
Wide-range 2.0x zoom and lens shift.
Single-cable DIGITAL LINK connection transmits full HD video and control signals for up to 150 m (492 ft)*4.
Free 360-degree installation (vertical and horizontal) including portrait mode for vertical image projection.
Auto screen image rotation.
Geometric Adjustment for specially shaped screens.
Multi-Screen Support System seamlessly joins screens with Edge blending and Color matching functions.
Compatible with Art-Net lighting-control protocol.
Fade In and Fade Out function for a smoother presentation.
Quick start and quick off.
Silent 29 dB operation mode.

Projection Technology Laser Light Source / DLP Display
Native Resolution WUXGA
Brightness (Lumens) 5200
Contrast Ratio 20000:1
Lens Ratio 1.46-2.94:1
Optical Zoom 2.00x
Lens Shift Vertical Positive (%) 62
Lens Shift Vertical Negative (%) 40
Lens Shift Horizontal Positive (%) 27
Lens Shift Horizontal Negative (%) 34
Keystone Horizontal Negative (degrees) 20
Keystone Horizontal Positive (degrees) 20
Keystone Vertical Negative (degrees) 40
Keystone Vertical Positive (degrees) 40

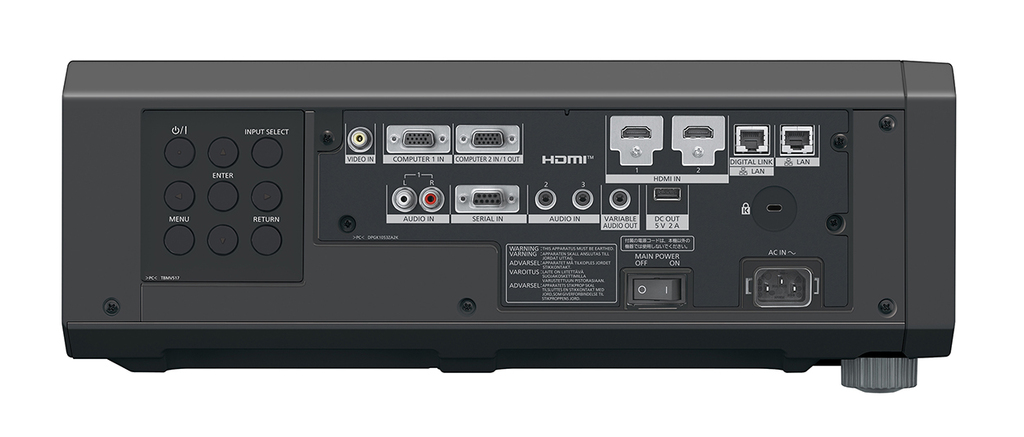

Connectivity
HDMI 2
DisplayPort 0
HDBaseT Yes
DVI-D 1
VGA in 2
VGA out 1
BNC Video NA
Composite Video 1
Component Video 0
USB for display and control No
USB for PC Less Presentation NA
RJ45 For Control/Monitoring 1
RS232 For Control 1
Screen Trigger No
Physical
Dimensions (W x H x D) in cm 1198 x 1019 x 6110
