Kona 4 - AJA
Capture and encoding units > AJA PCIe
EAN:892448000229
₦ 5,258,146.43
VAT Included
VAT Included
Adcom - AJA
New
Available in 10 days

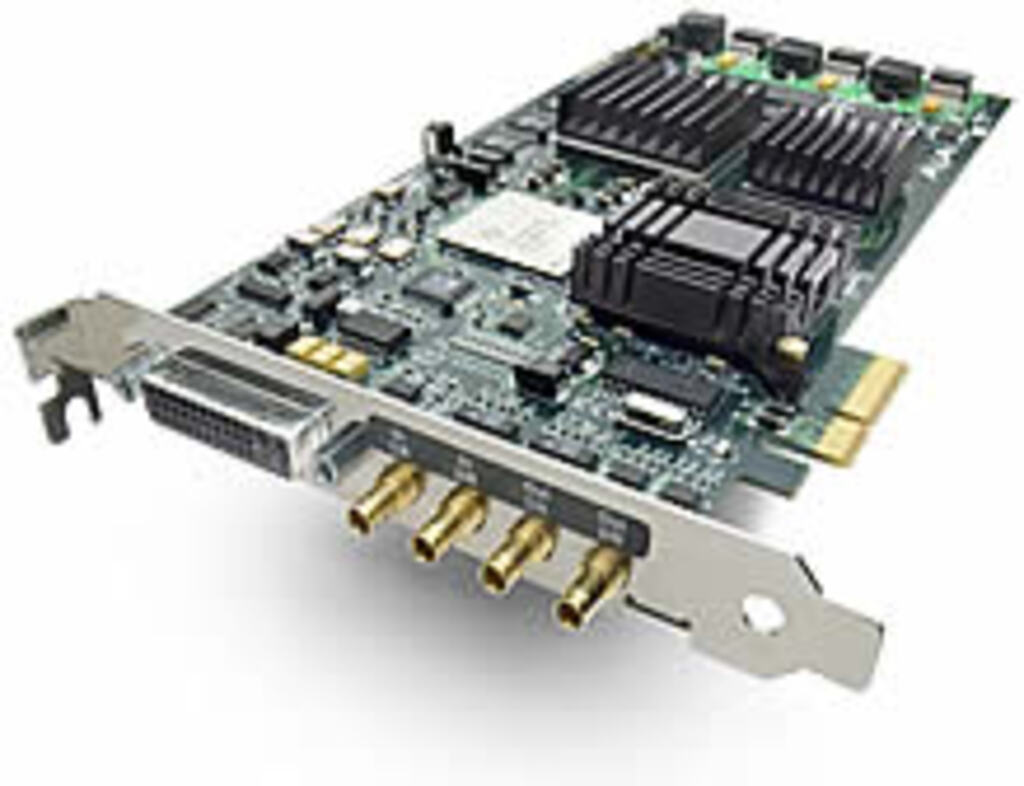

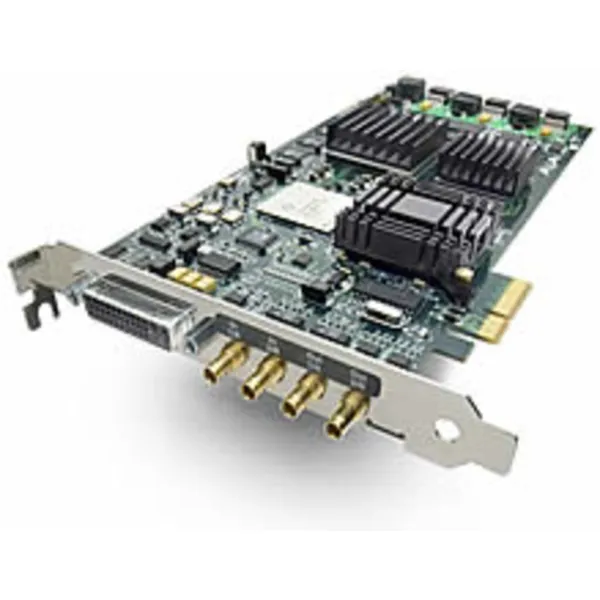

PCI-E Video I/O Professional grade capture card with 4 SDI and HDMI inputs capable of managing 4 signals with resolution up to 4K in uncompressed mode and with the ability to perform Up/Down/Cross-Conversion via hardware without weighing down other processing software.
° Supports 4K Video up to 60 fps
° 4K I/O Via SDI or HDMI
° Uncompressed 4:4:4/4:2:2 1080p I/O
° Input/Output 1080p Video Simultaneously
° Hardware Up/Down/Cross-Conversion
° 60-Pin Breakout Cable Included
° 4-BNC to mini-BNC Cable Included
° Works with Optional K3G Rack I/O Unit
Using integrated hardware processing, the KONA 4 PCI-E Video I/O Card from AJA can ingest and output 4K resolution video at up to 60 fps. With that resolution, you can view the details of your production natively on a 4K monitor. Along with 4K resolutions, the KONA 4 supports uncompressed 1080p I/O with 4:4:4 or 4:2:2 color subsampling. The KONA 4 can simultaneously input and output uncompressed video via its 3G-SDI ports. Two ports accept the video input while the other two can drive a professional display or output to a recording deck.
The hardware processing also allows for up, down, and cross-conversion. Usually to unify project resolution, footage must be converted or rendered in software to match it to the project. With its internal hardware scaler, the KONA 4 can unify the resolutions of the video clips in your project without prior rendering. In addition to conversion, the KONA's internal processing can overlay graphics on a video stream for quick keying.
The KONA 4 includes a 60-pin breakout cable for more I/O flexibility. Additional inputs and outputs include AES/EBU audio, LTC and Reference BNC connections, component analog video, and RSS-422 machine control. Also included are a 4-BNC to mini-BNC Link Cable and an HDMI to mini-HDMI cable. The KONA 4 can also be used in a rackmount configuration with the optional K3G Breakout Box. The K3G fits in a standard 19" rack space and has connections to take advantage of all the I/O the KONA 4 h
° Supports 4K Video up to 60 fps
° 4K I/O Via SDI or HDMI
° Uncompressed 4:4:4/4:2:2 1080p I/O
° Input/Output 1080p Video Simultaneously
° Hardware Up/Down/Cross-Conversion
° 60-Pin Breakout Cable Included
° 4-BNC to mini-BNC Cable Included
° Works with Optional K3G Rack I/O Unit
Using integrated hardware processing, the KONA 4 PCI-E Video I/O Card from AJA can ingest and output 4K resolution video at up to 60 fps. With that resolution, you can view the details of your production natively on a 4K monitor. Along with 4K resolutions, the KONA 4 supports uncompressed 1080p I/O with 4:4:4 or 4:2:2 color subsampling. The KONA 4 can simultaneously input and output uncompressed video via its 3G-SDI ports. Two ports accept the video input while the other two can drive a professional display or output to a recording deck.
The hardware processing also allows for up, down, and cross-conversion. Usually to unify project resolution, footage must be converted or rendered in software to match it to the project. With its internal hardware scaler, the KONA 4 can unify the resolutions of the video clips in your project without prior rendering. In addition to conversion, the KONA's internal processing can overlay graphics on a video stream for quick keying.
The KONA 4 includes a 60-pin breakout cable for more I/O flexibility. Additional inputs and outputs include AES/EBU audio, LTC and Reference BNC connections, component analog video, and RSS-422 machine control. Also included are a 4-BNC to mini-BNC Link Cable and an HDMI to mini-HDMI cable. The KONA 4 can also be used in a rackmount configuration with the optional K3G Breakout Box. The K3G fits in a standard 19" rack space and has connections to take advantage of all the I/O the KONA 4 h
