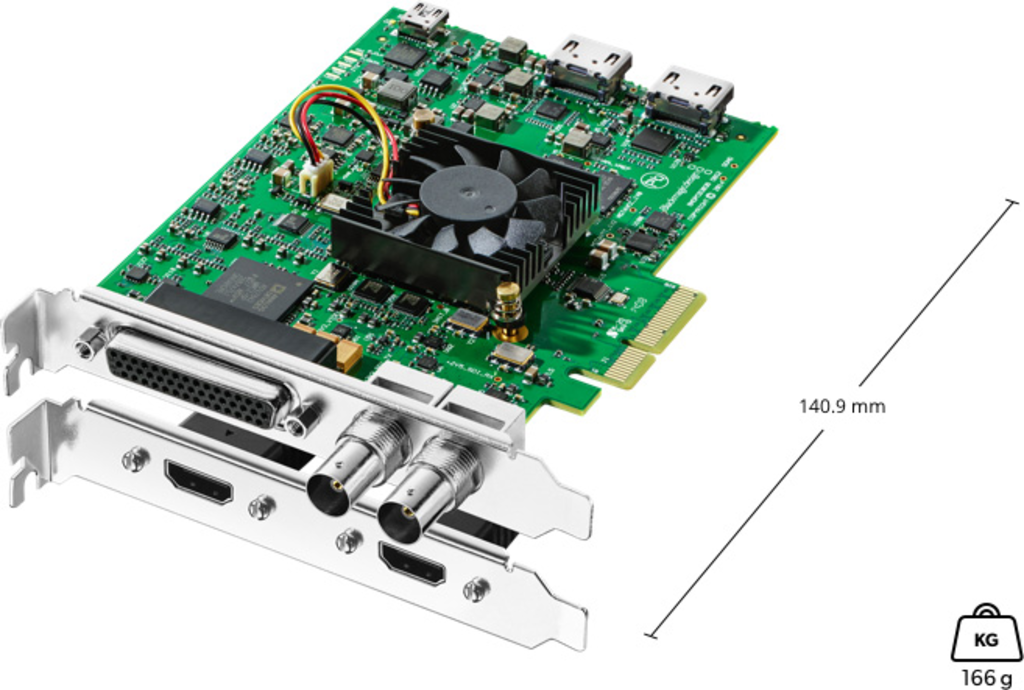

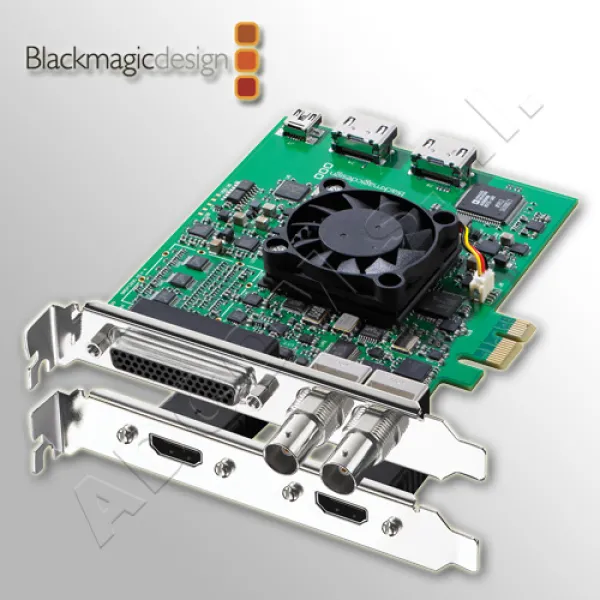

Decklink Studio ingestion board with large range of connection Analog and digital : Composite video, S-Video, Component, SDI, HD-SDI. Built in a down converter always active useful for monitoring able to switch instantly between letter box, anamorphic, centercut 4:3.
Può essere montata sia su MAC (richiede processore Intel) che su PC
Internal Keyer in SD.
Integrated recording control.
1x DeckLink Studio 4K
1x SD Card
1x Breakout cable for analog and RS-422 control.
1x HDMI bracket

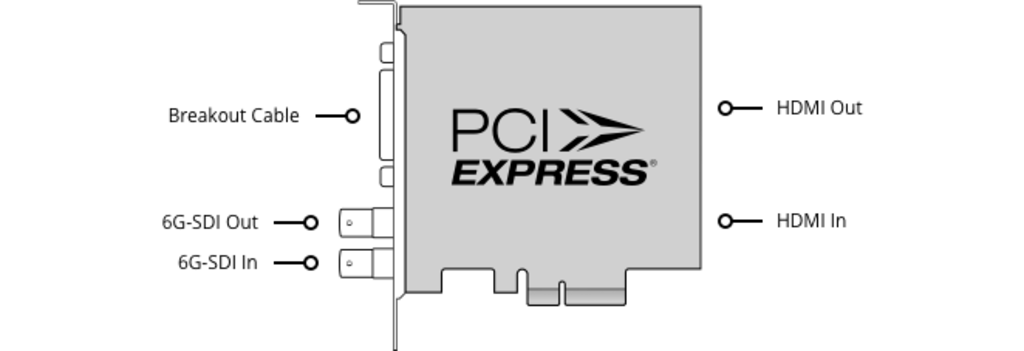

DeckLink Studio™ Connections
================
SDI Video Input 1 x 10 bit SD/HD switchable
SDI Video Output 1 x 10 bit SD/HD switchable x 10-bit SD only, down converted or key
Supported Video formats 525i NTSC, 625i PAL, 720HD and 1080HD
Analog Video Input 1 x Component video on 3 BNCs
1 x S-Video video on S-Video connector
1 x Composite NTSC/PAL on 1 BNC
Analog Video Output 1 x Component video on 3 BNCs
1 x S-Video video on S-Video connector
1 x Composite NTSC/PAL on 1 BNC
AES/EBU Audio Input 2 channel unbalanced AES/EBU digital audio with sample rate converter
AES/EBU Audio Output 2 channel unbalanced AES/EBU digital audio
Analog outputs 3 and 4 can switch to AES/EBU outputs for audio 3 & 4 and 5 & 6 output. This provides a total of 6 AES/EBU audio channels out when using this feature
SDI Audio Input 8 channel embedded in SD and HD
SDI Audio Output 8 channel embedded in SD and HD
Analog Audio Input 4 channels of professional balanced analog audio via 1/4" jack connectors
Analog Audio Output 4 channels of professional balanced analog audio via 1/4" jack connectors. Channels 3 and 4 can switch to AES/EBU outputs
Multiple Rate support Standard definition SDI and high definition SDI
Sync Input Blackburst in SD and 1080i50, 720p50, 1080i59.94, 720p59.94 HD formats or TriSync in all HD formats
Device Control Sony™ compatible RS422 deck control ports
Serial ports TxRx direction reversible under software control
Settings Control DeckLink System Preferences (Intel Mac OS X™) and DeckLink Control Panel (Windows™)
Updates Firmware for cards built into software driver. Loaded at system start, or via updater software
Standards
================
HD Format Support 1080PsF23.98/24, 1080i50, 1080i59.94, 720p50 and 720p59.94.
SD Format Support 625/25 PAL, 525/29.97 NTSC and 525/23.98 NTSC.
SDI Compliance SMPTE 259M, 292/296M.
Video Sampling 4:2:2 4:2:2
Color Precision 4:2:2 10-bit 4:2:2 10-bit
Color Space 4:2:2 YUV 4:2:2 YUV
SDI Metadata Support VITC read for 3:2 pulldown removal.
VANC c
