Eco Capture Dual HDMI 11510 - MagewellEAN  6936572400969

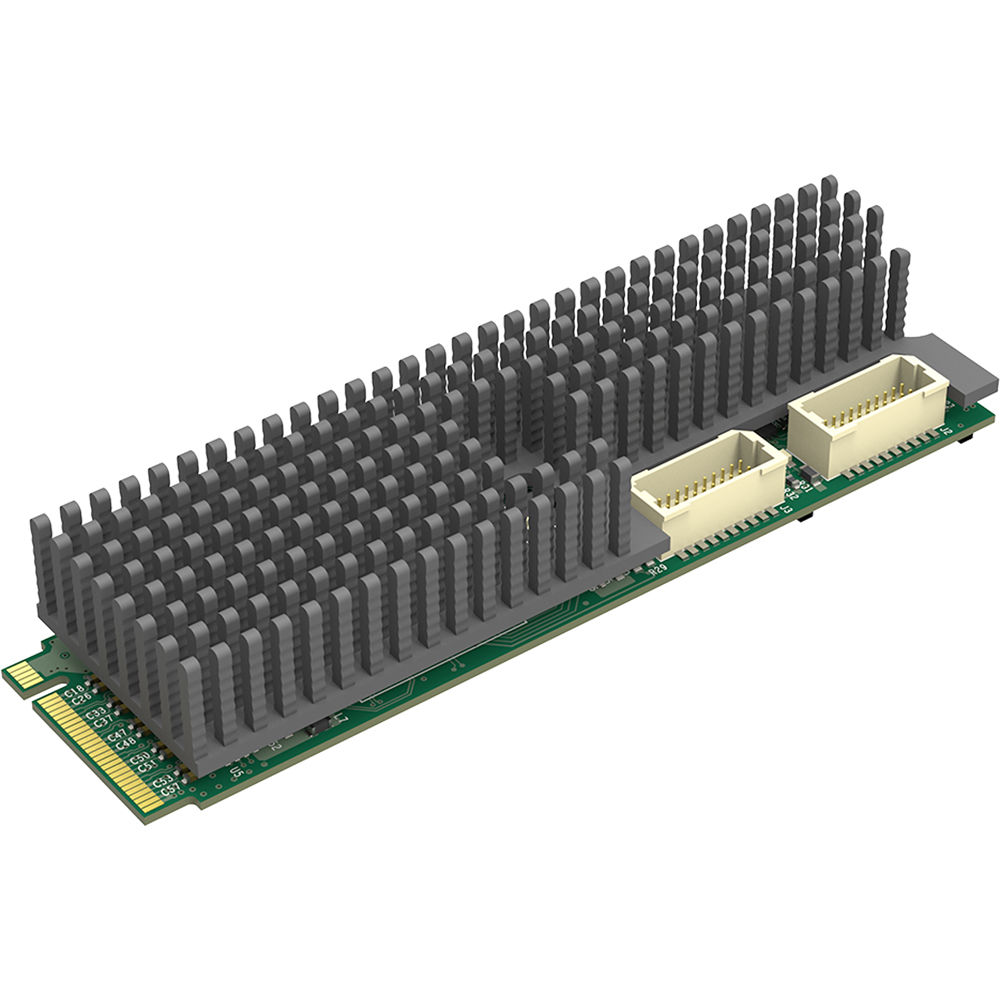

The Magewell Eco Capture Dual HDMI M.2 Card supports two HDMI input sources simultaneously and allows you to capture up to 2048 x 2160 resolution with embedded audio from each source to your computer. Featuring an M.2 (PCIe 2.0) computer interface, this card provides the flexibility to be used in compact/thin tablet computers and other small form factor PCs where PCIe slots may be at a minimum. It's compatible with Windows and Linux operating systems and is capable of operating 24 hours a day, 7 days a week while an LED indicator confirms the working state of the input the entire time (idle, input signal locked, memory failed, or FPGA configuration).

The Eco Capture Dual HDMI M.2 Card also offers many processing and other features, including resolution scaling and a high-fidelity pipeline. The card has two native JST SHD input connectors and comes with two matching SHD to HDMI type A adapter cables for connecting your HDMI signals.
Key Features

Two JST SHD connectors supporting included SHD to HDMI adapter cables
Capture 2K x 2K resolution (2048 x 2160)
M.2 Interface (PCIe 2.0)
Compatible with Windows and Linux
Resolution scaling
High-fidelity video processing pipeline
Image control
Various output color spaces
SG-DMA transmission mode
Multiple devices on one host
Multiple replicated capture streams
Hardware time stamp
Mounting hole
LED indicator
Firmware upgradeable
Common driver
24/7 continuous operation

HDMI Specific Features

165 MHz HDMI receiver
Adaptive HDMI equalizer
HDMI transmission distance up to 100'
Customized EDID
Extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
Full colorimetry
8/10/12-bit color depths
RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Up to 8-channel IEC60958/IEC61937 audio streams
Extraction of audio formation information and channel status data
Extraction of video timing information
Extraction of 3D format in
