UVC-02 - RolandEAN  4957054518356

Capture and encoding units > USB 3.0
EAN:4957054518356
₦ 366,842.68
VAT Included
Adcom - Roland
New
Available in 10 days

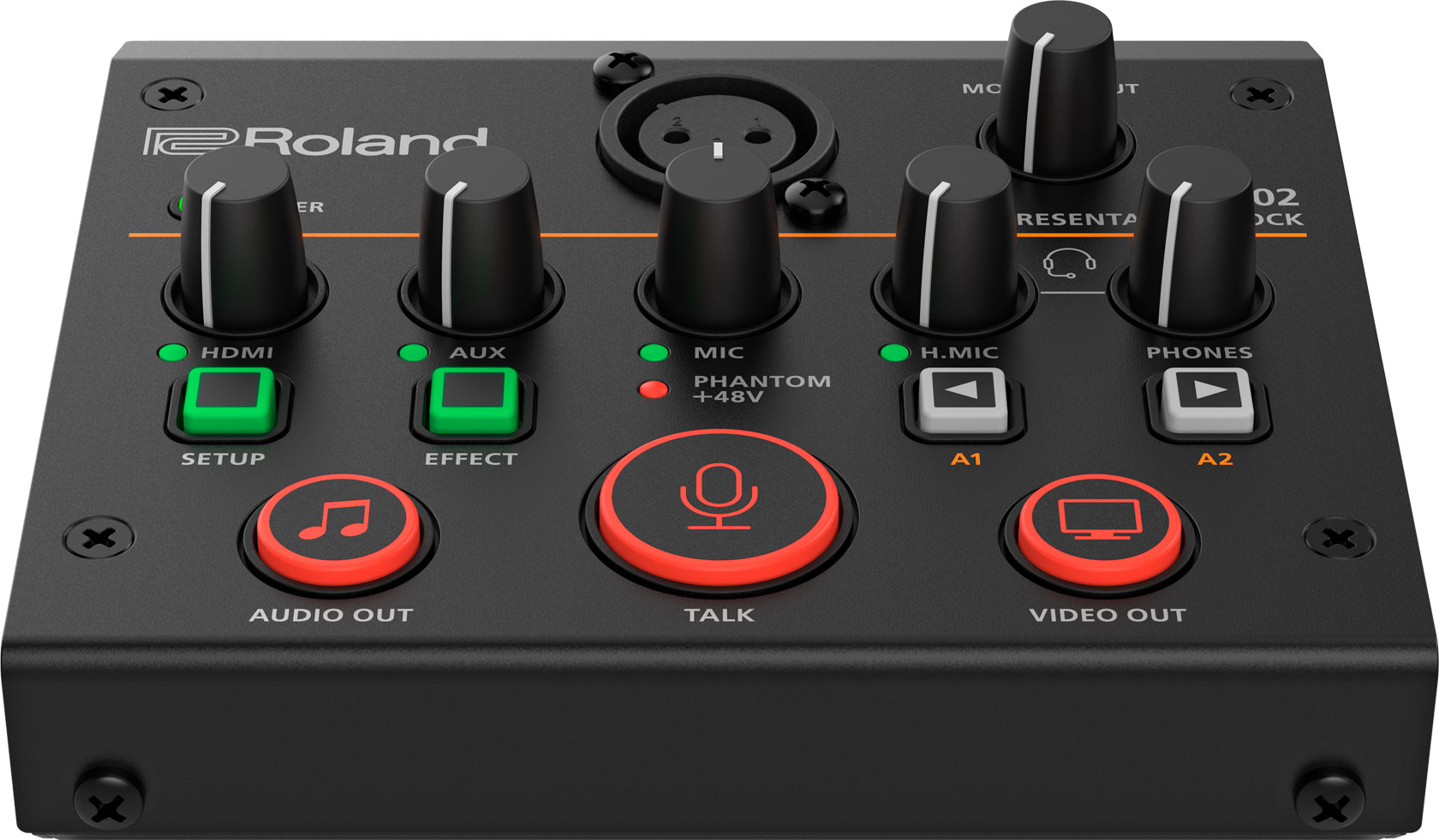

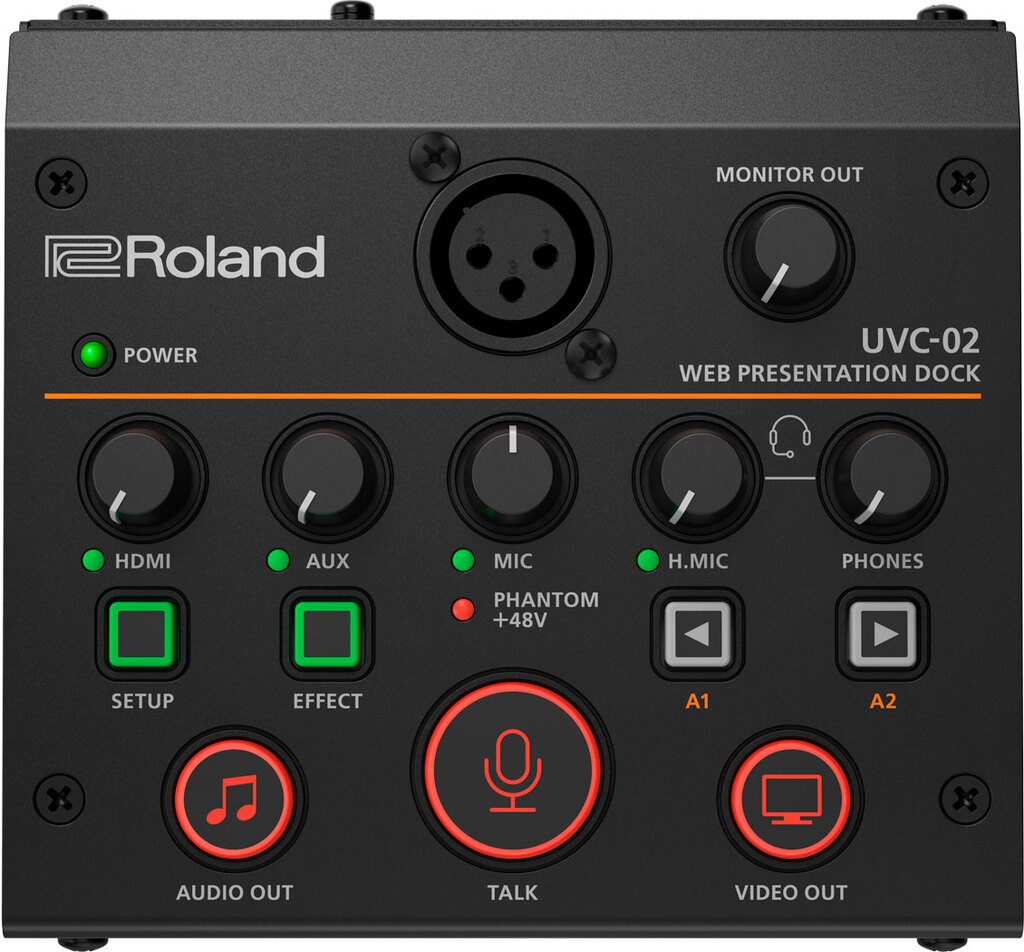

The Roland UVC-02 Web Presentation Dock provides a simple and affordable way to level up your video presentations with higher quality audio/visual gear and more control.
The UVC-02 is a compact broadcast control center that fits comfortably on your desktop. It allows you to connect a high-quality HDMI camera, pro microphone, and other audio sources and send them directly to meeting and streaming platforms on your computer via a single USB cable. And with an array of hands-on knobs and switches at your fingertips, you can easily control the action without ever touching your mouse or computer keyboard.

° Convenient and affordable desktop docking station to upgrade your business streaming with pro-level audio and video
° Inputs for a DSLR or other high-quality camera, an XLR microphone, and stereo audio sources
° HDMI video input supports embedded sound and features automatic scaling for different video resolutions
° Studio-grade sound with Roland's acclaimed digital audio technology
° Plug and play operation—automatically appears as a webcam and audio source in your favorite streaming software
° Enhance your streams with professional audio processing, sound effects, and the unique Voice Change effect
° Hands-on control of volume levels plus audio and video muting
° Assignable buttons for customizable control, configurable with free UVC-02 software for macOS and Windows


Plug In and Play
Once connected to your computer via USB, the UVC-02 is instantly recognized as a webcam and audio source, with no drivers or set up required. That means it's ready to go with popular web meeting software such as Zoom, Microsoft Teams, Webex by Cisco, or any application that uses a webcam as an A/V source for streaming or recording.
Connect just about any HDMI-compatible camera and instantly elevate the image quality over your built-in or USB webcam. Many standalone cameras offer HDMI output, from action and point-and-shoot cameras to higher-grade mirrorless and DSLR models. They have much better lenses
VIDEO_______

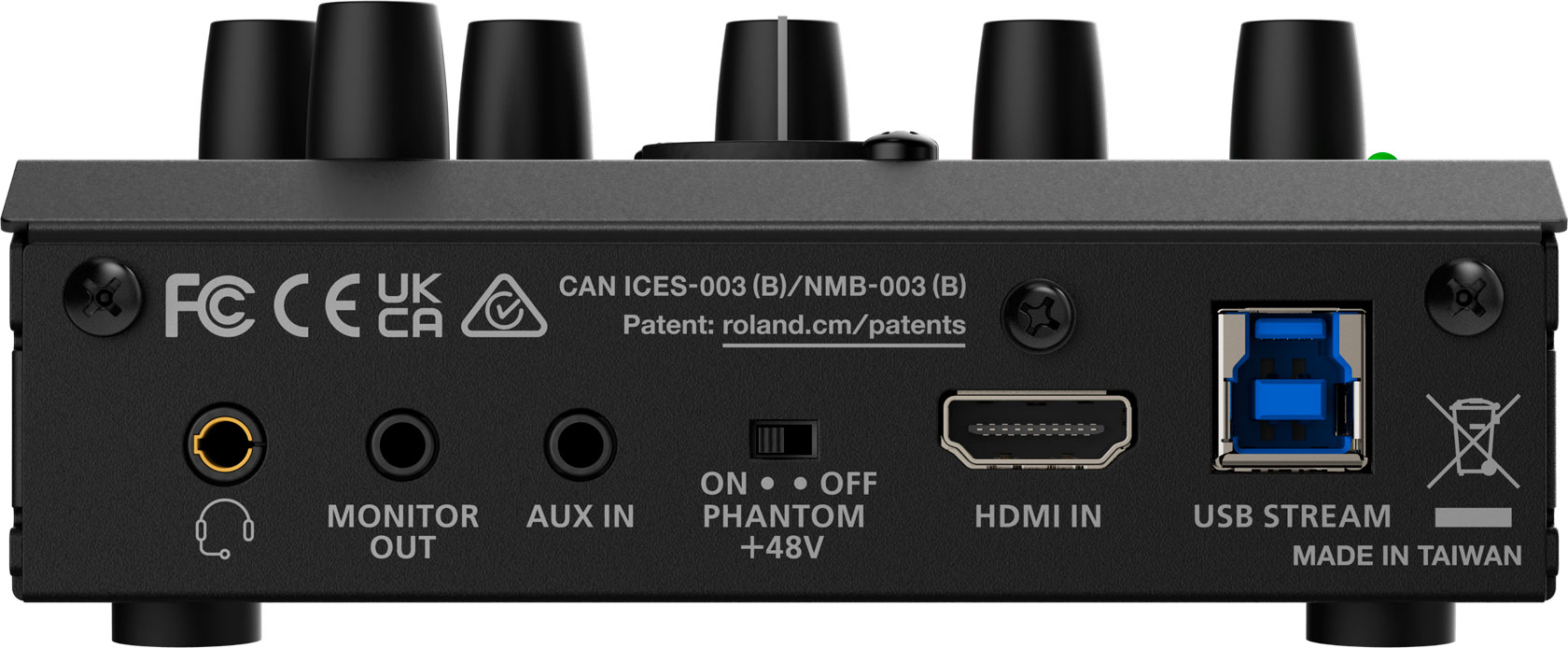

Input Connectors: HDMI IN connector: HDMI type A ( * Multi-format Supported * HDCP Not Supported)
Output ConnectorS : USB STREAM port: USB 3.0 B type
Input Formats
&emsp, 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz), &emsp, HD (1280 x 720/60 Hz), WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz), FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz), UXGA (1600 x 1200/60 Hz), FHD (1920 x 1080/60 Hz)
&emsp, USB Video Output Format : YUY2 (Uncompressed)
&emsp, USB Video Output Resolution (Max frame rate 60hZ): 1920x1200, 1920x1080, 1680x1050, 1600x1200, 1600x900, 1440x900, 1366x768, 1360x768, 1280x1024, 1280x960, 1280x800, 1280x720, 1152x864, 1024x768, 1024x576, 960x540, 856x480, 800x600, 768x576, 720x576, 720x480, 640x480, 640x360, 320x240

AUDIO_______
Audio formats
&emsp, HDMI IN connector: Linear PCM, 48 kHz / 44.1 kHz, 24 bits / 20 bits / 16 bits, stereo
&emsp, USB STREAM port: Linear PCM, 48 kHz, 16 bits, stereo
Input Connectors
&emsp, HDMI IN connector: HDMI type A
&emsp, AUX IN jack: Stereo miniature phone type
Output Connectors
&emsp, USB STREAM port: USB 3.0 B type
Nominal Input Level
&emsp, AUX IN jack: -10 dBu (Maximum input level: +8 dBu)
Input Impedance
&emsp, AUX IN jack: 10 k ohms

OTHERS_______
Power Supply : Supplied from the computer via USB
Current Draw : 500 Ma
Operation Temperature : +0 to +40 degrees Celsius
Dimensions : 90 (W) x 37 (D) x 23 (H) mm
Weight (excluding AC adaptor) : 96 g
Accessories included : Owner's Manual and USB 3.0 Cable
